180 FRONT COVER AND RELAT ED COMPONENTS
Installation
Front Cover
NOTE: If the (rear half) of a Generation 1 front
cover assembly needs to be replaced, install a new
Generation 2 front cover assembly (front and rear
half). The (rear half) of the Generation 1 front cover
assembly is not available for service.
Gaskets
H06072
2
3
1

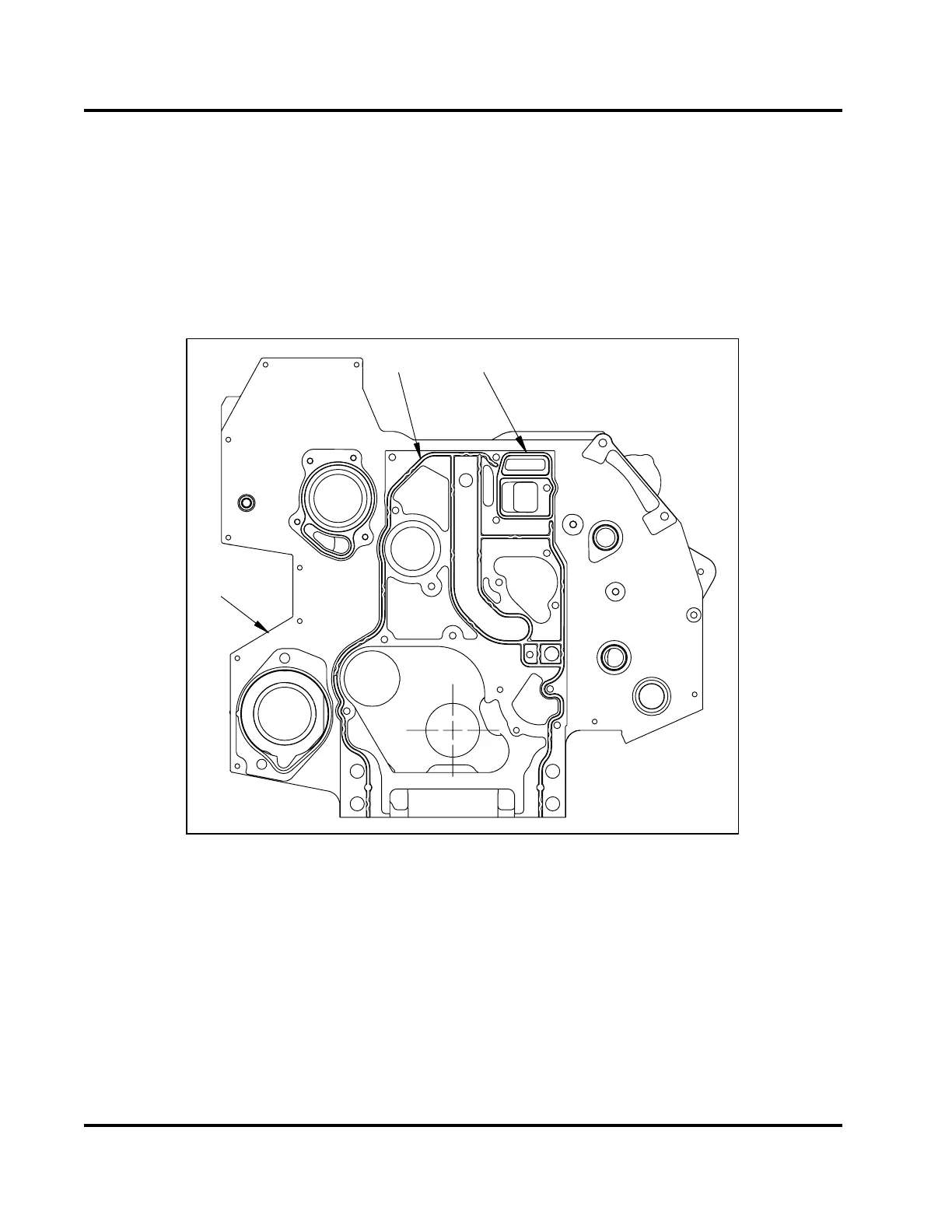

Figure 245 Front cover gaskets – rear half, crankcase side
1. Front cover assembly (rear half,
crankcase side)
2. Oil gasket
3. Coolant gasket
1. Install a new oil gasket onto the crankcase side of
the front cover (rear half).
2. Install a new coolant gasket onto the crankcase
side of the front cover (rear half).
EGES-265-2
