64 MOUNTING ENGINE ON ENGINE S TAND
Engine
1. Remove oil system module and oil cooler drain
tube as an assembly from crankcase and discard
O-rings. The oil cooler drain tube is trapped
between the oil system module and the front
cover.
2. Raise or lower engine to approximate height of
Engine Stand (Table 4).
3. Align engine stand and Engine Mounting Plate
(Table 4) to engine, rotating stand and / or raising
engine to match adapter plate. Secure one bolt
and rotate stand if necessary to thread remaining
bolts.
4. Use metric grade 10.9 bolts to secure engine to
Engine Mounting Plate (Table 4). Tighten bolts
to the standard torque value (General Torque
Guidelines, page445).

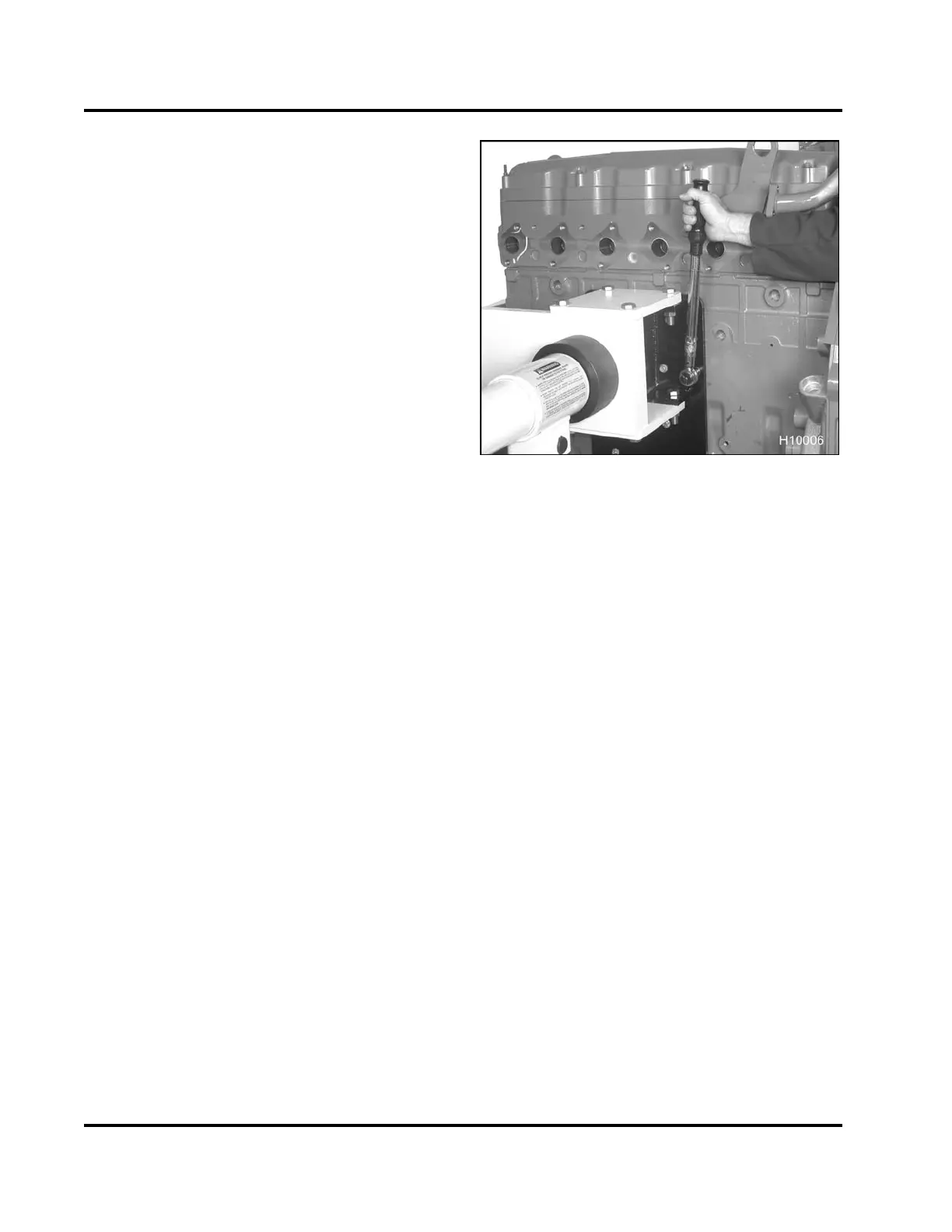

Figure 56 Torquing engine mounting bolts
5. Slowly release tension from engine hoist.
6. remove hoist safety chain hooks from engine
lifting eyes.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
