OIL PAN AND OIL SUCTION TUBE 209
4. Torque bracket bolt (M10 x 25) to the special
torque value (Table 23).
Installing the Oil Pan
12
3
4
54
6
4
4
4
4
H06031
(x 6)

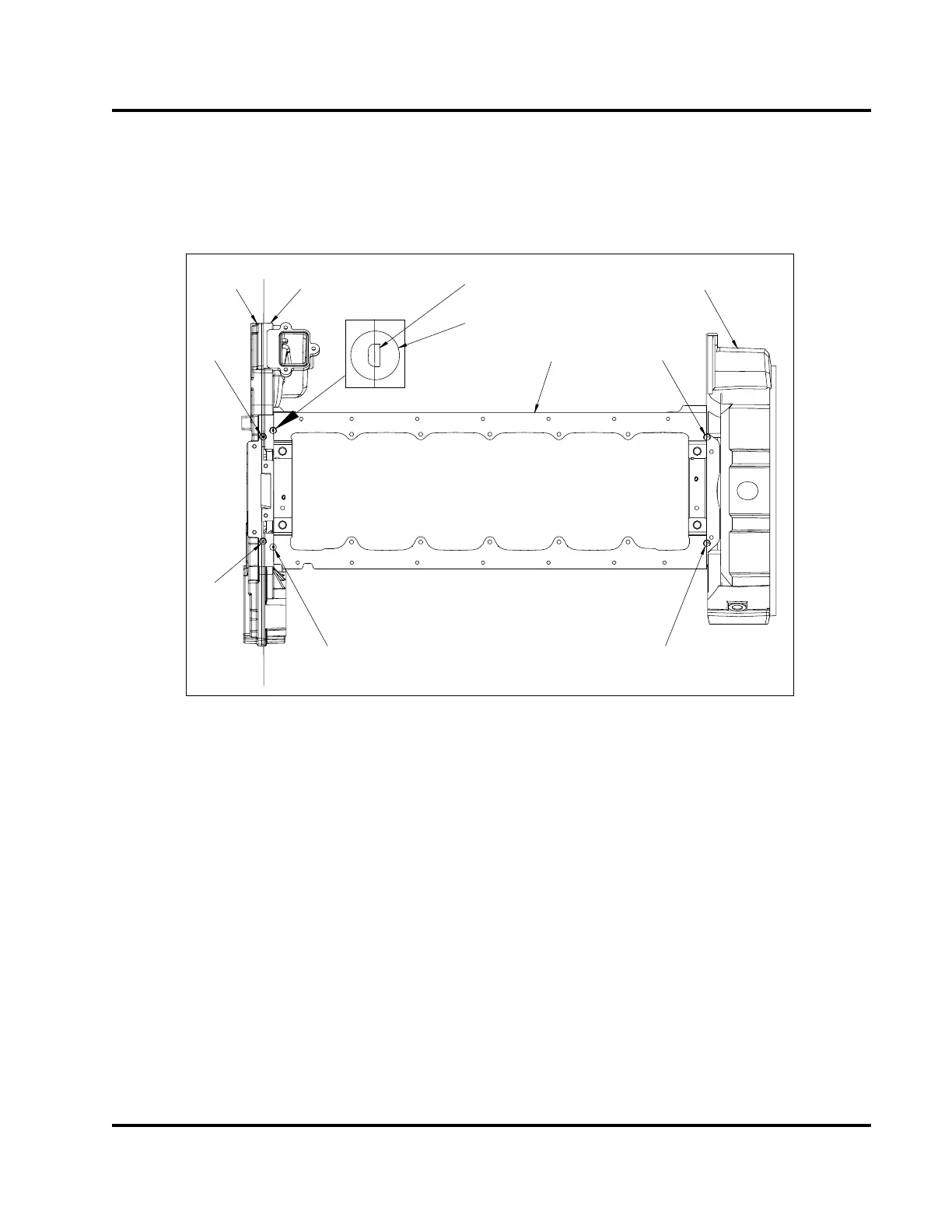

Figure 292 RTV sealant locations – see inset (typical)
1. Front cover (front half)
2. Front cover (rear half)
3. Gasket
4. Sealant, Wacker T-442, (6
locations)
5. Crankcase
6. Flywheel housing
1. Apply a circular dab of T-442 Wacker RTV
sealant (Table 24) approximately 19 mm (0.75 in)
in diameter to the six locations on the crankcase
mounting surface. These locations coincide with
gasket joints between the front cover halves,
crankcase, and flywheel housing.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
