ENGINE SYSTEMS 25
Fuel Managem ent System
Fuel M anagement Components

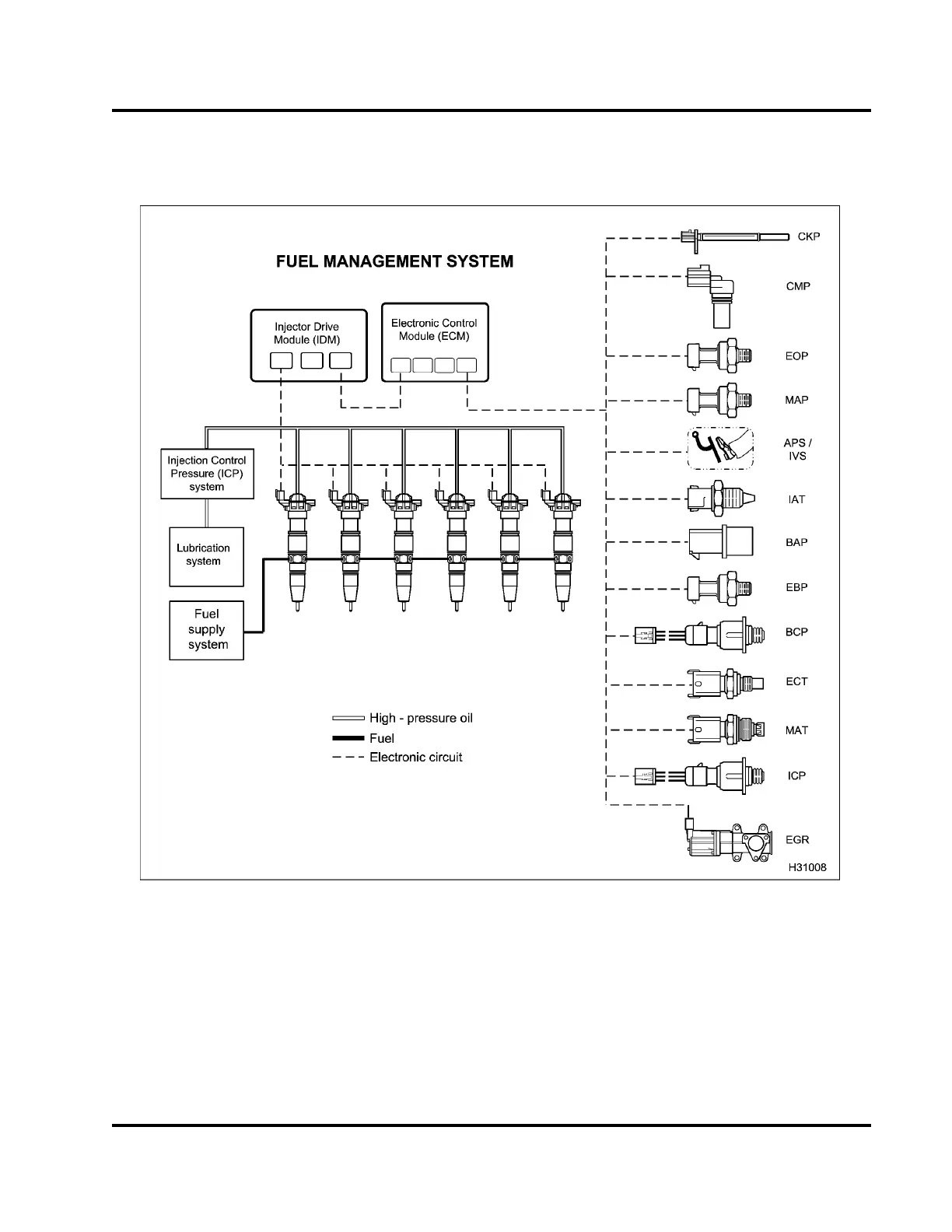

Figure 19 Fuel management system
The fuel management system includes the following:
• Injection Control Pressure (ICP) system
• Fuel supply system
• Fuel injectors
• Lubrication system
• Electronic control system
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
