OIL SYSTEM MODULE A SSE MBLY A ND SECONDARY FILTRATION 295
Assembling the Secondary Filtration Filter

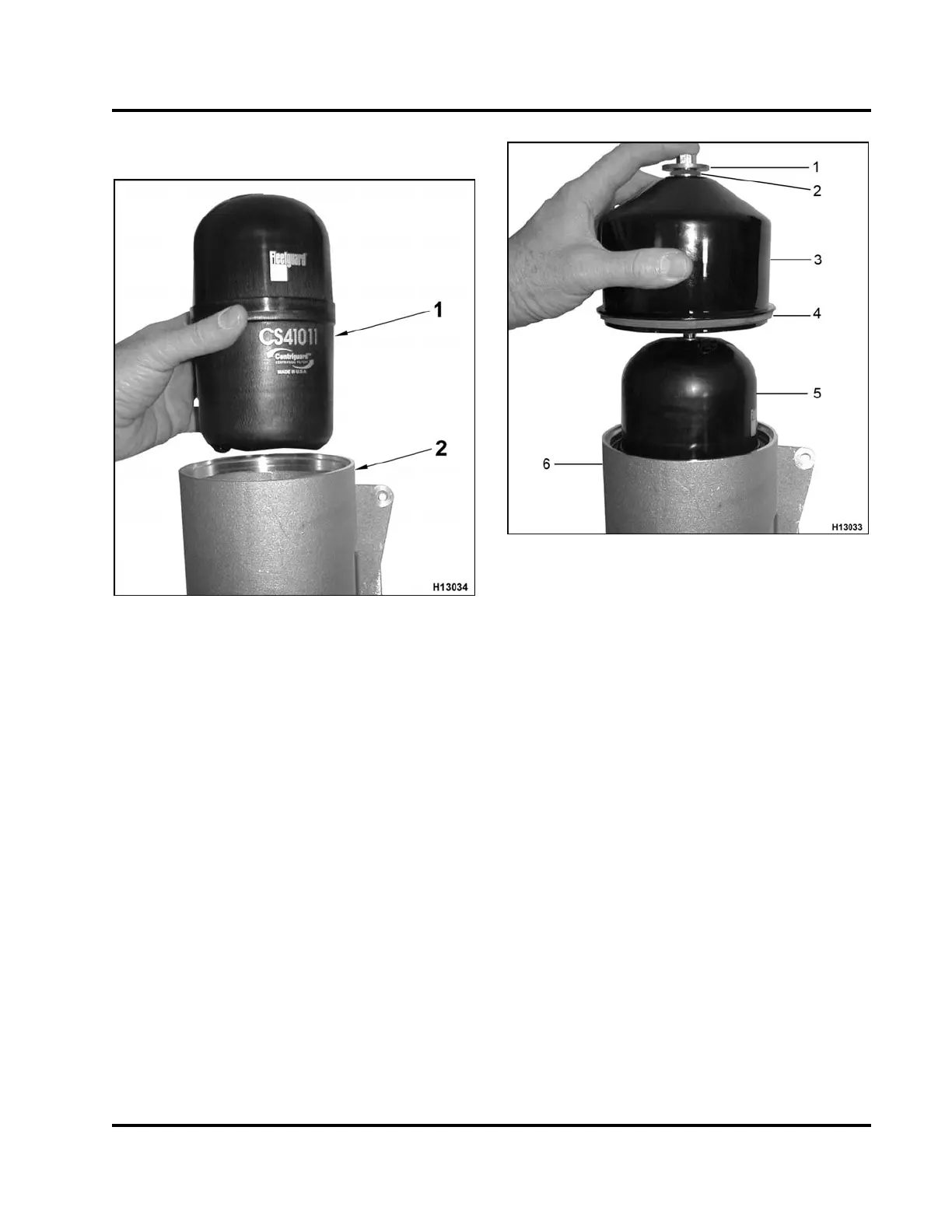

Figure 432 Secondary filter installation
1. Filter element
2. Filter header
1. Install a new secondary oil filter.
Figure 433 Secondary filter components
1. Stud assembly
2. O-ring
3. Cover
4. O-ring Gasket
5. Filter element
6. Filter header
2. Place a new O-ring gasket onto filter cover.
3. Position cover onto filter header.
4. Place a new O-ring onto stud assembly and
thread into top of secondary filter cover and
tighten to the special torque value (Table 42).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
