FRONT COVER AND RELATED COMPONENTS 179
1. Coat outer rotor with oil and install rotor in oil pump
and rotor housing.
2. Check oil pump side clearance Specification
(Table 19) and choose the appropriate thickness
feeler gauge (Table 21).
3. Insert feeler gauge between the oil pump and rotor
housing and outer rotor.
4. Replace oil pump and rotor assembly if not within
specification.

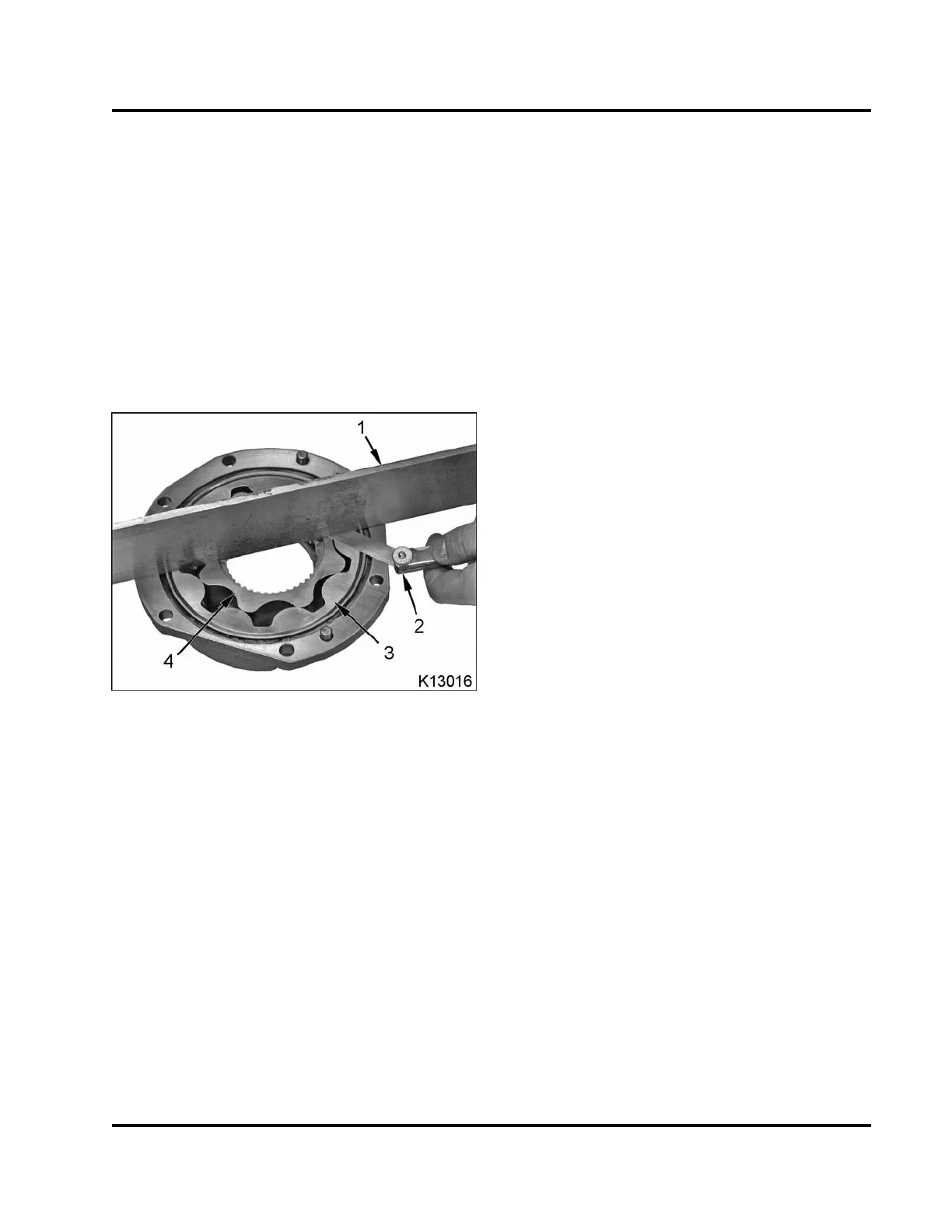

Measuring Oil Pump End Clearance
Figure 244 Oil pump end clearance
measurement
1. Straightedge
2. Feeler gauge
3. Outer rotor
4. Inner rotor
1. Place a straightedge (Table 21) across the oil
pump mounting surface.
2. Check oil pump end clearance Specification
(Table 19) and choose the appropriate thickness
feeler gauge (Table 21).
3. Slide feeler gauge between the straightedge and
the oil pump inner and outer rotors.
4. Replace oil pump and rotor assembly if not within
specification.
