FLYWHEEL AND FLYWHEEL HOUSING 381
Rear Oil Seal

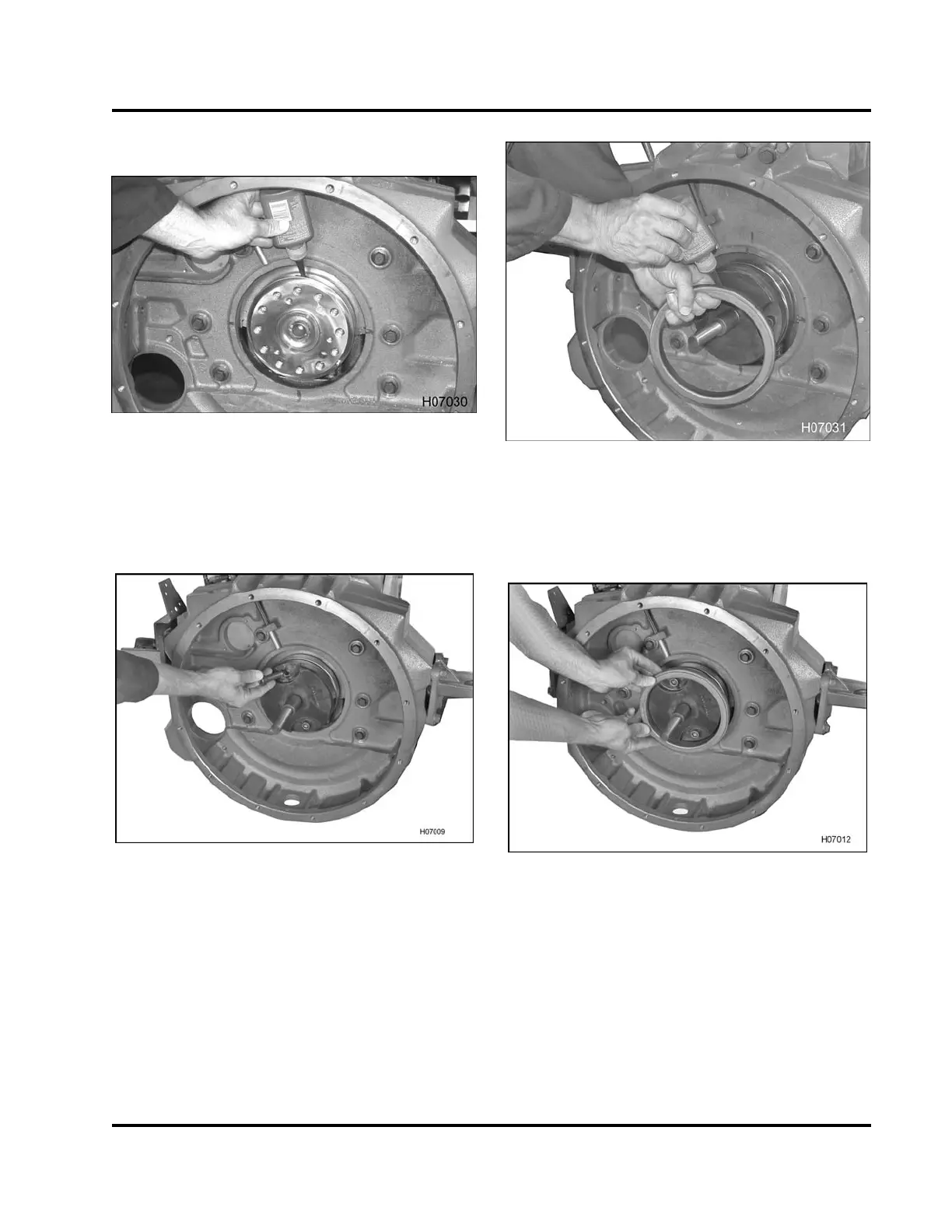

Figure 603 Applying sealant to the crankshaft
and seal assembly
1. Apply a 360° bead of Loctite® hydraulic sealant
to the crankshaft where the rear oil seal assembly
will be positioned.
Figure 604 Installin
g the rear oil seal installer
base
2. Install base comp
onent of oil seal installer onto
crankshaft and ti
ghten bolts (2).
Figure 605 Applying sealant to the seal
assembly
3. Apply a 360° bead of Loctite® hydraulic sealant to
the outside diameter of the rear oil seal assembly.
Figure 606 Placing oil seal onto rear oil seal
installer base
4. Orient steel face of oil seal outward (towards
transmission) and start seal onto oil seal installer
base.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
