ENGINE SYSTEMS 43
Electronic Control System
Electronic Control System Components

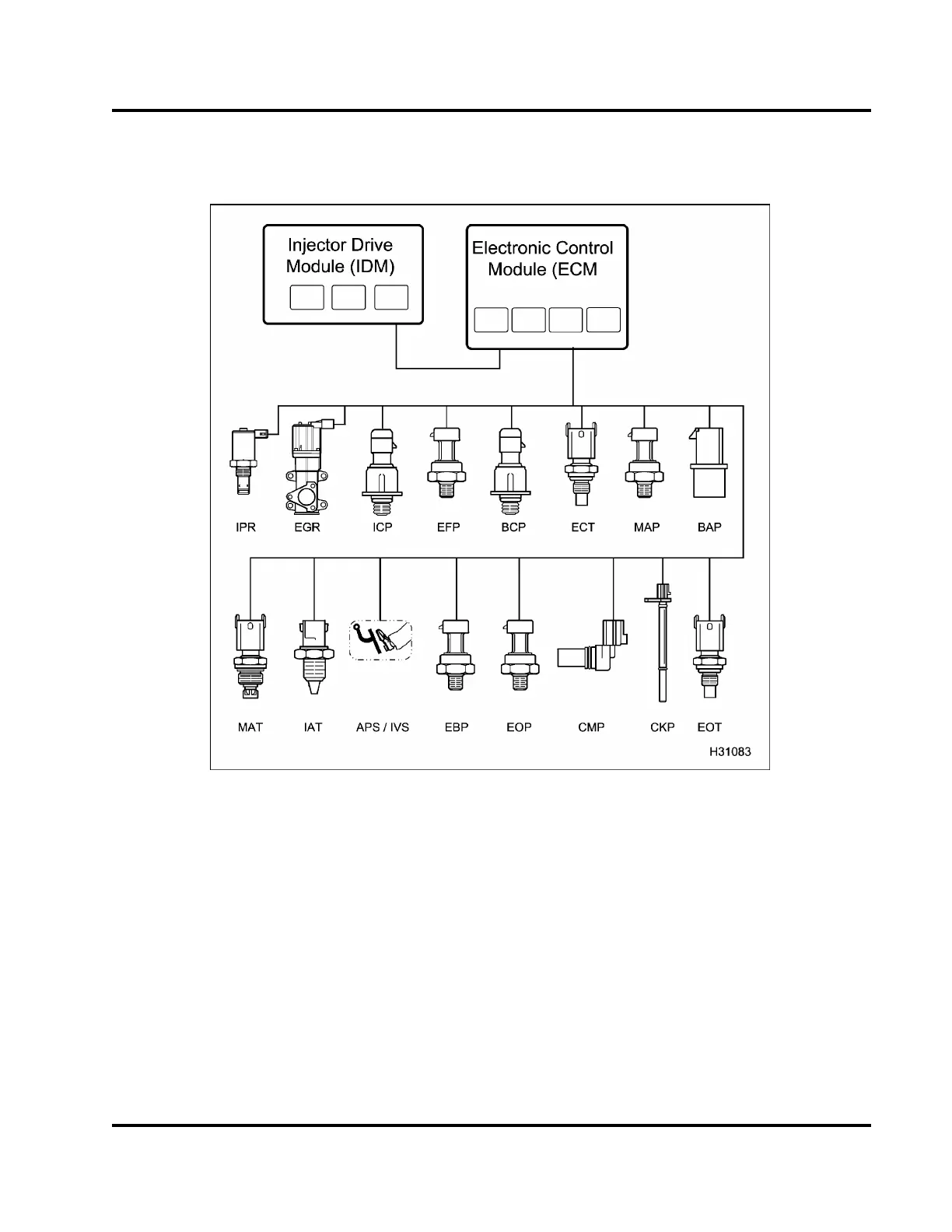

Figure 37 Electronic Control System
Operation and Function
The Electronic Control Module (ECM) monitors and
controls engine performance to ensure maximum
performance and adherence to emissions standards.
The ECM has four primary functions:
• Provides Reference Voltage (V
REF
)
• Conditions input signals
• Processes and stores control strategies
• Controls actuators
1. Re ference voltage (V
REF
)
TheECMsuppliesa5voltV
REF
signal to input sensors
in the electronic control system. By comparing
the 5 volt V
REF
signal sent to the sensors with their
respective returned signals, the ECM determines
pressures, positions, and other variables important to
engine and vehicle functions.
The ECM supplies two independent circuits for V
REF
:
•V
REF
A supplies 5 volts to engine sensors
•V
REF
B supplies 5 volts to vehicle sensors
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
