42 ENGINE SYSTEMS

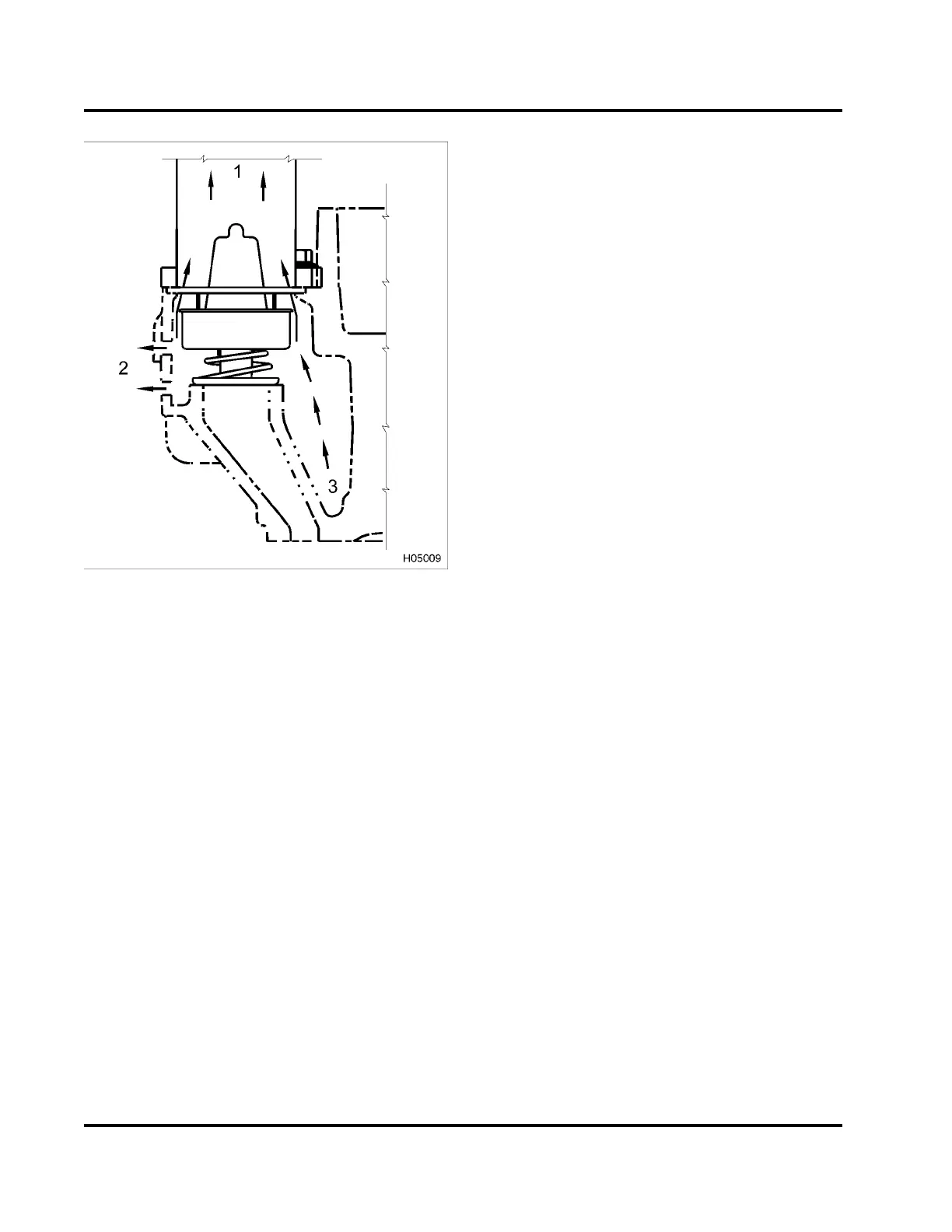

Figure 36 Thermostat open
1. Coolant out to radiator
2. Coolant flow to heater port
3. Coolant in from engine
When coolant temperature reaches the nominal
opening temperature at 88 °C (190 °F), the thermostat
opens allowing some coolant to flow to the radiator.
When coolant temperature exceeds 96 °C (205 °F),
the lower seat blocks the bypass port directing full
coolant flow to the radiator.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
