96 EGR COOLER AND TUBING

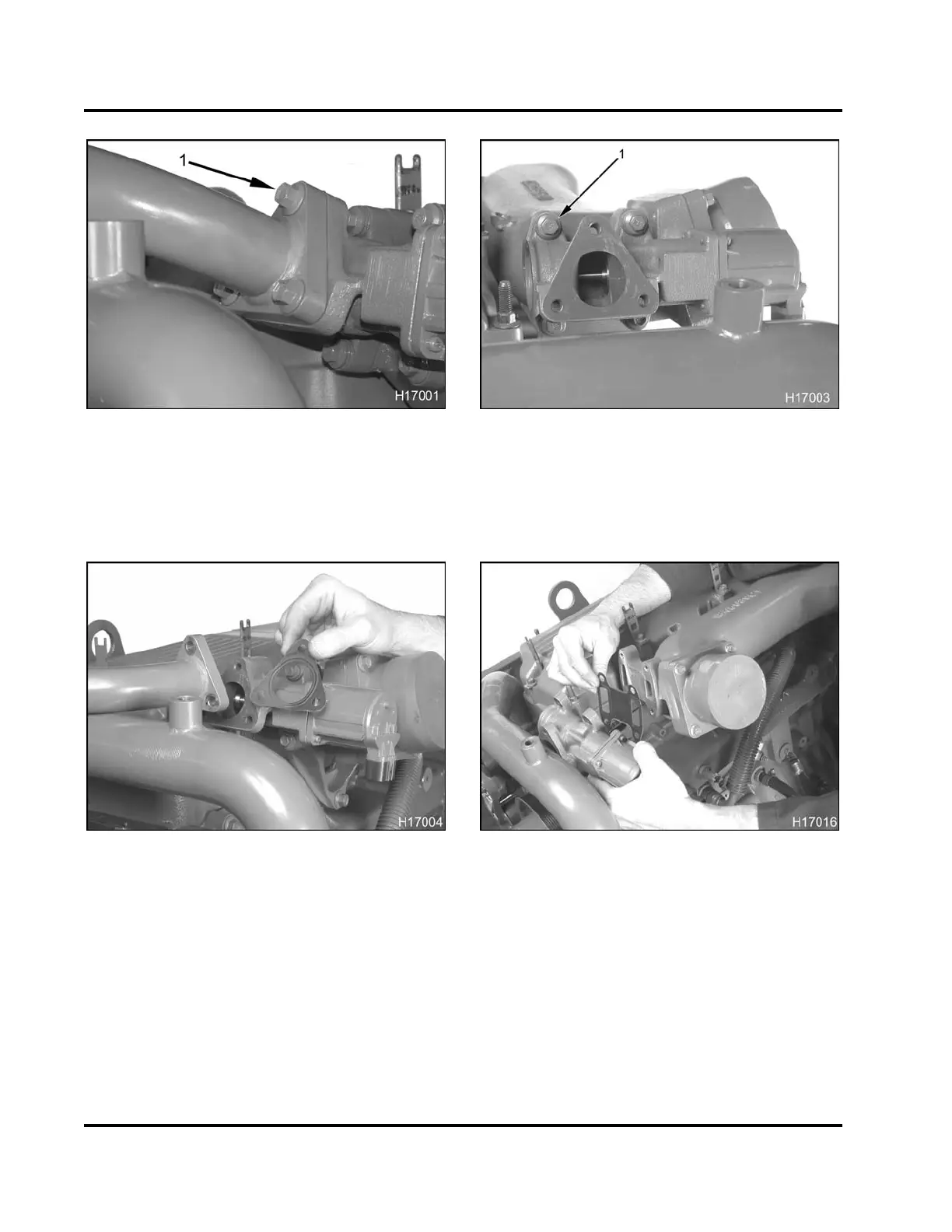

Figure 91 E GR tube assembly at EGR valve
1. Bolt, M8 x 25 (3)
3. Remove three bolts (M8 x 25) securing the EGR
tube assembly at the EGR valve assembly.
Figure 92 Removing the E
GR tube assembly
gasket
4. Remove EGR tube asse
mbly and discard gasket.
5. Disconnect wiring h
arness connector at EGR
valve assembly.
Figure 93 EGR valve retaining bolts
1. Bolt, M8 x 35 (4)
6. Remove four bolts (M8 x 35) securing the EGR
valve assembly to the EGR mixer duct.
Figure 94 Removing the E
GR valve to EGR
mixer gasket
7. Remove and discard g
asket between EGR valve
assembly and EGR mix
er.
NOTE: Do not attempt
to remove the EGR cooler
supply tube from th
e engine until the EGR cooler
assembly has been r
emoved. The EGR cooler supply
tube is trapped be
tween the EGR cooler and the rear
half of the front
cover.
