Navistar INTERNATIONAL DT 466 Service Manual

EGR COOL ER AND TUBING 97

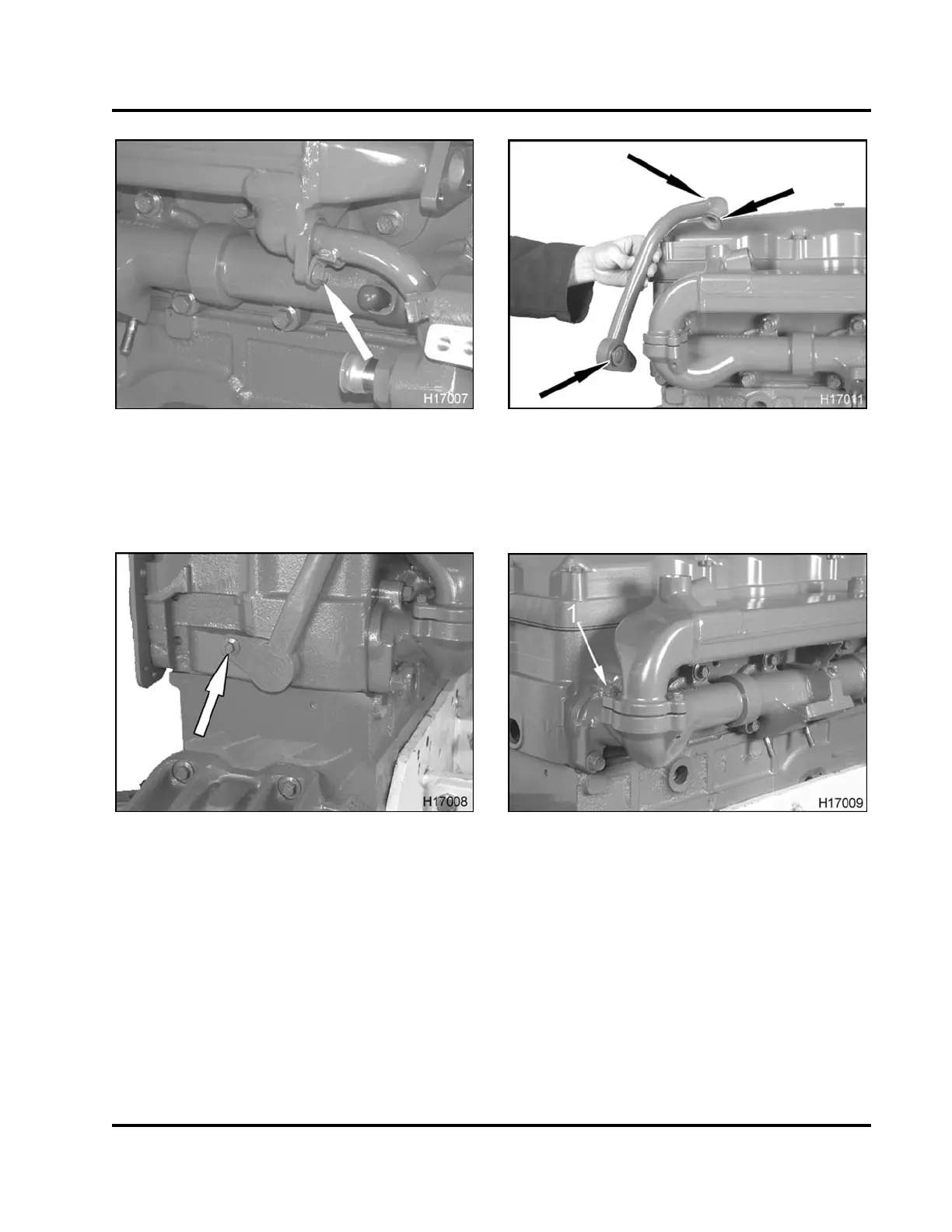

Figure 95 EGR cooler supply tube assembly
retaining bolt
8. Remove the EGR cooler supply tube assembly
retaining bolt (M8 x 16).
Figure 96 EGR cooler return tube assembly
retaining bolt
9. Remove the EGR cooler return tube assembly
retaining bolt (M8 x 25).
Figure 97 EGR cooler return tube and elbow
O-rings
10. Remove the EGR cooler return tube assembly
and elbow from engine and discard all O-rings.
Figure 98 EGR cooler retaining bolts at exhaust
manifold
1. Bolt, M8 x 30 (2)
11. Remove two bolts (M8 x 30) retaining the EGR
cooler to the exhaust manifold.
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
