194 FRONT COVER AND RELAT ED COMPONENTS
H05027
12
3
6
21
7
4
4
5

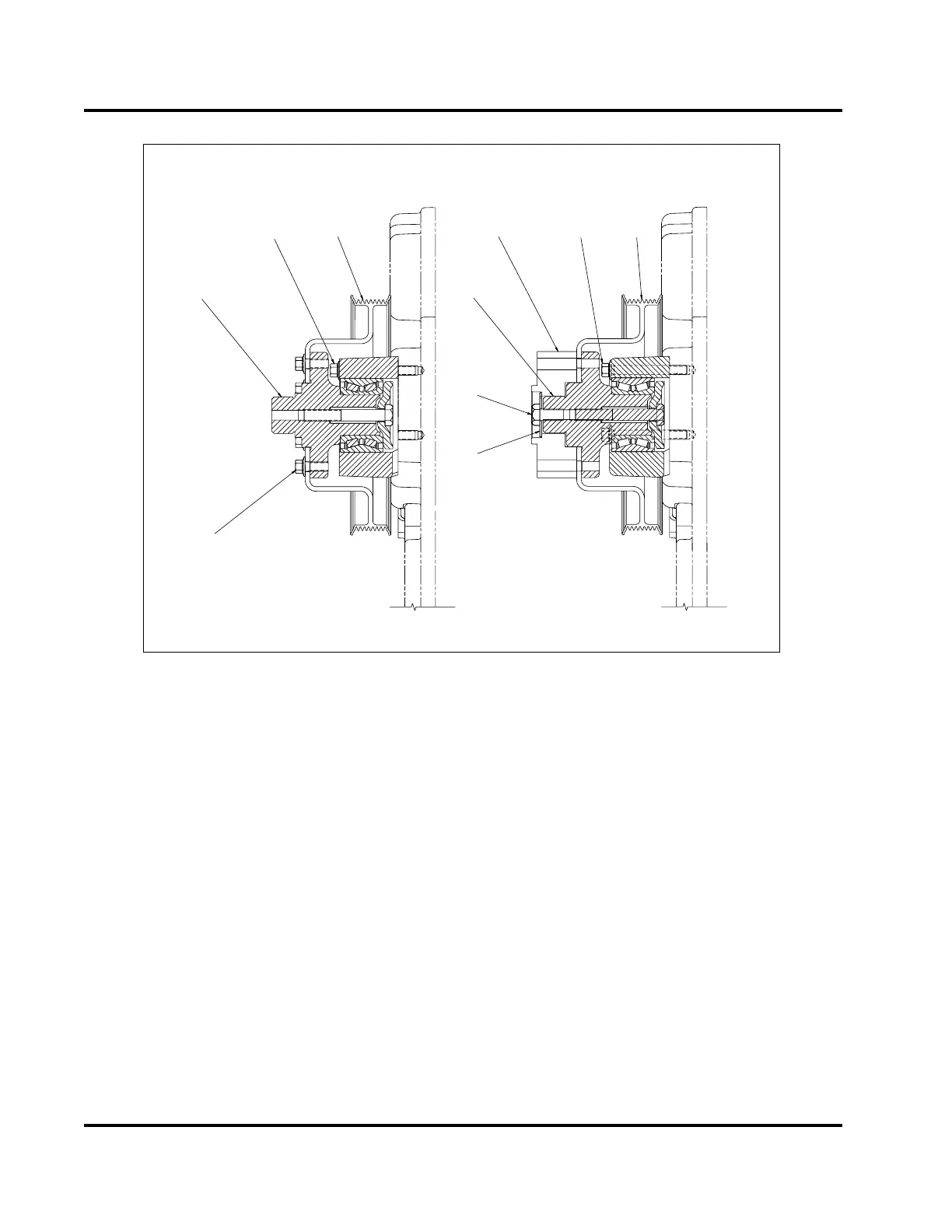

Figure 268 Spin-on fan drive (left) and bolt-on fan drive (right)
1. Fan pulley
2. Bolt, M8 x 65 (4)
3. Fan spacer
4. Fan hub assembly
(cross-hatched)
5. Bolt, M10 x 20
6. Spacer retainer washer
7. Bolt, M8 x 20 (6)
3. Install the fan pulley and spacer as required for
application.
EGES-265-2
