104 EGR COOLER AND TUBING

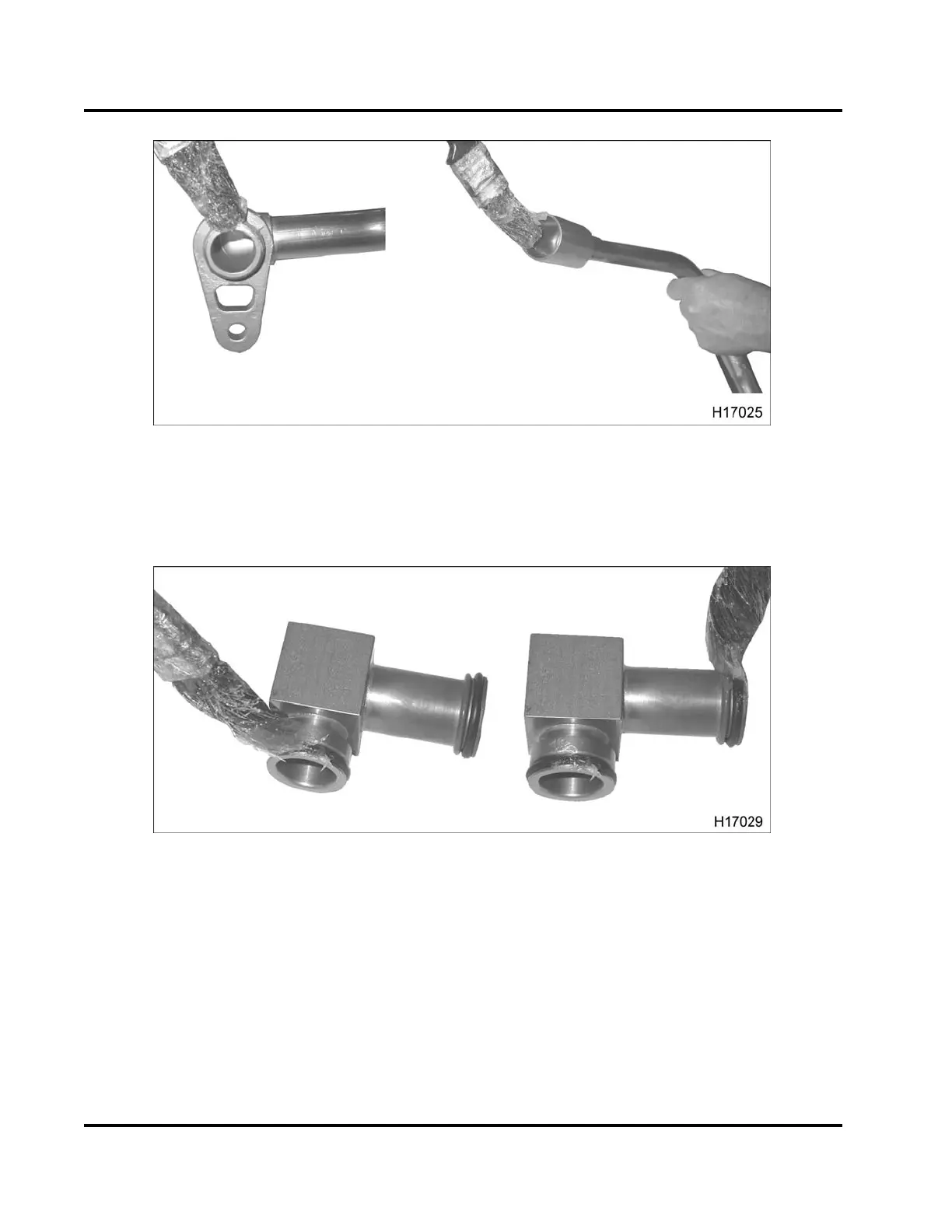

Figure 116 Brushing lubricant and sealant onto pilot end (left) and adapter end of EGR coolant
return tube (right)
2. Using P-80 or equivalent, lubricate the pilot O-ring
on one end and the adapter on the other end.
Figure 117 Lubricating both ends of the EGR cooler elbow
3. Using P-80 or equivalent, lubricate both O-rings
on the EGR cooler elbow.
EGES-265-2
