EGR COOL ER AND TUBING 113

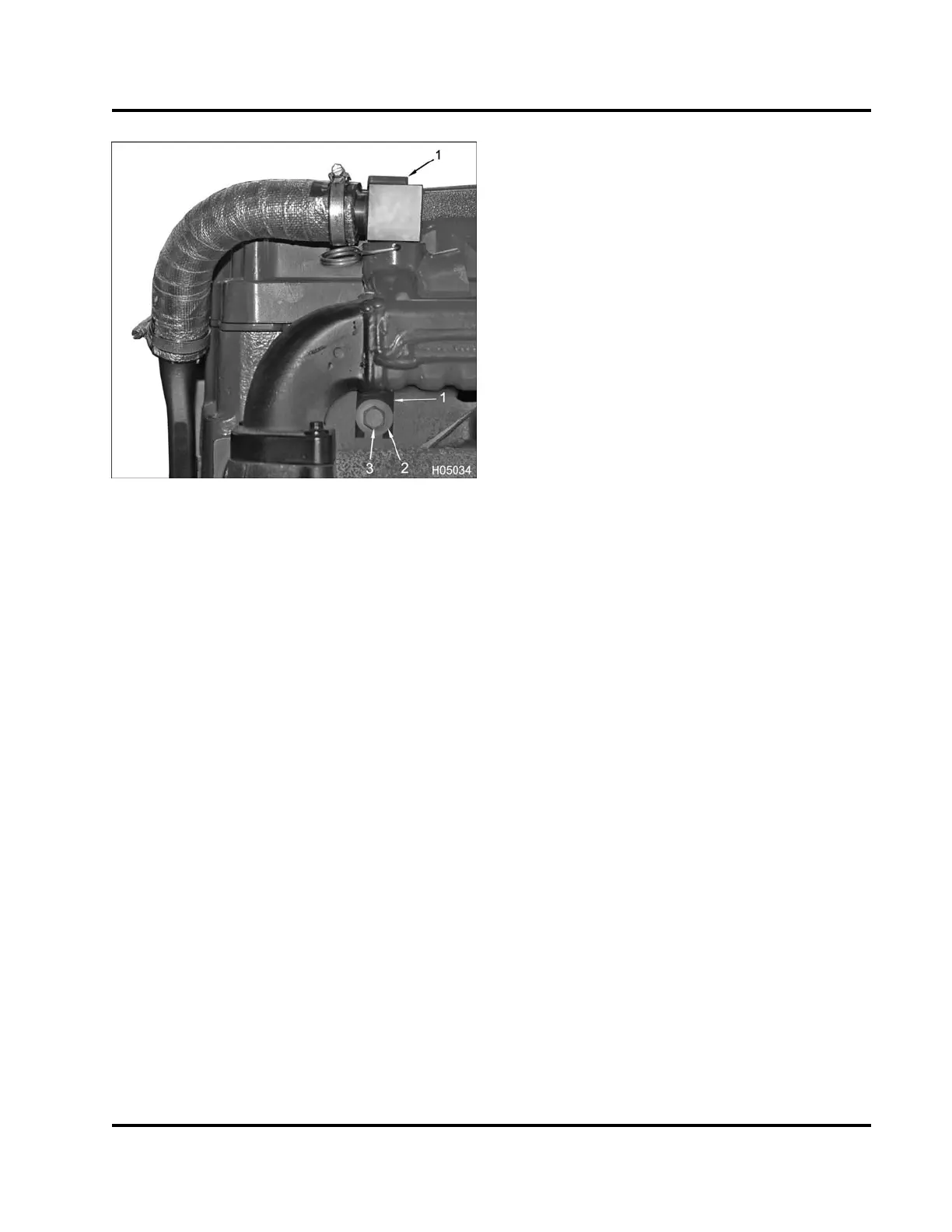

Figure 134 EGR cooler return bracket
1. EGR tube bracket
2. Flat washer, 3/8 in
3. Bolt, M10 x 1.5 x 25 mm
11. Position EGR cooler return bracket between
cylinder head and EGR cooler.
12. Install 3/8 in flat washer and M10 Bolt.
13. Tighten M10 bolt to the standard torque (General
Torque Guidelines, page445).
14. Refill engine cooling system.
15. Start engine and let engine warm up to operating
temperature.
16. Shut down engine and let engine cool to ambient
air temperature.
17. Retighten constant tension EGR hose clamps to
special torque (Table 10).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
