CYLINDER HEAD AND VALVE TRAIN 137

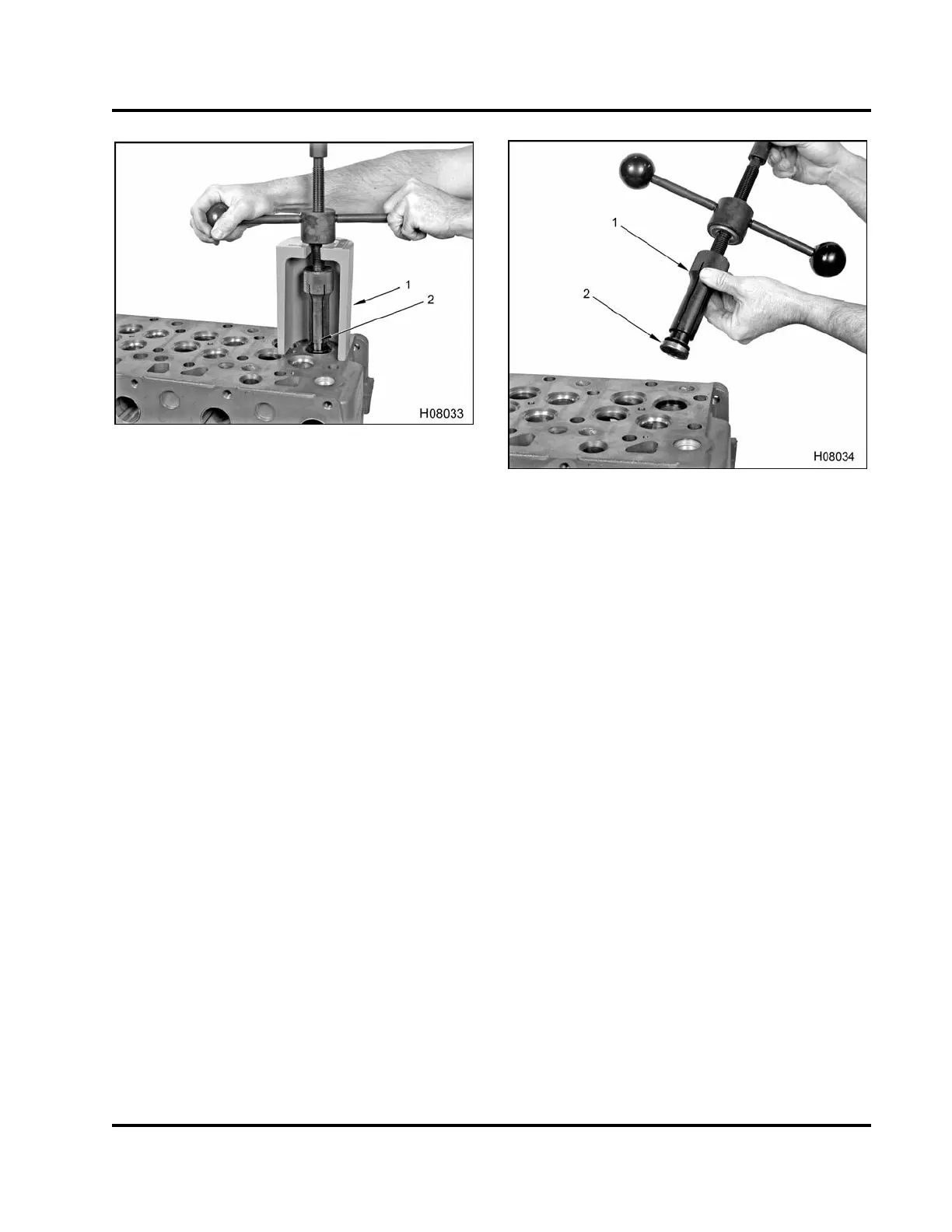

Figure 180 Removing the valve seat insert
1. Lifting bridge
2. Valve seat remover (collet)
3. Expand collet by threading the shaft into the valve
seat remover until it is tight inside the valve seat.
Turn T-handle on shaft to pull the valve seat insert
from cylinder head.
Figure 181 Valve seat insert removed
1. Collet
2. Valve seat insert
4. Unlock the collet by loosening the threaded shaft.
Discard valve seat insert.
EGES-265-2
