Navistar INTERNATIONAL DT 466 Service Manual

OIL PAN AND OIL SUCTION TUBE 205
1
2
3
4
5
7
8
9
6
12
11
10
H06040

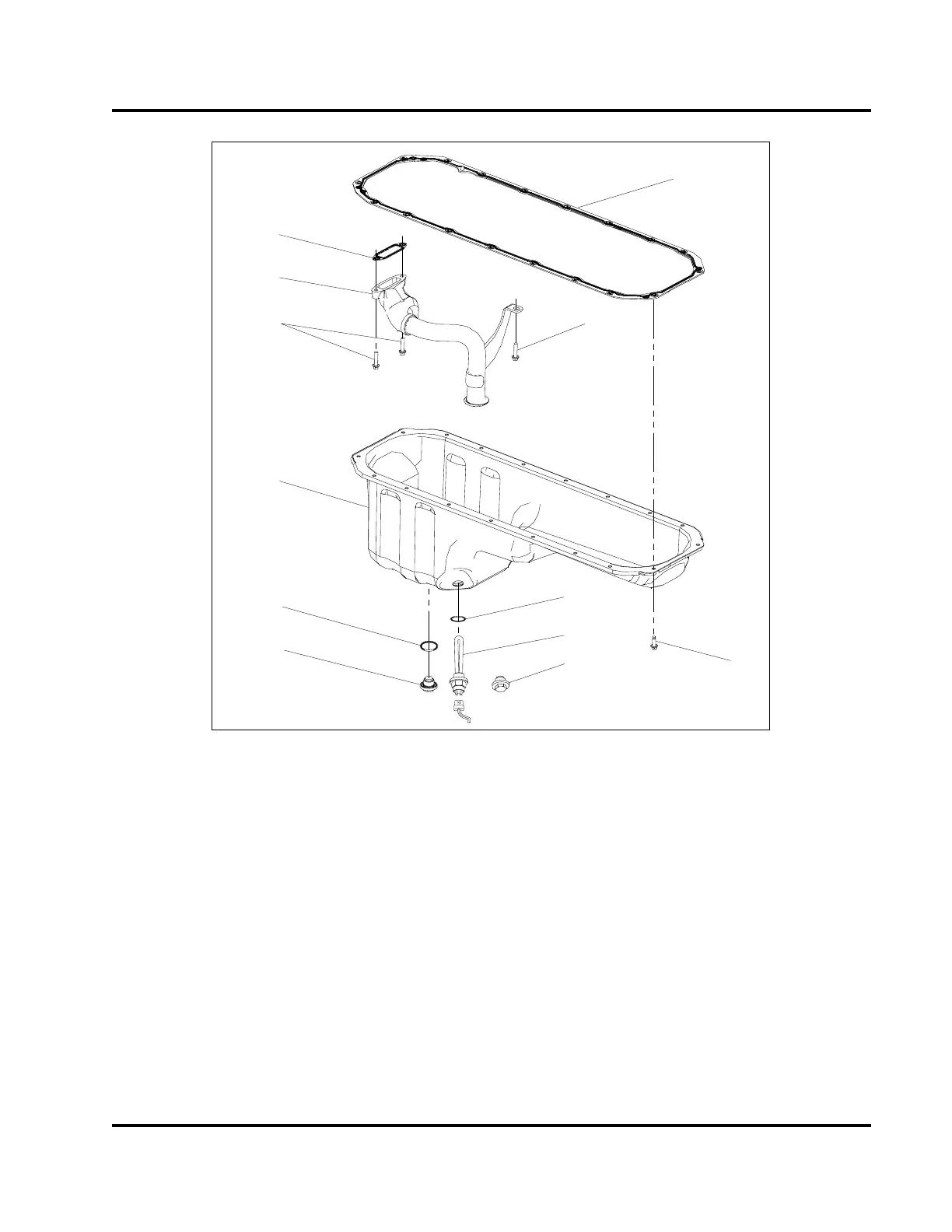

Figure 283 Oil pan and o
il suction tube components
1. Oil suction tube gask
et
2. Oil pan gasket
3. Bolt, M10 x 25 (1)
4. Bolt, M8 x 24 (18)
5. Heater element gasket
6. Oil heating element a
ssembly
(optional)
7. Plug (without oil pa
nheater)
8. Oil drain plug
9. Oil drain plug gasket
10. Oil pan (typical)
11. Bolt, M8 x 35 (2)
12. Oil suction tube asse
mbly
(typical)
EGES-265-2
