CRANKCASE, CRANKSHAFT, AND CAMSHAFT 265
1
1
2
2
3
4
5
H06093

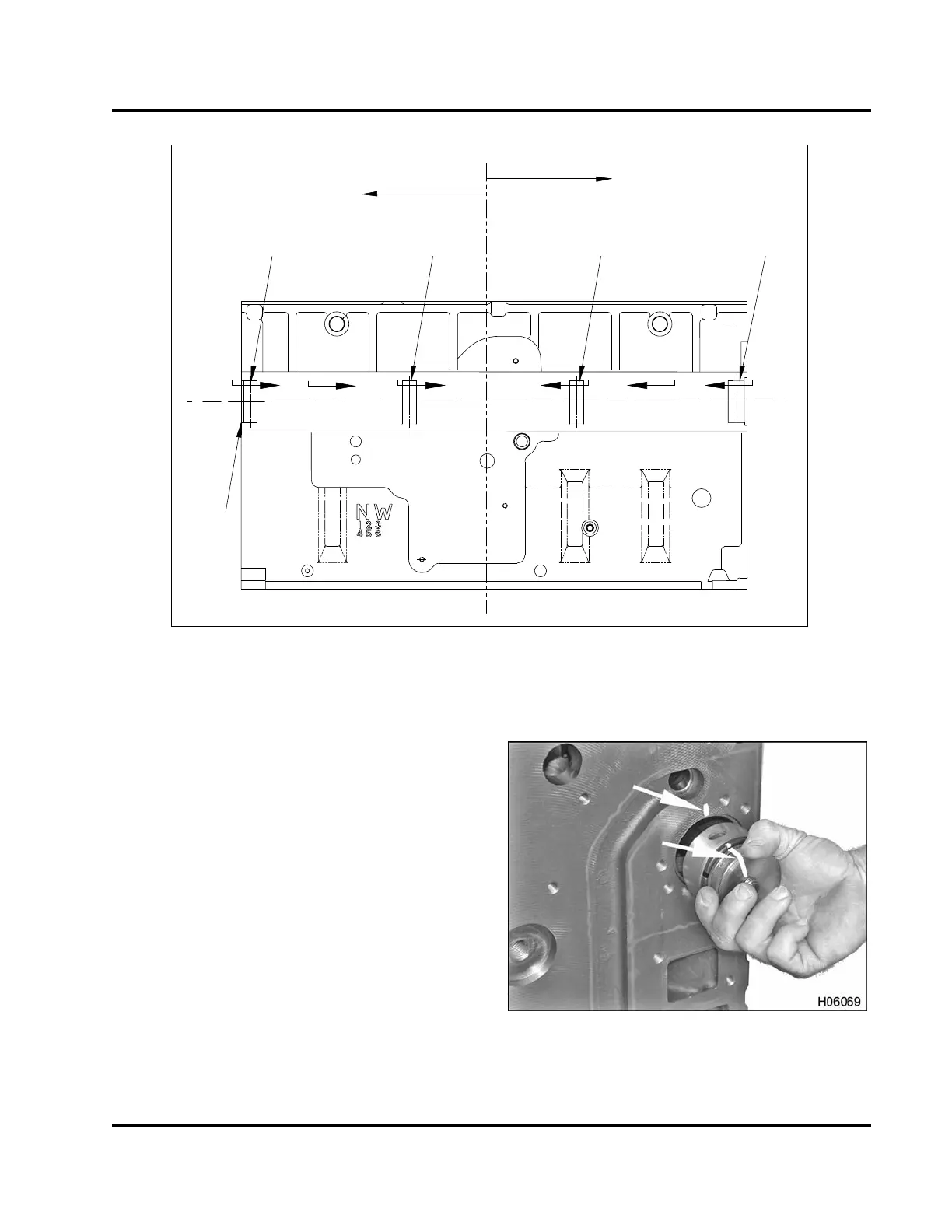

Figure 379 Pulling direction for camshaft bushing installation
1. Intermediate bushings
2. Front and rear bushings
3. Rear half of engine
4. Fronthalfofengine
5. Camshaft seal ring
5. Install the rear intermediate bushings through
the rear of the crankcase. Pull the bushing into
place from the front of the crankcase by turning
the pulling nut on the puller screw. Remove the
installation tool and inspect the oil hole alignment.
6. Install the front intermediate bushing through
the front of the crankcase. Pull the bushing into
place from the rear of the crankcase by turning
the pulling nut on the puller screw. Remove the
installation tool and inspect oil hole alignment.
Figure 380 Paint marks indicating oil hole
alignment
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
