OIL SYSTEM MODULE A SSE MBLY A ND SECONDARY FILTRATION 297
2
1
3
4
5
6
7
8
11
H13035
5
9
10

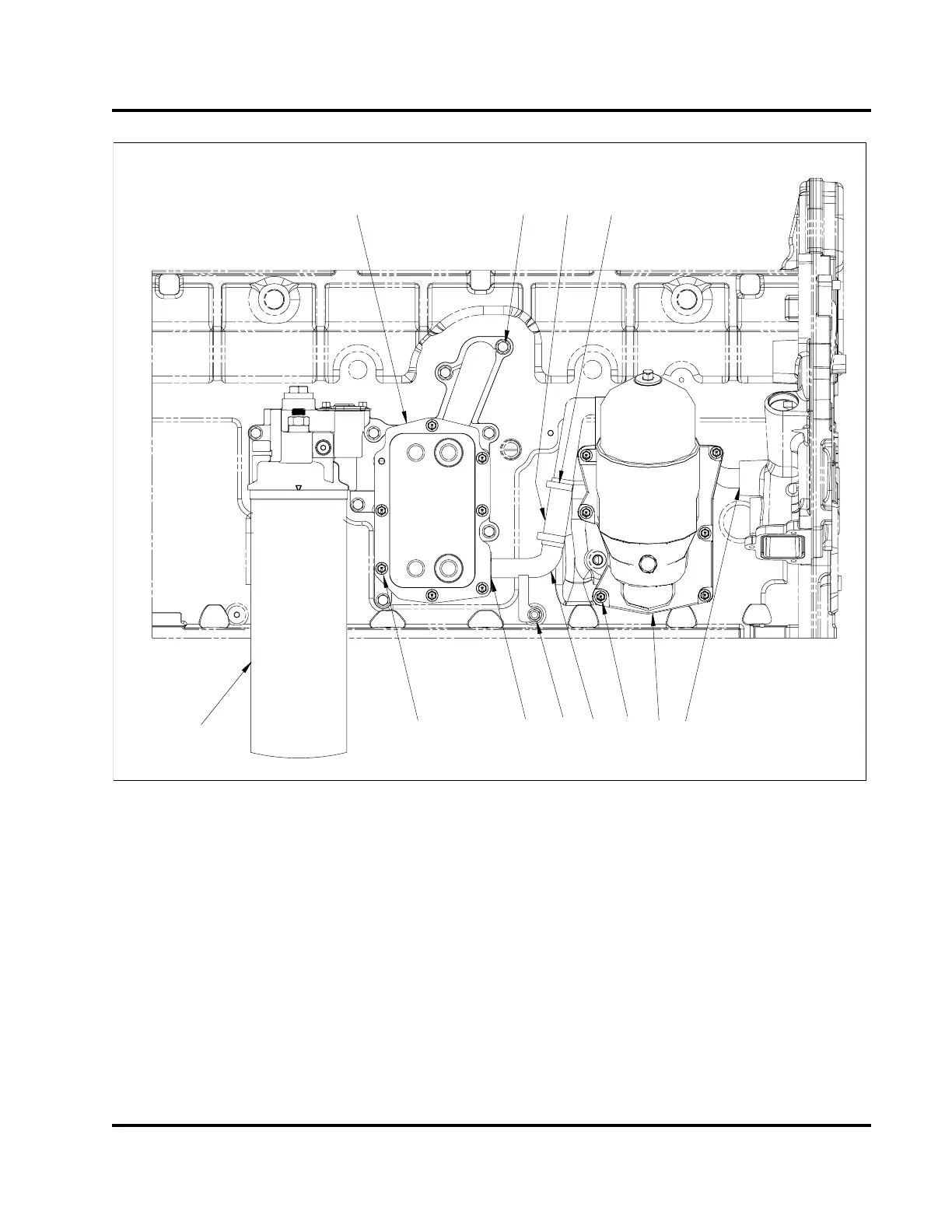

Figure 436 Oil system module and secondary filter assembly
1. Oil system module assembly
2. Bolt, M8 x 30 (8)
3. Hose, 1 in O.D.
4. Hose clamp (2)
5. O-ring (2)
6. Secondary filtration filter
assembly
7. Bolt, M8 x 25 (6)
8. Oil cooler drain tube assembly
9. Support bracket bolt, M8 x 16
10. Bolt, M8 x 20 (8)
11. Oil filter (spin-on)
4. Make sure a new O-ring has been installed onto
the oil cooler drain tube. Slide tube into front side
of oil cooler and position a support bracket bolt
(M8 x 16) through bracket and into crankcase.
Torque both oil cooler drain tube bracket bolts to
thespecialtorquevalue(Table42).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
