304 ENGINE ELECTRICAL

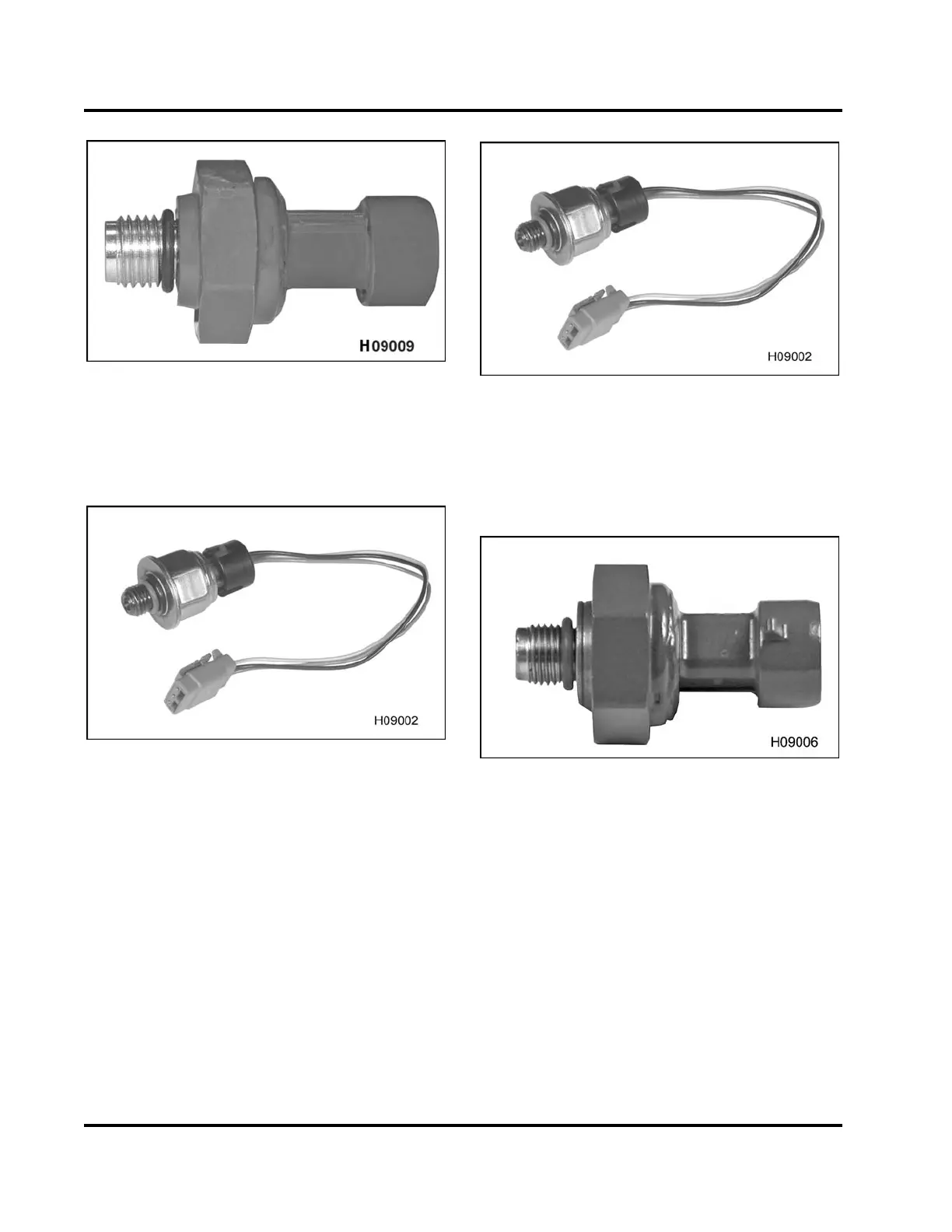

Figure 442 Engine Oil Pressure (EOP) sensor
The EOP sensor is a variable capacitance sensor.
The EOP sensor is installed on the left of the
crankcase below and left of the fuel filter housing.
Figure 443 Injection Control Pressure (ICP)
sensor
The ICP sensor is a variable capacitance sensor. The
ICP sensor is installed left of the engine Brake shutoff
valve in the high-pressure rail.
Figure 444 Brake Control Pressure (BCP)
sensor
The BCP sensor is a variable capacitance sensor. The
BCP sensor is installed forward of the engine Brake
shutoff valve in the high-pressure rail.
Figure 445 E ngine F uel Pressure (EFP) sensor
The EFP sensor is a variable capacitance sensor. The
EFP sensor is installed in the rear of the fuel filter
assembly (crankcase side).
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
