310 ENGINE ELECTRICAL

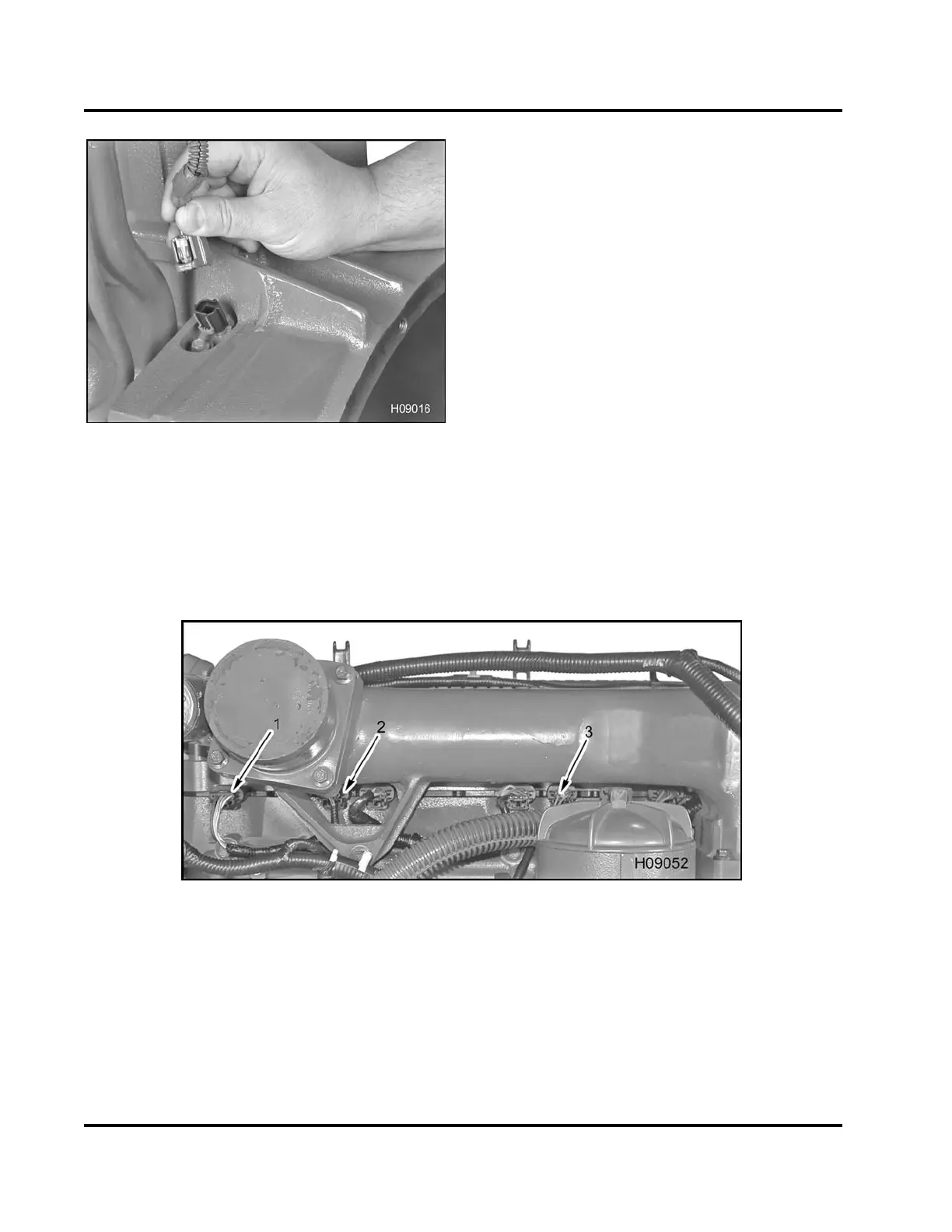

Figure 464 Disconnecting the CKP sensor
15. Disconnect the wiring harness connector from the
CKP sensor.
16. Disconnect two additional, three wire connectors
for the BCP sensor connector and brake shutoff
valve connector to the valve cover gasket
(optional).
Figure 465 BCP, Brake shutoff valve, and injector locations
1. Injector connector (6)
2. BCP sensor connector (optional)
3. Brake shutoff connector
(optional)
17. Disconnect one, three wire ICP connector from
valve cover gasket.
18. Disconnect wiring harness at EGR drive module.
19. Disconnect one IDM connector. This is the one of
three IDM connectors in the most forward position
on the IDM.
20. Disconnect two ECM engine connectors. These
are the two connectors towards the rear of the
ECM.
