FLYWHEEL AND FLYWHEEL HOUSING 377

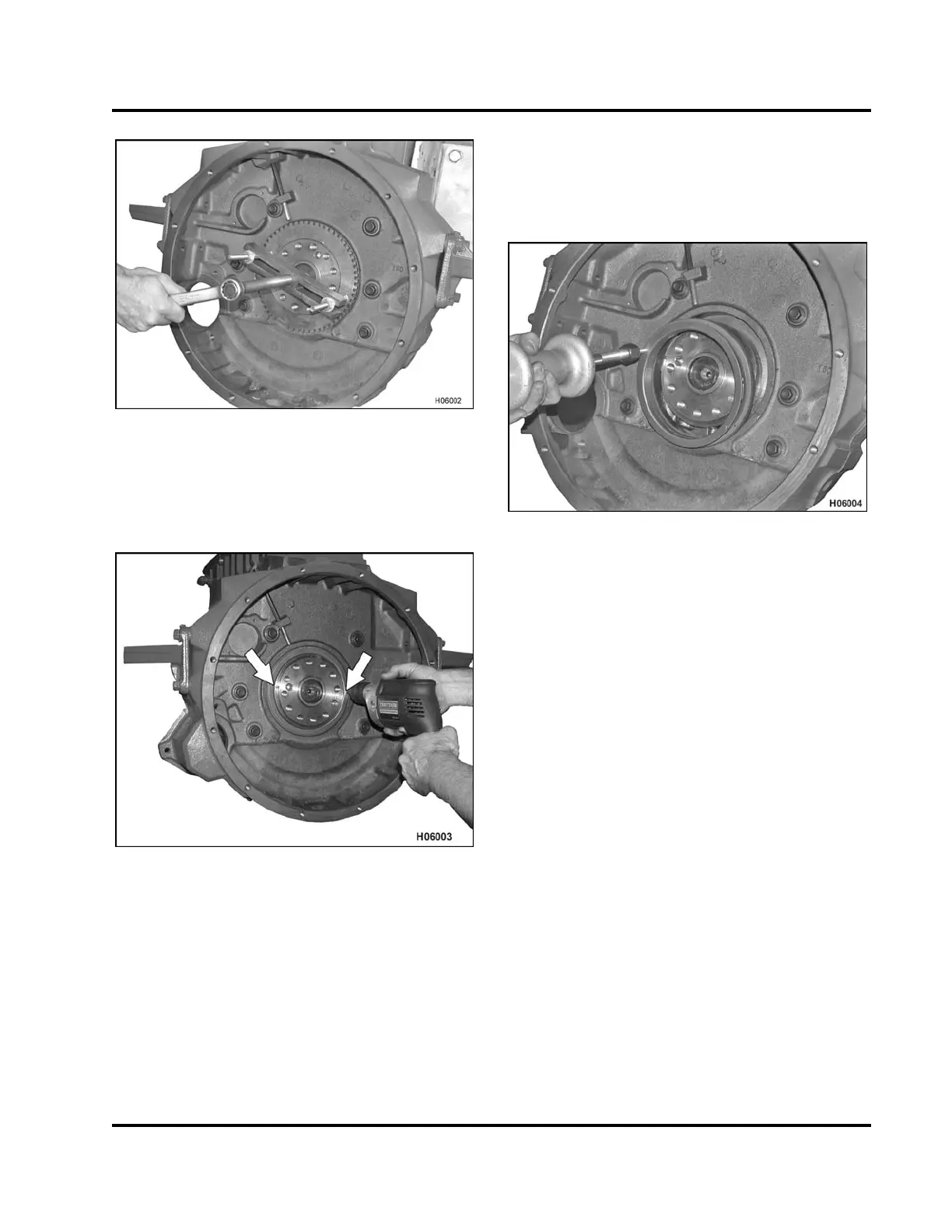

Figure 594 Removing the crankshaft timing disk
1. Use an H-bar puller to remove the crankshaft
timing disk from the end of the crankshaft (Table
52).
Figure 595 Drilling holes in the rear oil seal
NOTE: Use appropriate size drill bit for pulling screw.
2. Drill two holes of appropriate diameter for slide
hammer use into the rear oil seal at approximately
the 3 and 9 o’clock positions.
Figure 596 Removing the rear oil seal
3. Useaslidehammer(Table52)toalternately
pull on each side of the rear oil seal using the
two previously drilled holes. Discard oil seal
assembly.
