INTAKE, INLET, AND EXHAUST MANIFOLDS 79
H14002
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

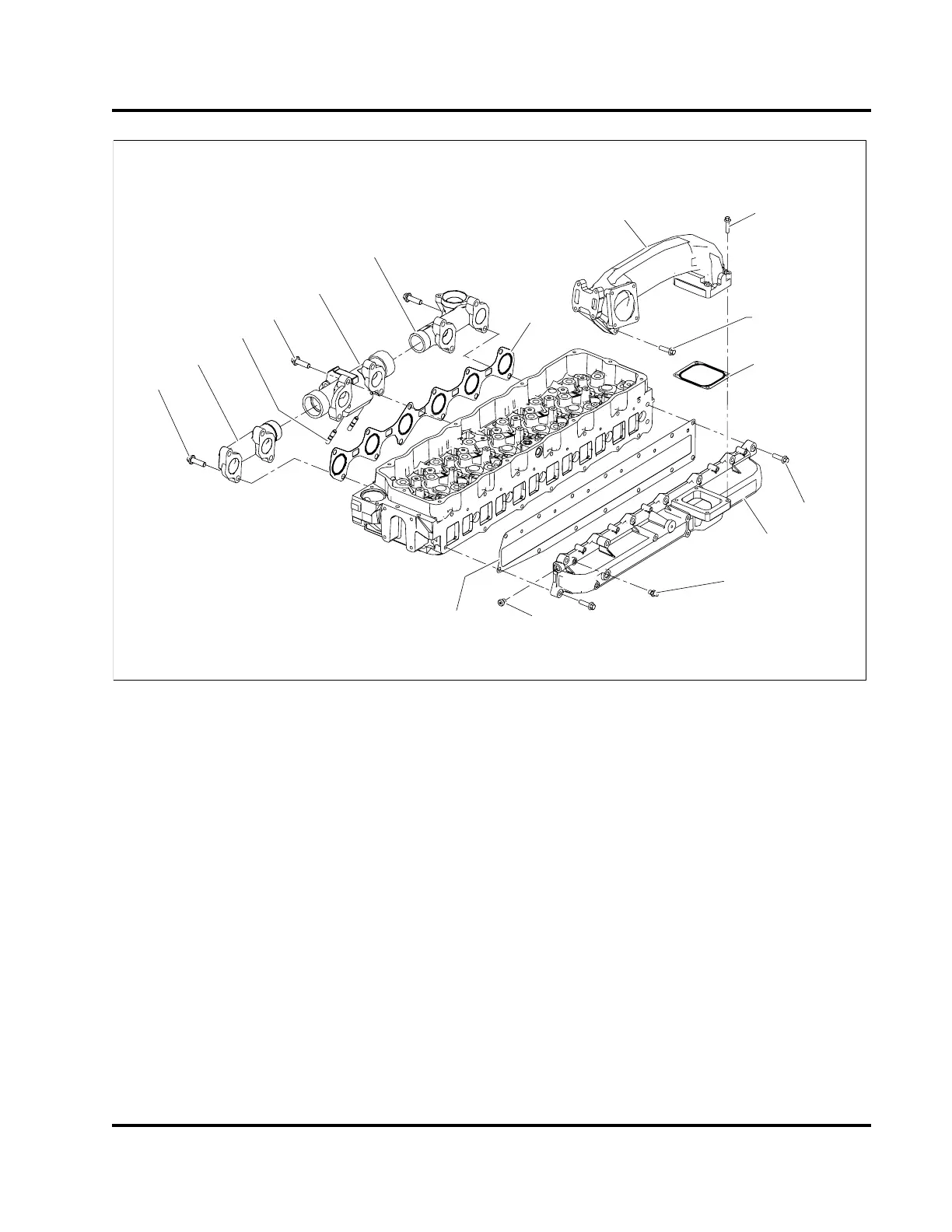

Figure 65 Intake manifold, inlet and EGR mixer, and exhaust manifold assemblies
1. Exhaust manifold flange head
bolt, M12 x 35 (11)
2. Manifold, exhaust front
3. Stud, M10 (2)
4. Manifold, exhaust center (low or
high mount turbo versions)
5. Exhaust manifold and EGR
bracket flange head bolt, M12 x
120 (1)
6. Manifold, exhaust rear (short or
long EGR cooler version)
7. Exhaust manifold gasket
8. Inlet and EGR mixer duct
9. EGR mixer flange bolt, M8 x 60
(4)
10. EGR mixer support bolt, M10 x
90
11. Intake manifold to mixer gasket
12. Intake manifold bolt, M10 x 35
(13)
13. Intake manifold
14. Fuel (Schrader) valve
15. Intake manifold plug (2)
16. Intake manifold gasket
EGES-265-2
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© 2009 Navistar, Inc.
