User Manual for the NETGEAR 7200 Series Layer 2 Managed Switch Software Version 4
Administration Console Interface 3-3
202-10102-01, May 2005
4.

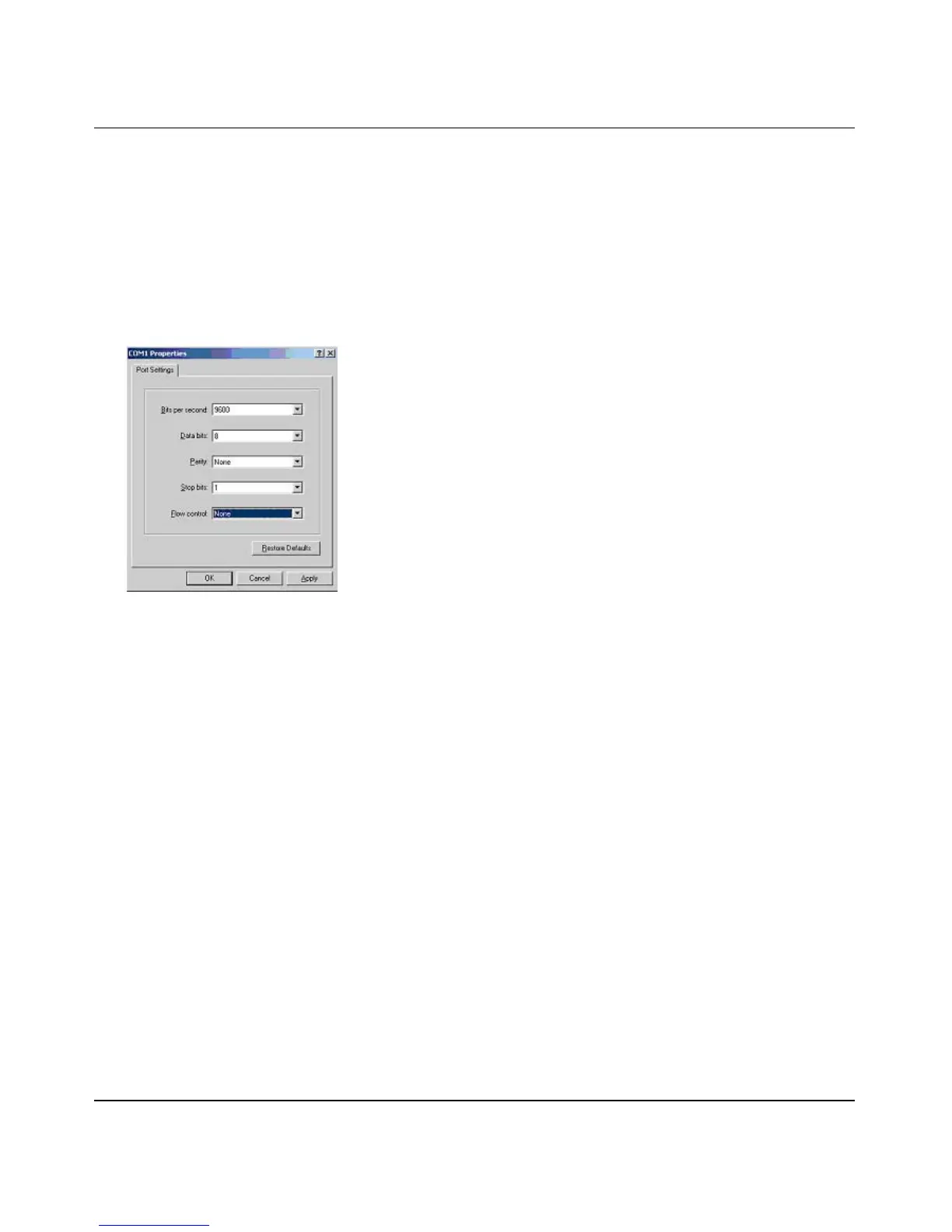

When the following screen appears, make sure that the port setting are as follows:
Baud Rate: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
Figure 3-4: Connection Settings
5.
Click OK.
The HyperTerminal window will open and you should be connected to the switch. If you do not
get a welcome screen or a system menu, press the return key.
When attached to the User Interface via a console connection, the following must be set in order to
use the arrow keys: Under the terminal pull down menu, choose Properties and make sure the
VT100 Arrows option is turned on.
