ut and Out

ut Interface Ports

Cha

ter 3

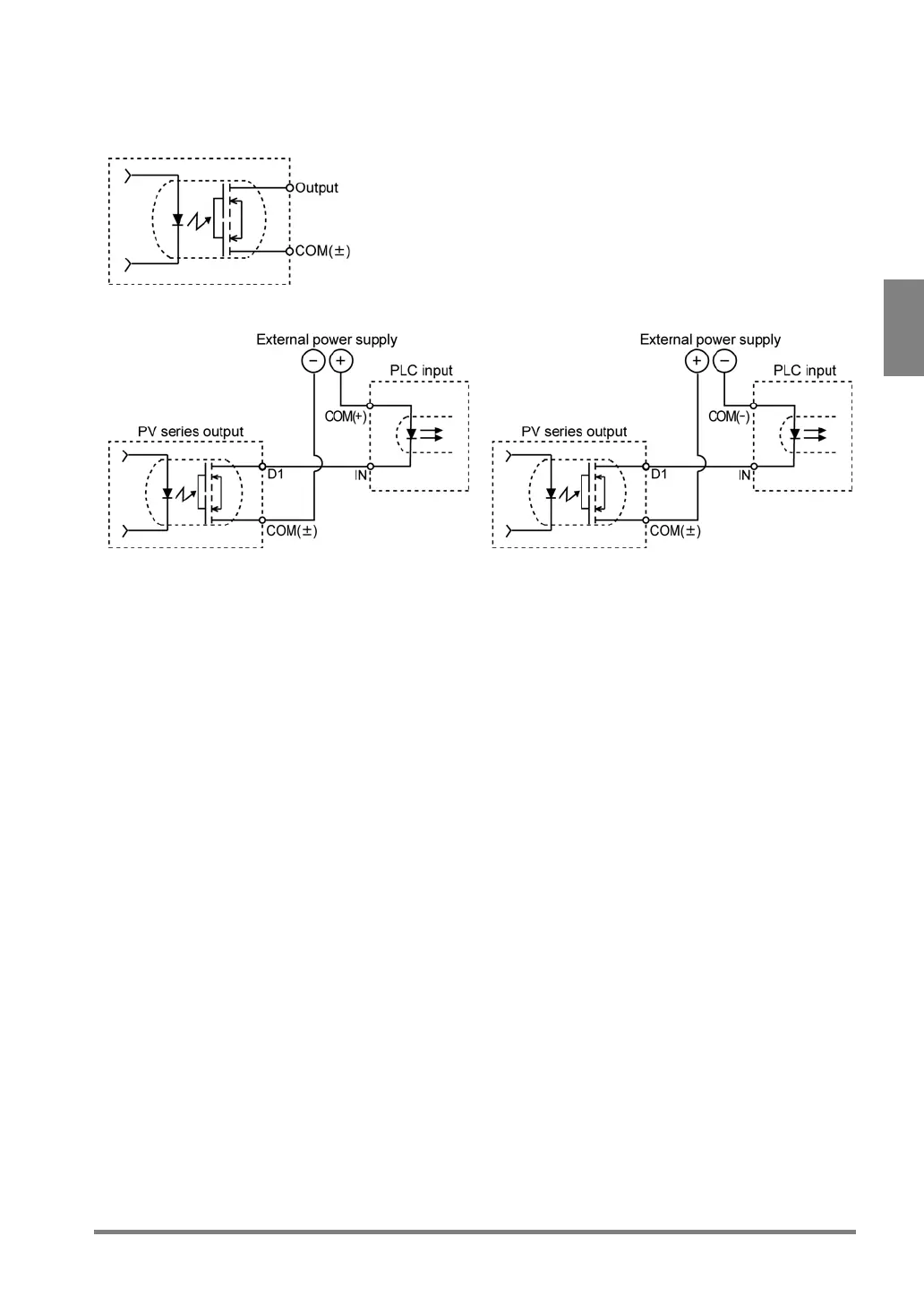

Output Circuit: Product number with final number “P”

Rated operating voltage: 5 to 24 V DC

A connecting example with PLC
