Panasonic Micro-Imagechecker PV310

To Next Page

To Previous Page

ut and Out

ut Interface Ports

Cha

ter 3

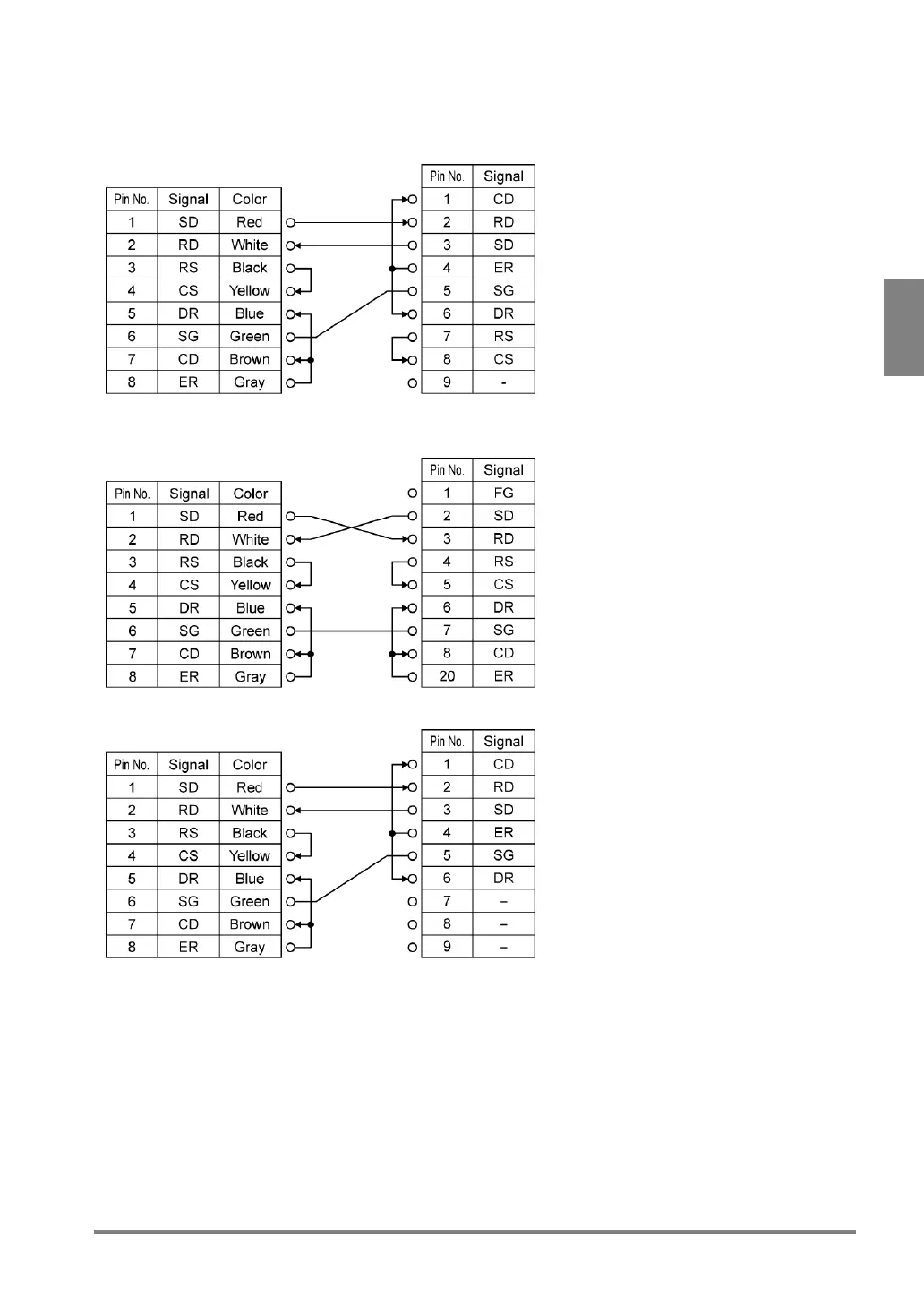

Connections with Mitsubishi PLC

PV310

A series/ Q series

(9-pin)

PV310

A series/ Q series

(25-pin)

PV310 FX series

* Mitsubishi PLC: When you communicate with Q- or A-series PLC in Computer Link mode, use the unit supporting

the special protocol for Mitsubishi A series computer link unit, “Format 4”, for PLC.
