Appendix: LAN Interface
R&S
®
ESR
1083User Manual 1175.7068.02 ─ 12

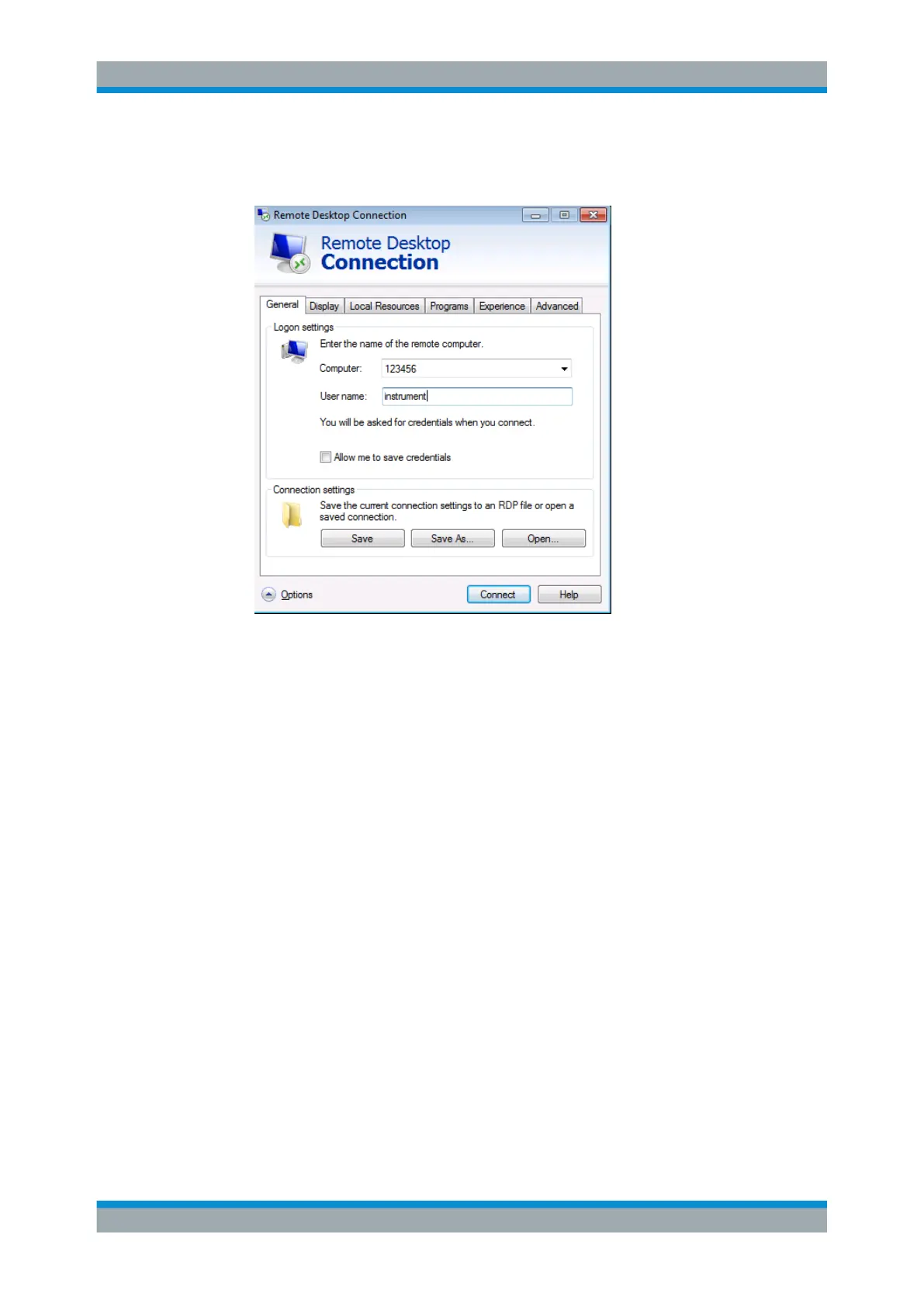

3. Select the "Options >>" button.
The dialog box is expanded to display the configuration data.
4. Open the "Experience" tab.
The settings on this tab are used to select and optimize the connection speed.
5. In the list, select the appropriate connection (for example: LAN (10 Mbps or
higher)).
Depending on your selection (and how powerful the connection is), the options are
activated or deactivated.
6. To improve the performance, you can deactivate the "Desktop background", "Show
contents of window while dragging" and "Menu and window animation" options.
7. Open the "Local Resources" tab for enabling printers, local drives and serial inter-
faces.
8. If you will need to access drives of the controller from the R&S ESR (e.g. in order
to store settings or to copy files from the controller to the R&S ESR), select "More",
then enable the "Drives" option.
Operation with Windows Remote Desktop
