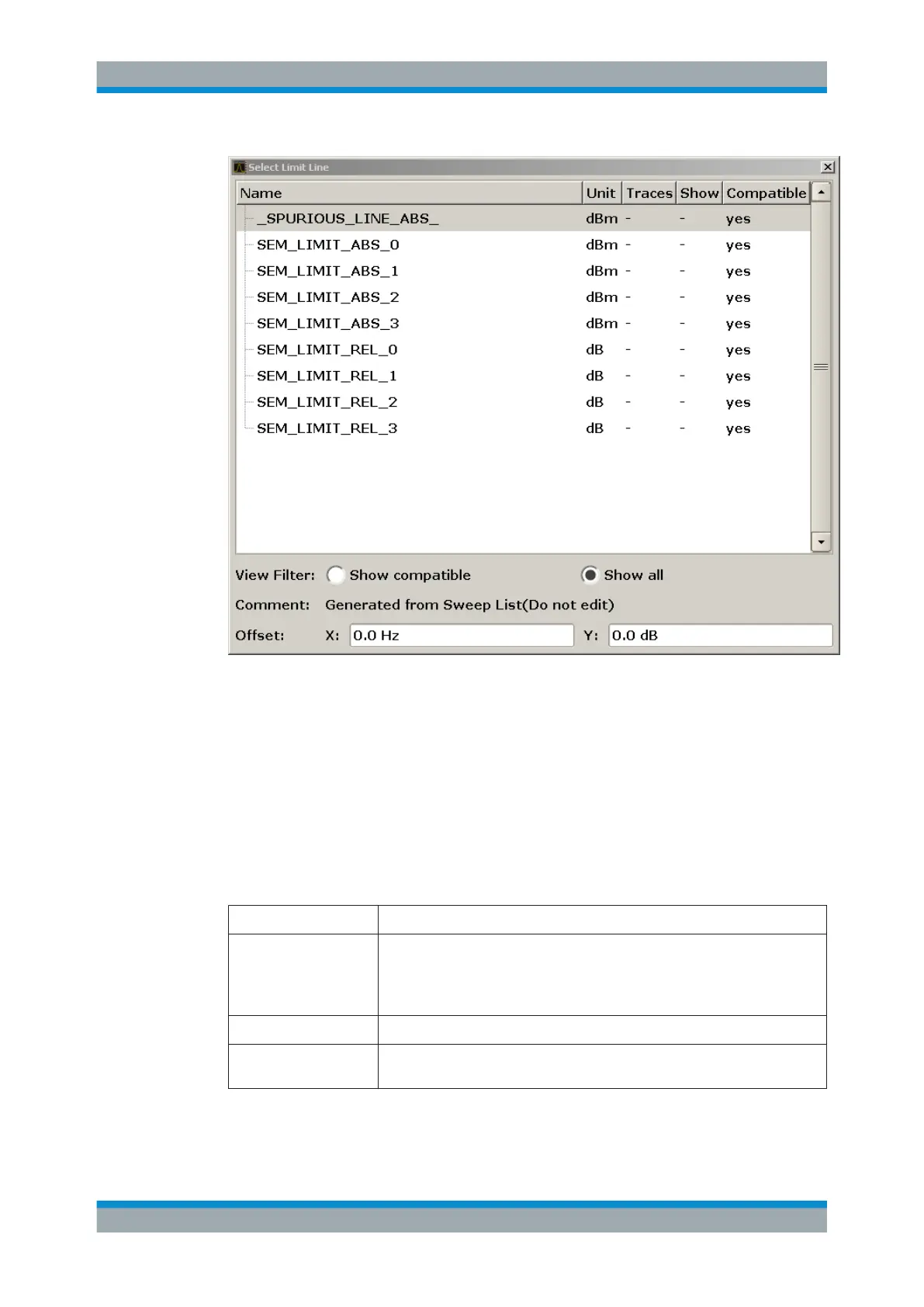

To display only the limit lines that are compatible, activate the "Show compatible"
option. For details on compatibility refer to Chapter 5.4.3.3, "Limit Lines (Fre-
quency/Time Lines)", on page 214.
5.4.3.6 Creating a New Limit Line
Press the New softkey to define a new limit line.
The "Edit Limit Line" dialog box is displayed. For more details on limit lines refer also to
Chapter 5.4.3.3, "Limit Lines (Frequency/Time Lines)", on page 214. The following set-
tings can be defined:
Setting Description
Name The name under which the limit line is to be stored in the main directory.
To save the limit line in an existing subdirectory, enter the relative path. A new
subdirectory can only be created using the [FILE] key (for details refer to "Save
File / Recall File" on page 531.
Comment Optional description
Threshold Absolute threshold value that works as a lower limit for the relative limit values
(only for relative scaling of the y-axis).
