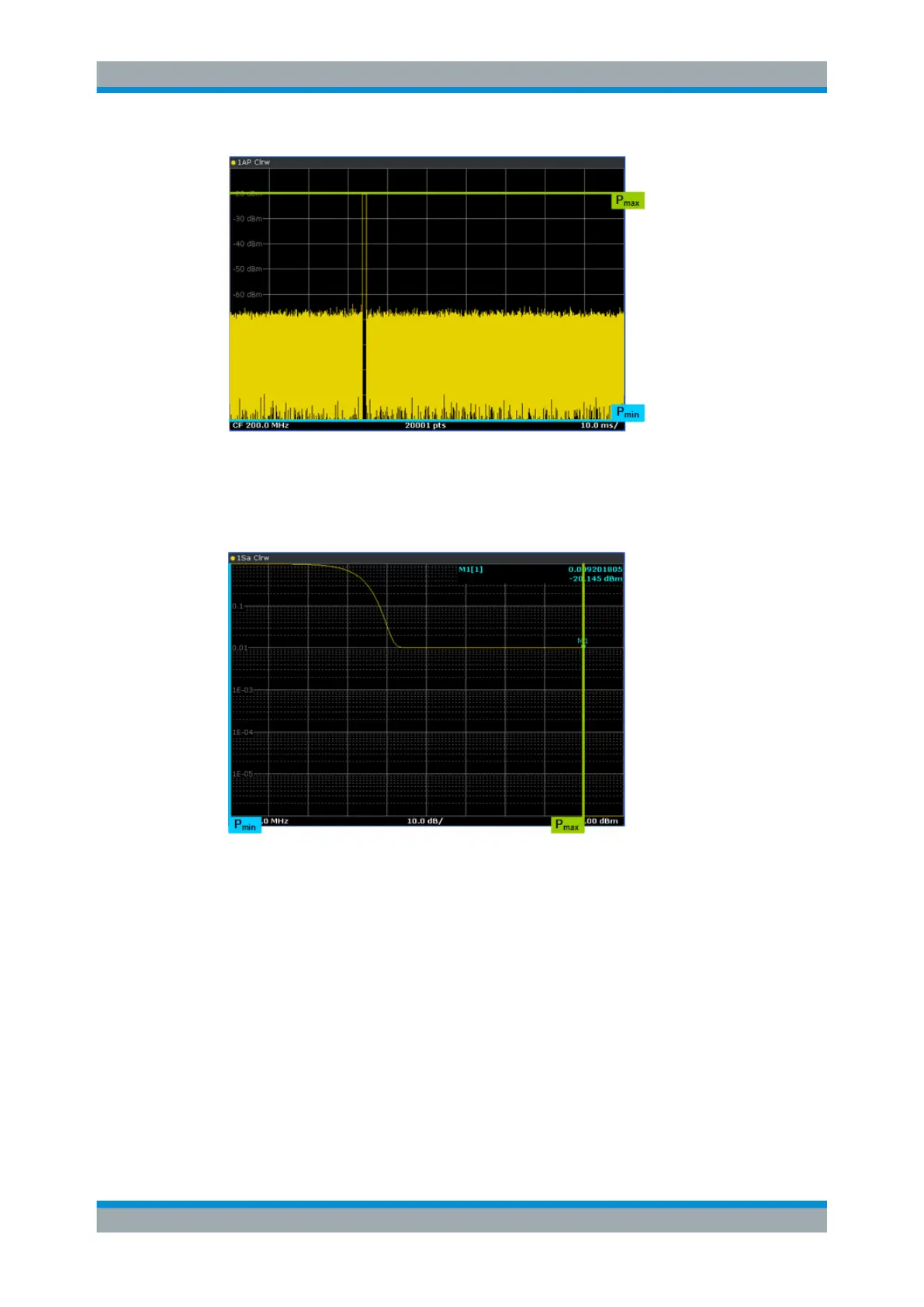

The second picture shows the corresponding CISPR APD function.

The probability of time at 10e-2 corresponds to the duty cycle of 1 %. The maximum

level of -20.145 dBm corresponds to the peak level that has been measured in spec-

trum mode.

Softkeys for CISPR APD Measurements

Functions to configure CISPR APD measurements described elsewhere:

●

"Percent Marker" on page 322

●

"Res BW Manual" on page 184

●

"Scaling" on page 317

●

"Adjust Settings" on page 320

Acquisition Time.......................................................................................................... 311

Acquisition Time

Defines the measurement time for CISPR APD measurements.

Remote command:

[SENSe:]SWEep:TIME on page 639
