Spectrum Measurements

R&S

ESR

320User Manual 1175.7068.02 ─ 12

y-axis upper limit: 1.0

y-axis lower limit: 1E-6

Remote command:

CALCulate<n>:STATistics:PRESet on page 796

Adjust Settings ← Scaling ← APD

Adjusts the level settings according to the measured difference between peak and min-

imum power for APD measurement or peak and mean power for CCDF measurement

in order to obtain maximum power resolution. Adjusts the reference level to the current

input signal. For details see also the Adjust Ref Lvl softkey.

Remote command:

CALCulate<n>:STATistics:SCALe:AUTO ONCE on page 797

Gated Trigger (On/Off) ← APD

Activates and deactivates the gating for statistics functions for the ACP and the CCDF

channel. The trigger source is changed to "EXTERN" if this function is switched on.

The gate ranges are defined using the "Gate Ranges" on page 320 softkey.

Remote command:

[SENSe:]SWEep:EGATe on page 841

[SENSe:]SWEep:EGATe:SOURce on page 842

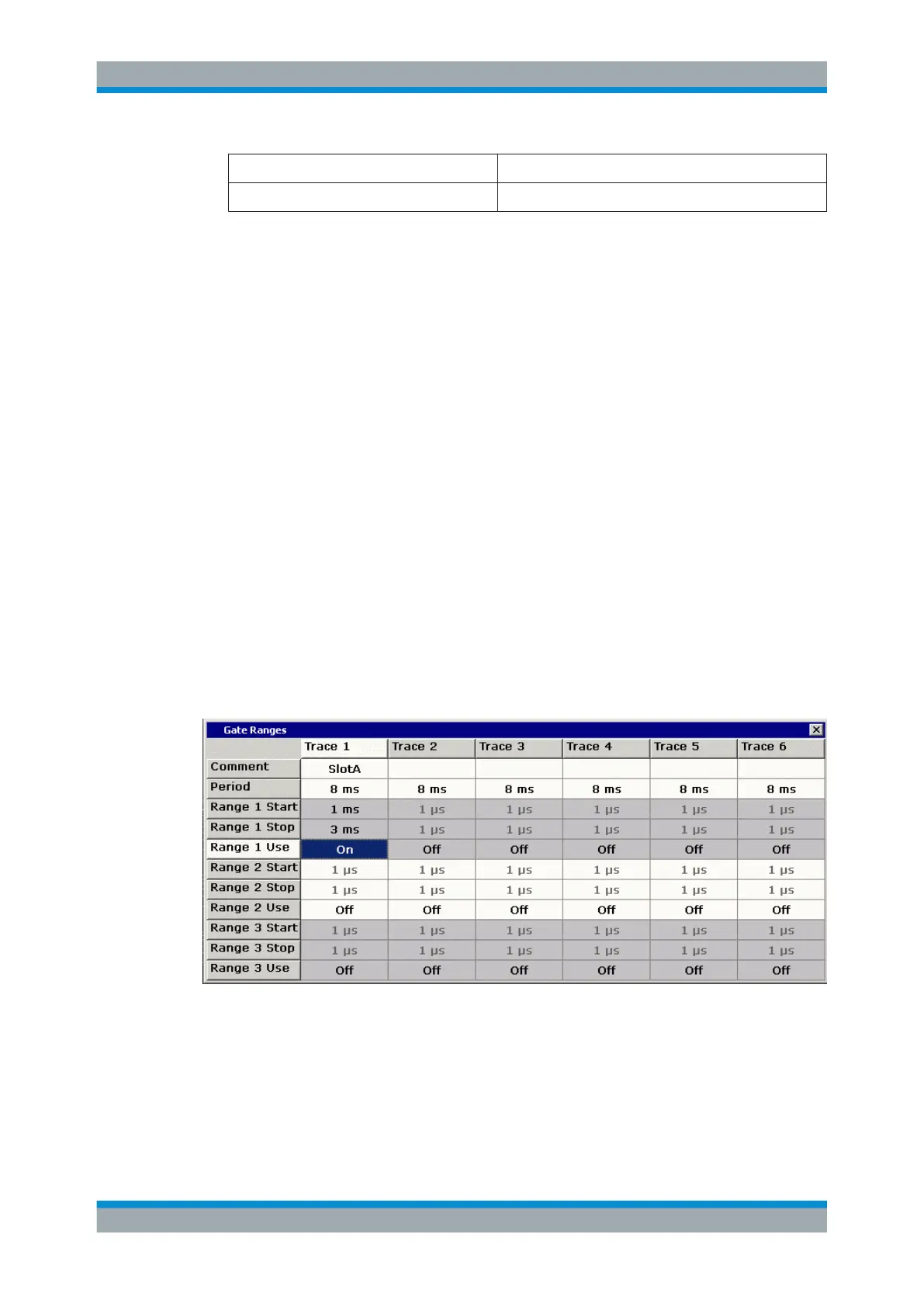

Gate Ranges ← APD

Opens a dialog to configure up to 3 gate ranges for each trace.

For details on configuration, see "Defining Gated Triggering for APD and CCDF"

on page 327.

Remote command:

SWE:EGAT ON (see [SENSe:]SWEep:EGATe on page 841)

Switches on the external gate mode.

SWE:EGAT:TRAC1:COMM "SlotA" (see [SENSe:]SWEep:EGATe:TRACe<k>:

COMMent on page 794)

Adds a comment to trace 1.
