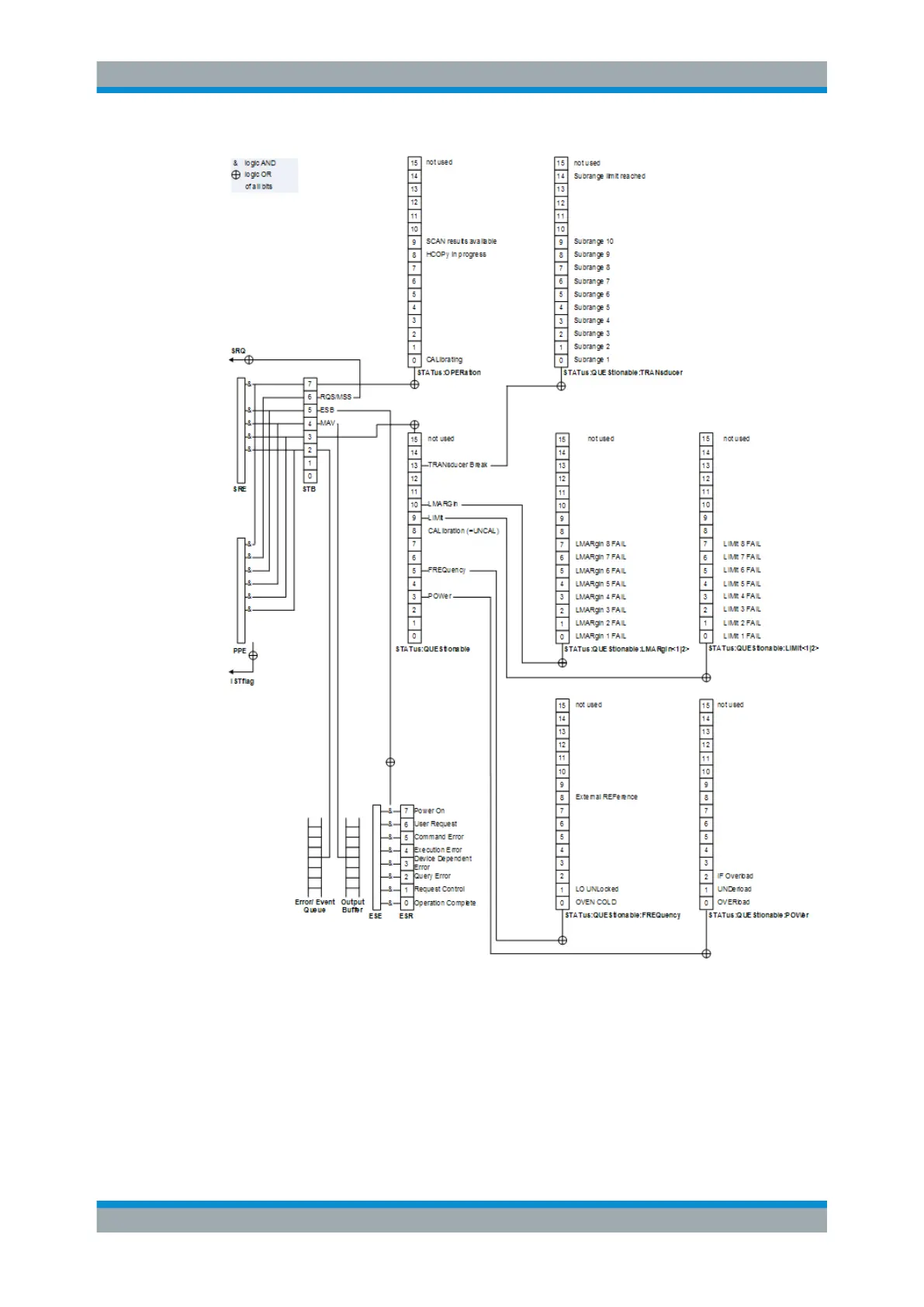

Figure 11-3: Overview of status registers in receiver mode

Status Byte (STB) and Service Request Enable Register (SRE)

The STatus Byte (STB) is already defined in IEEE 488.2. It provides a rough over-

view of the instrument status by collecting the pieces of information of the lower regis-

ters. A special feature is that bit 6 acts as the sum bit of the remaining bits of the status

byte.
