110User Manual 1175.7068.02 ─ 12

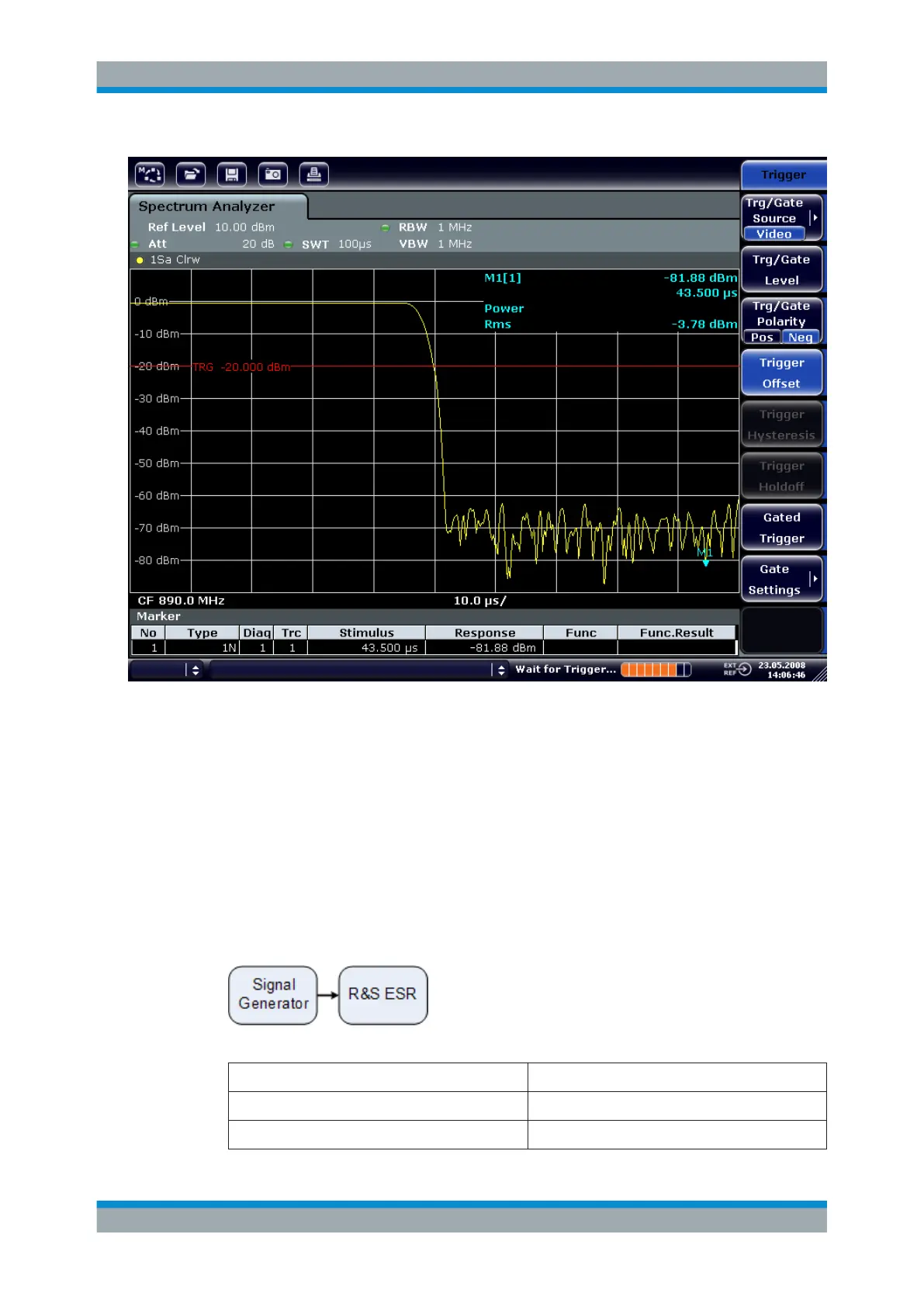

Figure 3-17: Falling edge of the GSM burst displayed with high time resolution

3.5.4.2 Measuring the Signal-to-Noise Ratio of Burst Signals

When TDMA transmission methods are used, the signal-to-noise ratio or the deactiva-

tion dynamic range can be measured by comparing the power values during the activa-

tion phase and the deactivation phase of the transmission burst. For this purpose, the

R&S ESR provides the function for measuring absolute and relative power in zero

span. In the following example, the measurement is performed using a GSM burst.

Signal-to-Noise Ratio of a GSM Signal

Test setup

Table 3-10: Signal generator settings (e.g. R&S SMU)

Frequency 890 MHz

Level 0 dBm

Modulation GSM, one time slot is switched on

Basic Measurement Examples
