Displaying the AF of an FM-Modulated Carrier

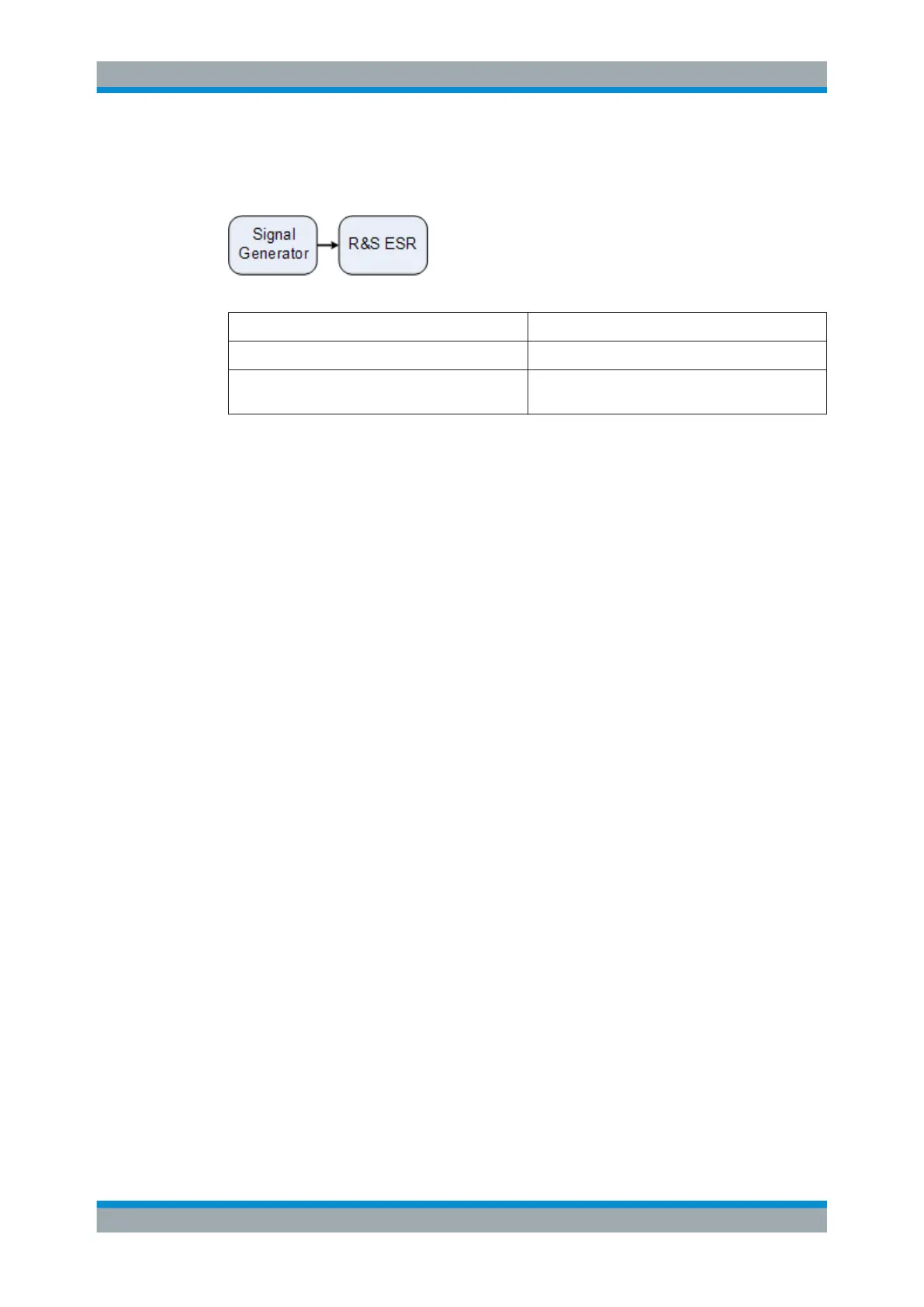

Test setup
Table 3-11: Signal generator settings (e.g. R&S SMU)
Frequency 128 MHz
Level -20 dBm
Modulation FM 0 kHz deviation (i.e. FM modulation is deactiva-
ted), 1 kHz AF
1. Set the signal analyzer to the default state by pressing the [PRESET] key.
The R&S ESR is set to its default state.
2. Select "Spectrum" mode.
3. Set the center frequency to 127.50 MHz and the span to 300 kHz.
a) Press the [FREQ] key and enter 127.50 MHz.
b) Press the [SPAN] key and enter 300 kHz.
4. Set the resolution bandwidth to 300 kHz.
a) Press the [BW] key.
b) Press the "Res BW Manual" softkey and enter 300 kHz.
c) Press the "Video BW Manual" softkey and enter 30 kHz.
5. Set the display range to 20 dB and shift the filter trace to the center of the screen.
a) Press the [AMPT] key.
b) Press the "Range" softkey
c) Press the "Range Log Manual" softkey and enter 20 dB.
d) Press the "Up↑" softkey.
e) Press the "More" softkey.
f) Switch the "Grid" softkey to "Rel".
g) Press the "Up↑" softkey.
h) Press the "Ref Level" softkey.
