Spectrum Measurements
R&S
®
ESR
287User Manual 1175.7068.02 ─ 12

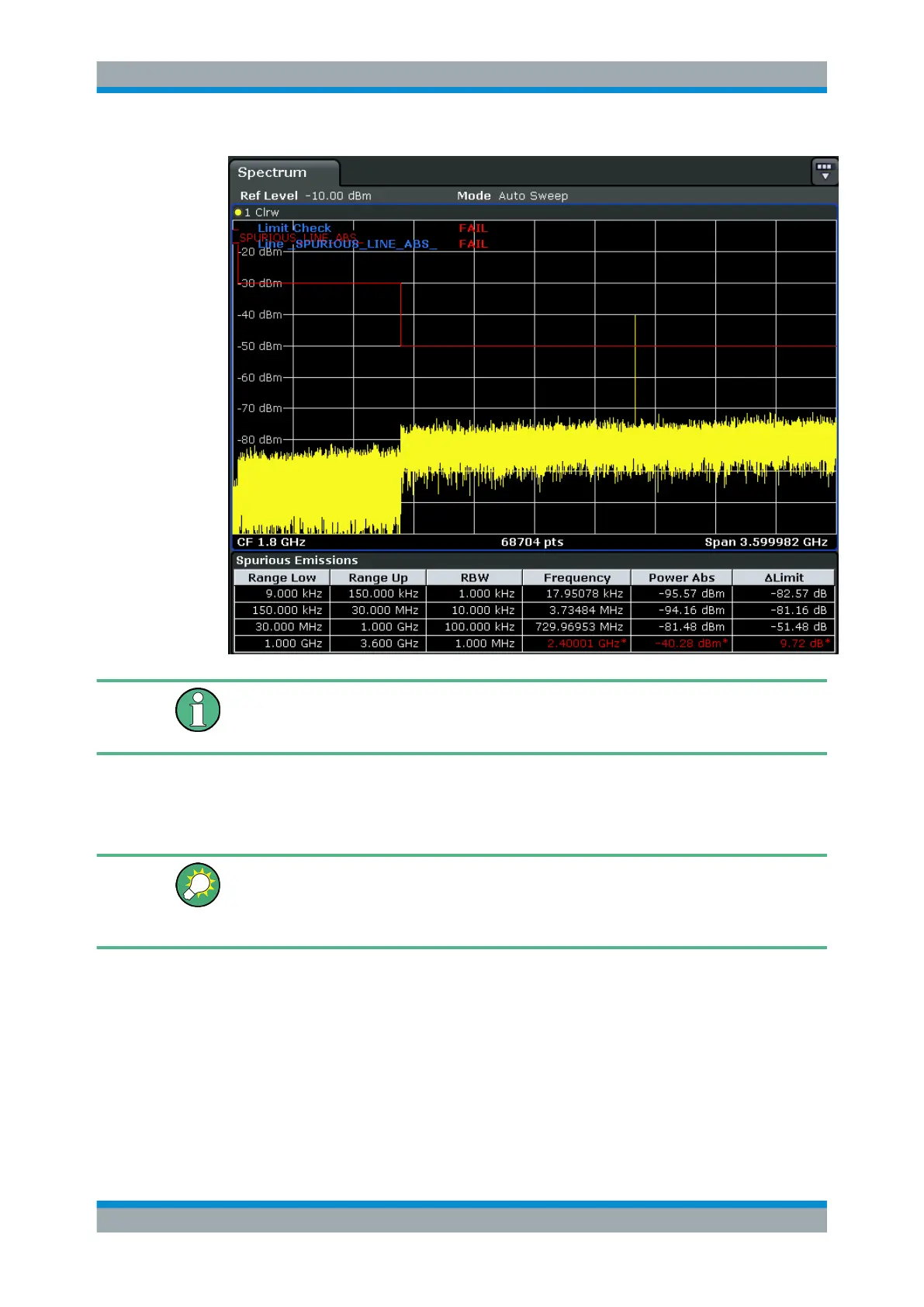

As for general limit lines, the results of each limit line check are displayed (here:
"_SPURIOUS_LINE_ABS"), as well as the combined result for all defined limit lines
("Limit Check").
In addition to the limit line itself, the largest deviations of the absolute power from the
limit line for each range are displayed in the evaluation list if the limit check is activa-
ted. Values that exceed the limit are indicated in red and by an asterisk (*).
Although a margin functionality is not available for the limit check, a margin (threshold)
for the peak values to be displayed in the evaluation list can be defined in the list eval-
uation settings. Furthermore, you can define how many peaks per range are listed. For
details see "Result Evaluation" on page 285.
To define a limit check for spurious measurements
The limit check is defined in the "Sweep List" dialog box, see "Sweep List dialog box"
on page 289 for details.
1. Press the [Meas Config] key to open the main "Spurious" menu.
2. Press the "Sweep List" softkey to open the "Sweep List" dialog box.
