Spectrum Measurements

R&S

ESR

440User Manual 1175.7068.02 ─ 12

e) Press the "Video BW Manual" softkey and enter "10 kHz".

The RF signal can be more clearly distinguished from noise.

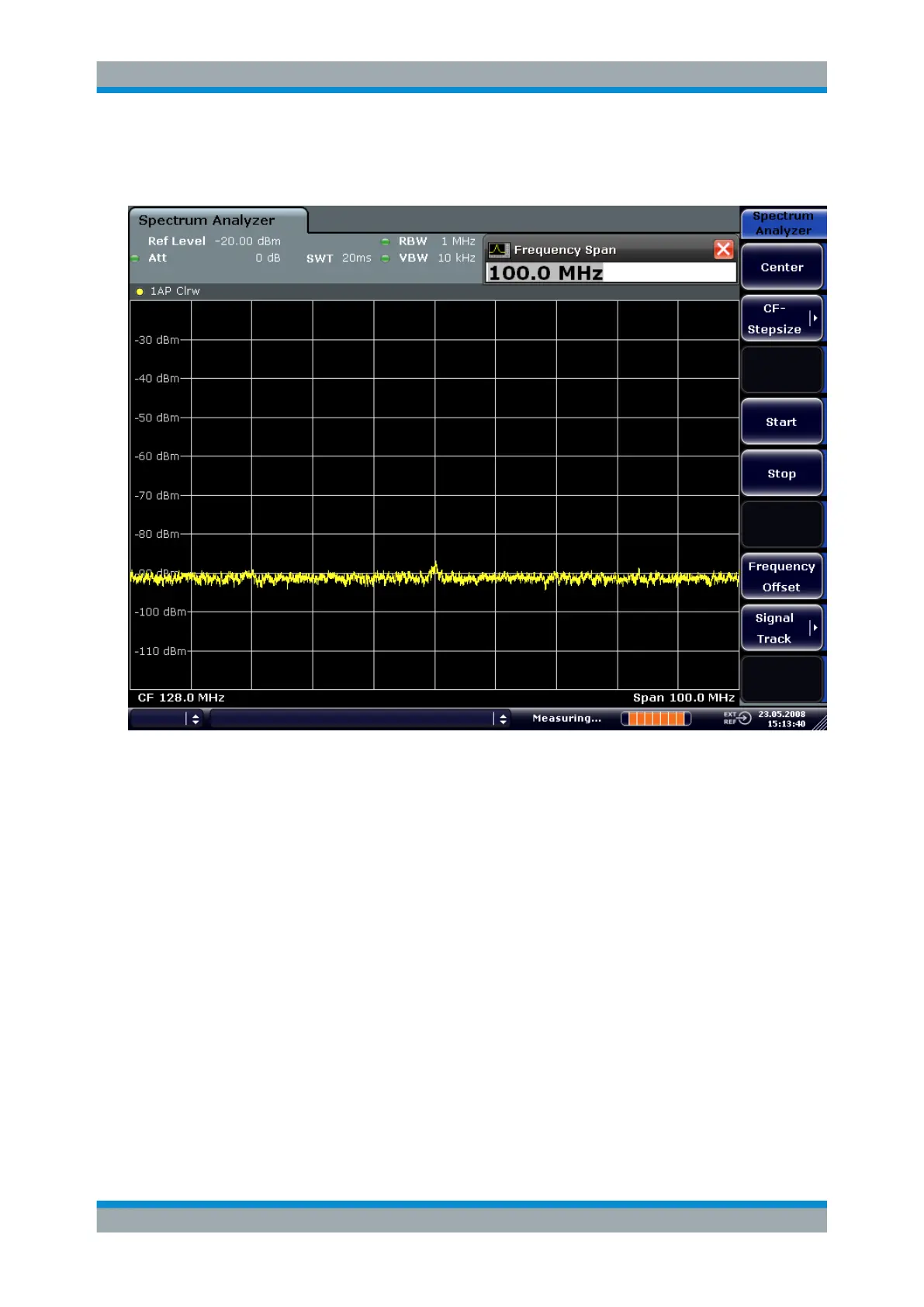

Figure 6-27: RF sine wave signal with low S/N ratio if a smaller video bandwidth is selected.

5. By reducing the resolution bandwidth by a factor of 10, the noise is reduced by 10

dB:
