R&S ZVB - Page 444

R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT GUI Reference
Channel Menu
Operating Manual 1145.1084.12 – 30 429

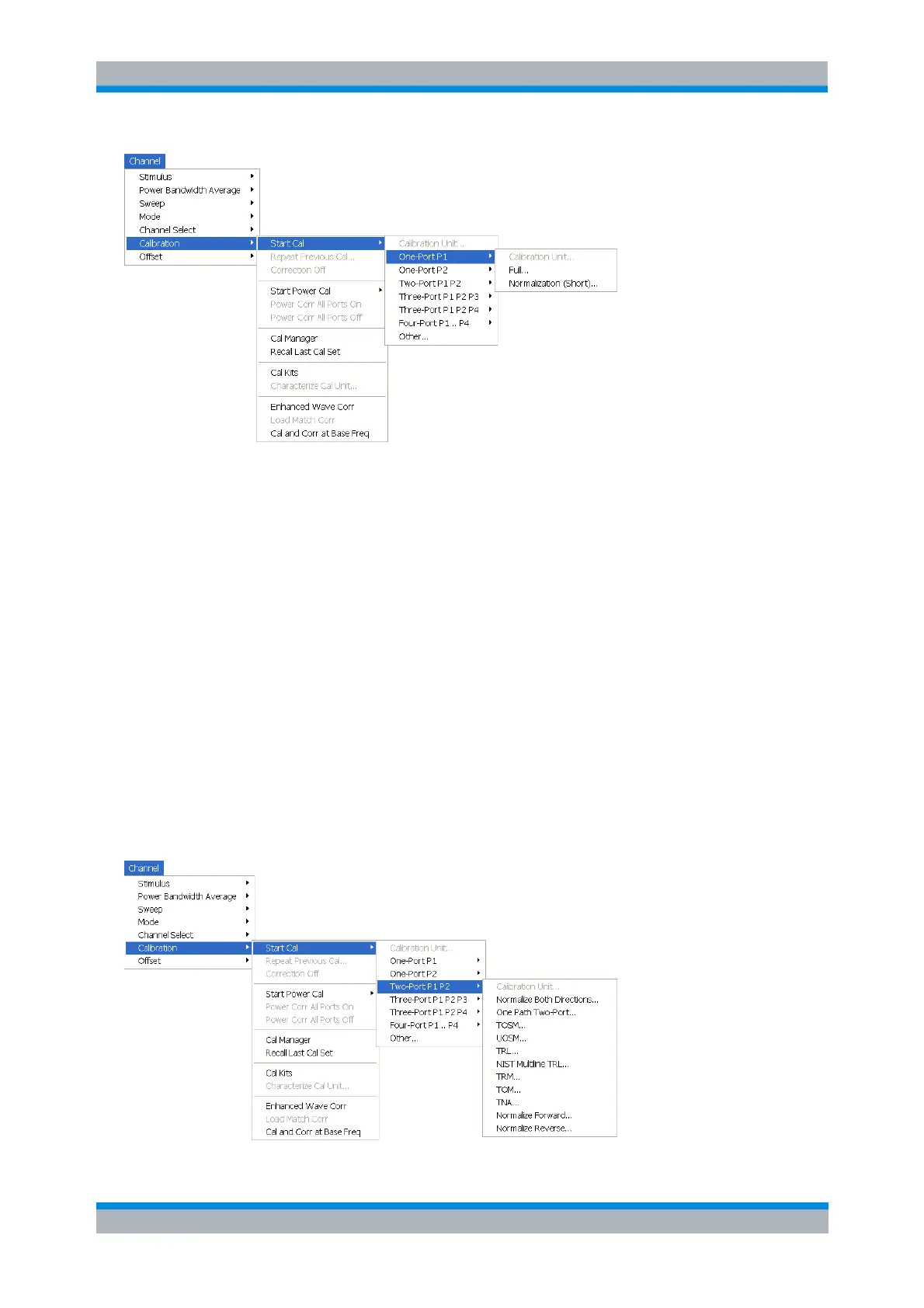

One-port calibrations can be performed automatically or manually.
 Calibration Unit starts an automatic full one-port calibration. This function is enabled while a
Calibration Unit is connected.
The following menu commands calls up the start dialog of the calibration wizard to start a manual
calibration:
 Full initiates a full one-port calibration.
 Normalization (Short) initiates a normalization using a short standard.
Remote
control:
[SENSe<Ch>:]CORRection:COLLect:AUTO ' ', <port_no> (for matching
analyzer and cal unit ports)
[SENSe<Ch>:]CORRection:COLLect:AUTO:PORTs (for arbitrary pairs of ports)
[SENSe<Ch>:]CORRection:COLLect:METHod:DEFine "<cal_name>",
REFLshort | FOPort , <port_no>
Two-Port P1 P2
Opens a submenu to select a two-port calibration at test ports PORT 1 and PORT 2:
