R&S ZVB - Page 446

R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT GUI Reference
Channel Menu
Operating Manual 1145.1084.12 – 30 431
Calibrations can be performed automatically or manually.
 Calibration Unit starts an automatic TOSM calibration at the respective ports. This function is
enabled while a Calibration Unit is connected.

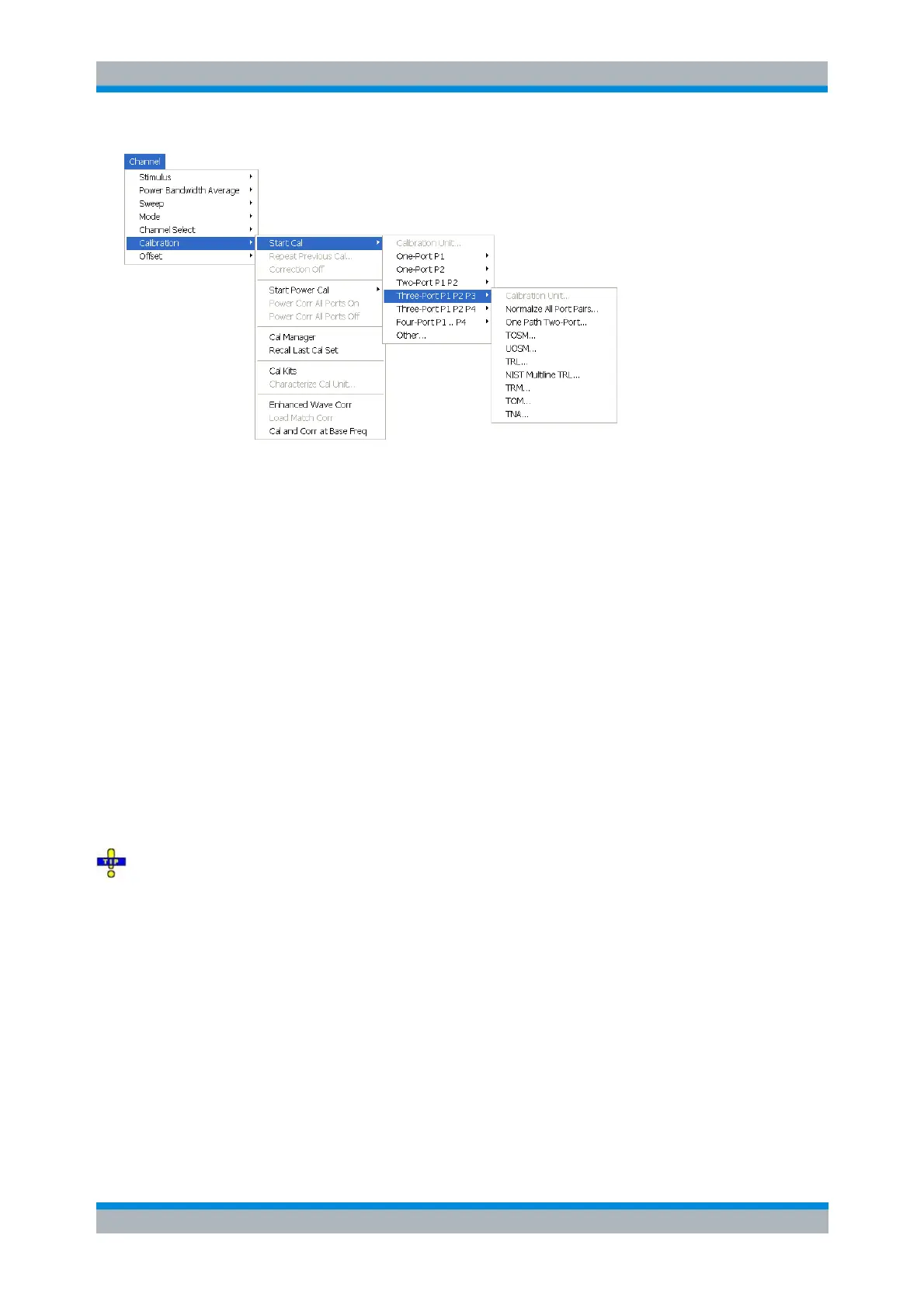

The following menu commands calls up the start dialog of the calibration wizard to start a manual
calibration:
 Normalization All Port Pairs... initiates a normalization of all (directed) port pairs using a through
standard.
 One Path Two Port initiates a full one-port calibration.
 TOSM initiates a Through-Open-Short-Match (12-term) calibration
 UOSM iniates a TOSM calibration with Unknown Through
 TRL initiates a Through-Reflect-Line calibration
 NIST Multiline TRL initiates a NIST Multiline TRL calibration
 TRM initiates a Through-Reflect-Match calibration
 TOM initiates a Through-Open-Match calibration
 TNA initiates a Through-Network-Attenuation calibration
Use Start Cal – Other... to set up and perform other 3- or 4-port calibrations.
Remote
control:
[SENSe<Ch>:]CORRection:COLLect:AUTO ' ', <port_no> (for matching analyzer
and cal unit ports)
[SENSe<Ch>:]CORRection:COLLect:AUTO:PORTs (for arbitrary pairs of ports)
[SENSe<Ch>:]CORRection:COLLect:METHod:DEFine "<cal_name>", FRTRans |
OPTPort | TOSM | UOSM | TRL | NMTRl | TRM | TOM | TNA | FTRans |
RTRans, <port_no>,<port_no>
Calibration Wizard
The analyzer provides a calibration wizard for each calibration type. The guided calibration consists of the
following steps:
