(10) Internal equivalent circuit
The equivalent circuit of the analog input block is shown below.

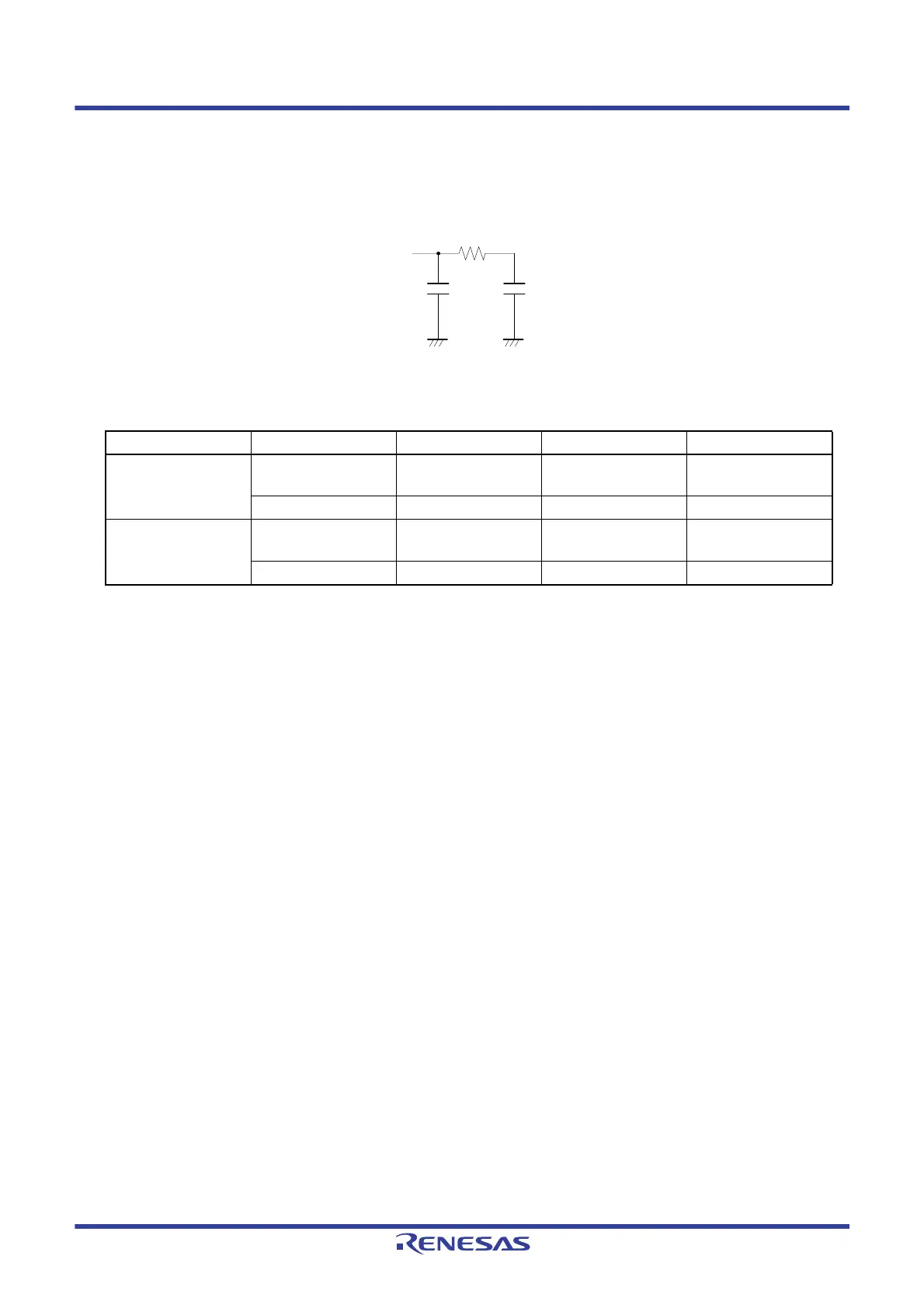

Figure 13 - 32 Internal Equivalent Circuit of ANIn Pin
Remark The resistance and capacitance values shown in Table 13 - 7 are not guaranteed values.
(11) Starting the A/D converter
Start the A/D converter after the AVREFP and VDD voltages stabilize.
Table 13 - 7 Resistance and Capacitance Values of Equivalent Circuit (Reference Values)
AVREFP, VDD ANIn Pins R1 [kΩ] C1 [pF] C2 [pF]
2.7 V
≤ VDD < 3.6 V ANI0 to ANI2, ANI13,
ANI14
39 8 2.5
ANI19 53 8 7.0
1.8 V
≤ VDD < 2.7 V ANI0 to ANI2, ANI13,
ANI14
231 8 2.5
ANI19 321 8 7.0
