RL78/G1H CHAPTER 31 ELECTRICAL SPECIFICATIONS

R01UH0575EJ0120 Rev. 1.20 Page 879 of 920

Dec 22, 2016

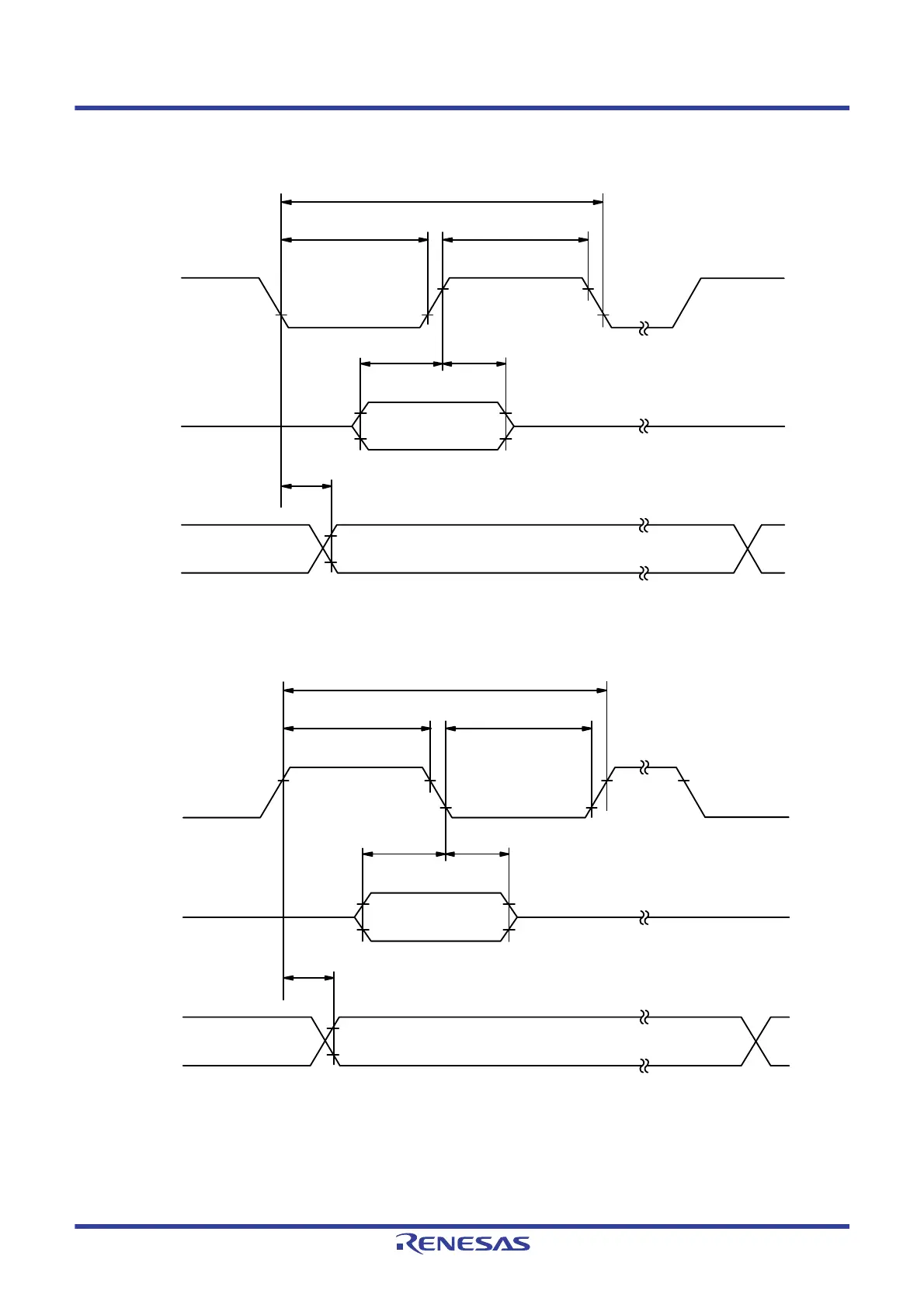

CSI mode serial transfer timing (during communication at same potential)

(When DAPmn = 0 and CKPmn = 0, or DAPmn = 1 and CKPmn = 1.)

CSI mode serial transfer timing (during communication at same potential)

(When DAPmn = 0 and CKPmn = 1, or DAPmn = 1 and CKPmn = 0.)

Remark 1. p: CSI number (p = 10, 21, 30)

Remark 2. m: Unit number, n: Channel number (mn = 02, 11, 12)

SIp

SOp

KCY1, 2

Input data

Output data

SCKp

tKL1, 2

tKH1, 2

tSIK1, 2

tKSI1, 2

tKSO1, 2

Input data

Output data

tKCY1, 2

tKH1, 2

tSIK1, 2

tKSI1, 2

tKSO1, 2

SIp

SOp

SCKp

KL1, 2
