Engineering via SICAM WEB
166 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016
You find the description the functions for the signal preprocessing and signal postprocessing,
as well as their parameters, in the manual SICAM RTUs Common Functions Peripheral Ele-
ments According to IEC 60870-5-101/104.
You find an overview of the parameters and value ranges in the SICAM TOOLBOX II Online
Help, chapter "Parameter Documentation and Diagnostic Info", "SICAM RTUs and 1703 Ax
(IEC) Periphery", "Firmwares“, USIO80“.
This is how to create a new signal:
• Click on the triangle on the upper right side to open the workspace defining signals
• Enter the desired number of rows (each row corresponds to 1 signal)
• Cick on the button

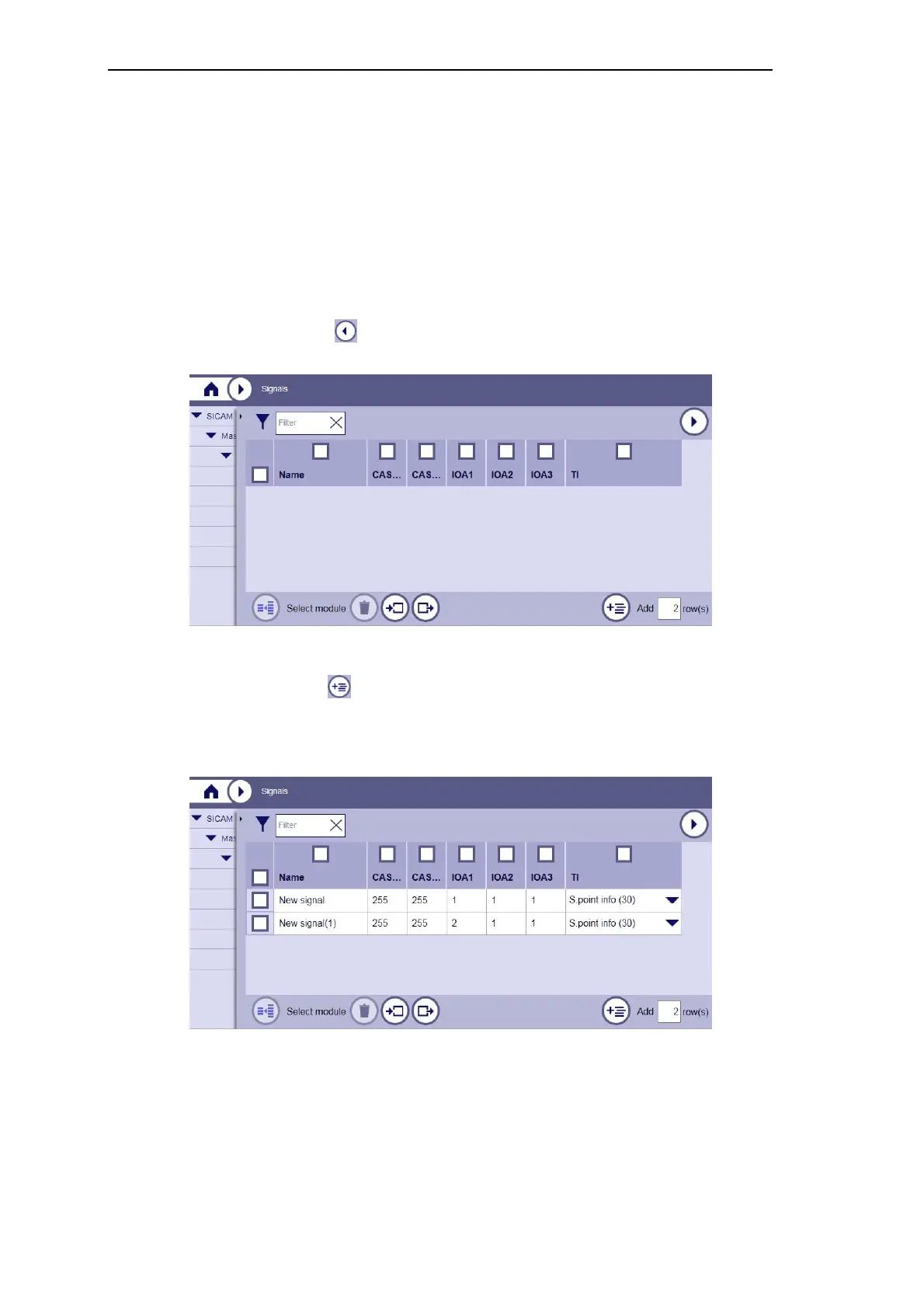

In the following example 2 new signals have been created:
