5 Operation
Handling the battery
– Pull out the battery stop with the pull-out
piece fully.
– Remove all objects from the battery com-
partment.
CAUTION
The battery must be positioned carefully so that it
is flat on the horizontal bridge. Setting the battery
down on the battery stops can deform the stops or
the bridge; the battery then cannot be inserted.
– Ensure that the bridge support stands
vertically under the bridge.
– Ensure that the battery has not been set
down on the battery stops.
– Ensure that the battery is resting right up
against the battery stops.
5060_003-147_V3
7
5
9

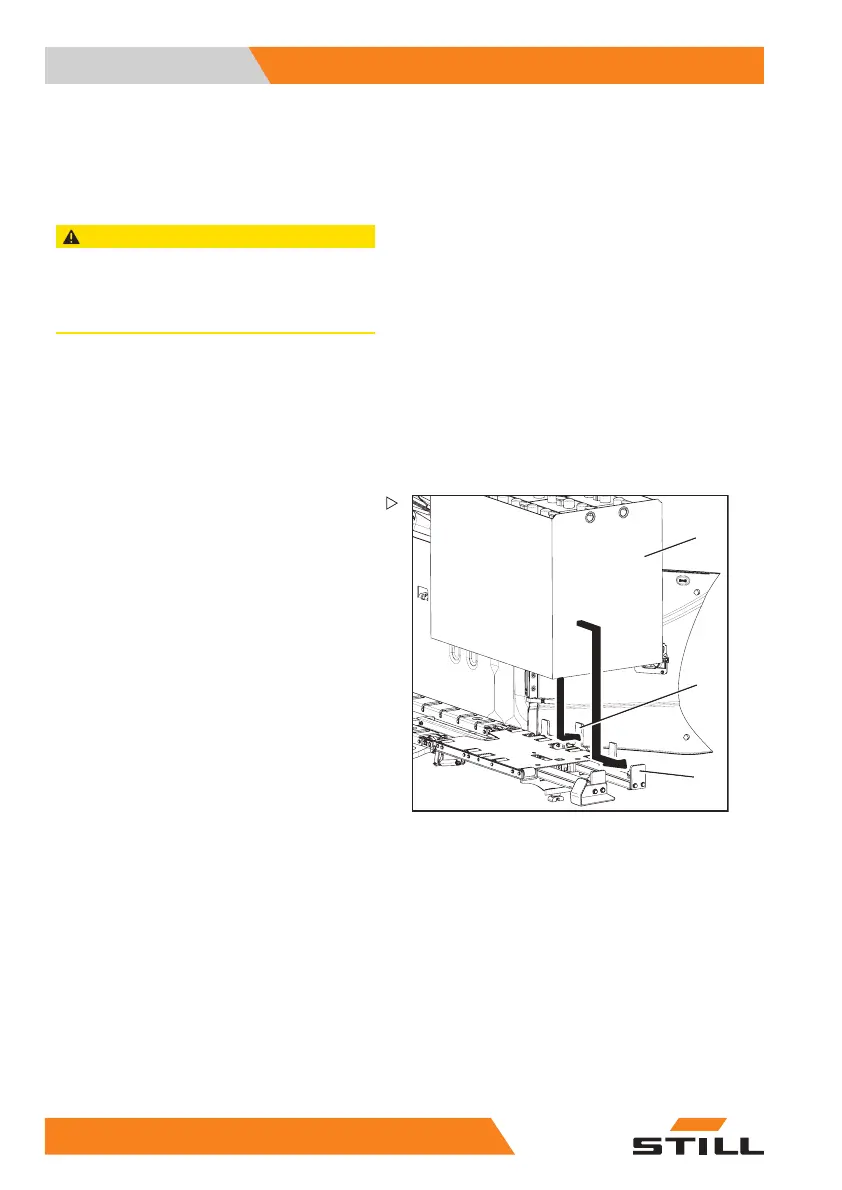

– Using the crane, carefully set down the
battery (9) on to the bridge and push it up
against the stops (5) and (7).
– Release the battery from the lifting gear and
take away the crane.
– Push the battery fully into the battery
compartment of the truck.
26
6 55048011501 EN - 12/2015
