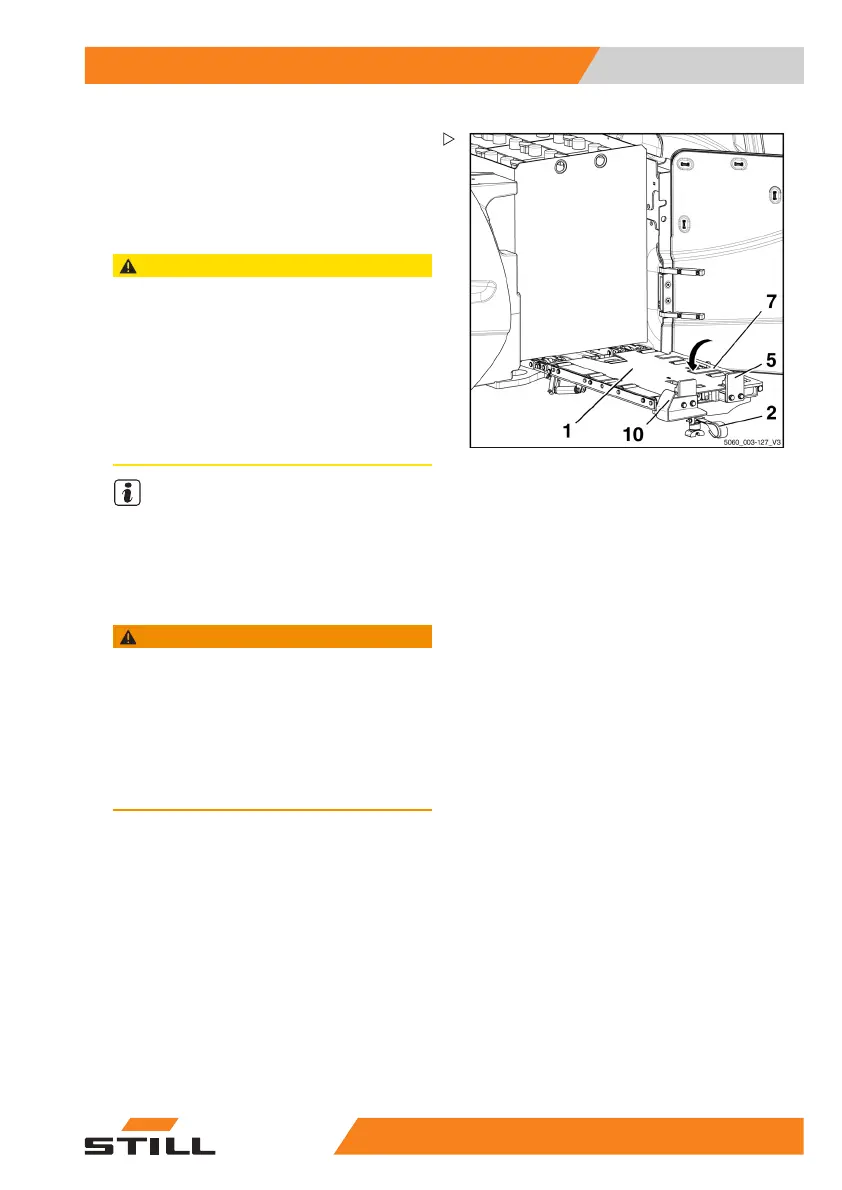

Operation 5
Handling the battery
– Fold down the side battery stop (7).
– Fully insert the battery stop (5) on the cable
guide (10).
– Completely fold up the bridge (
1) at the red
web belt (2).
CAUTION
The battery cable may be damaged by becoming
trapped — there is risk of short circuit due to crus-
hing!
If the battery cable is positioned between the
battery tray and the battery bridge to be folded
up, the battery cable will become trapped. This can
lead to the battery cable or battery male connector
becoming damaged and a short circuit.
– Only fold up the battery bridge when the entire
battery cable is positioned on top of the battery.
NOTE
To fold down the bridge support, the lock
must be released. The lock is released with
a two-handed operation. This protects the
operator against injuries due to an incorrect
sequence of operations.
WARNING
The bridge support can be folded down. During
folding down there is risk of crushing if the correct
sequence of operations is not followed.
– Do not reach into the assembly or locking
mechanisms.
– Hold the bridge support at the red web belt until it
is fully folded down.
– Follow the sequence of operations.
