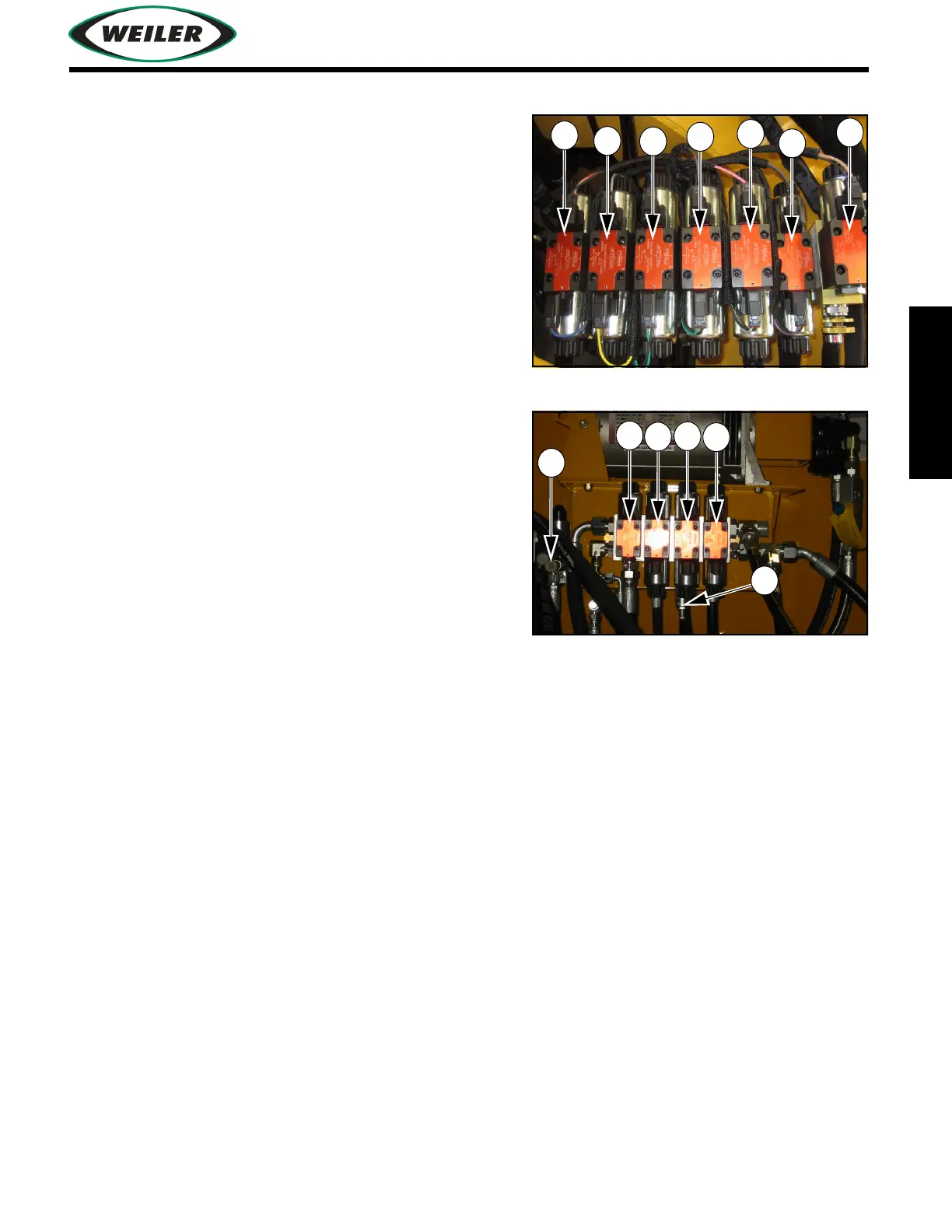

Elevator Windrow Valve
(1) Elevator Hopper Baffle Open/Close Spool
(2) Caster Wheel Height Adjustment - Left
(3) Caster Wheel Height Adjustment - Right
(4) Hopper Clean-out Open/Close Spool
(5) Push Roller Extend/Retract Spool
(6) Hopper Dump Raise/Lower Spool
(7) Vibrator Run Spool
Discharge Conveyor Valve
(1) Auxiliary System Pressure Test Port
Pressure should measure 2800 psi.
(2) Generator Run Spool
(3) Rear Steer Spool (Optional)
(4) Conveyor Raise/Lower Spool
(5) Conveyor Lift Pressure Relief
Adjusts the lift pressure of the conveyor lift
cylinder.
NOTICE:
S/N 1001- 1204: Do not exceed 2500 psi (172 bar). Relief pressure greater than 2500 psi will result in
excessive lift cable forces which may cause cable failure.
S/N 1205 - Up: Do not exceed 2850 psi (196 bar). Relief pressure greater than 2850 psi will result in
excessive lift cable forces which may cause cable failure.
(6) Conveyor Swing Left/Right Spool
