WEILER E2850 REMIXING TRANSFER VEHICLE
2-18

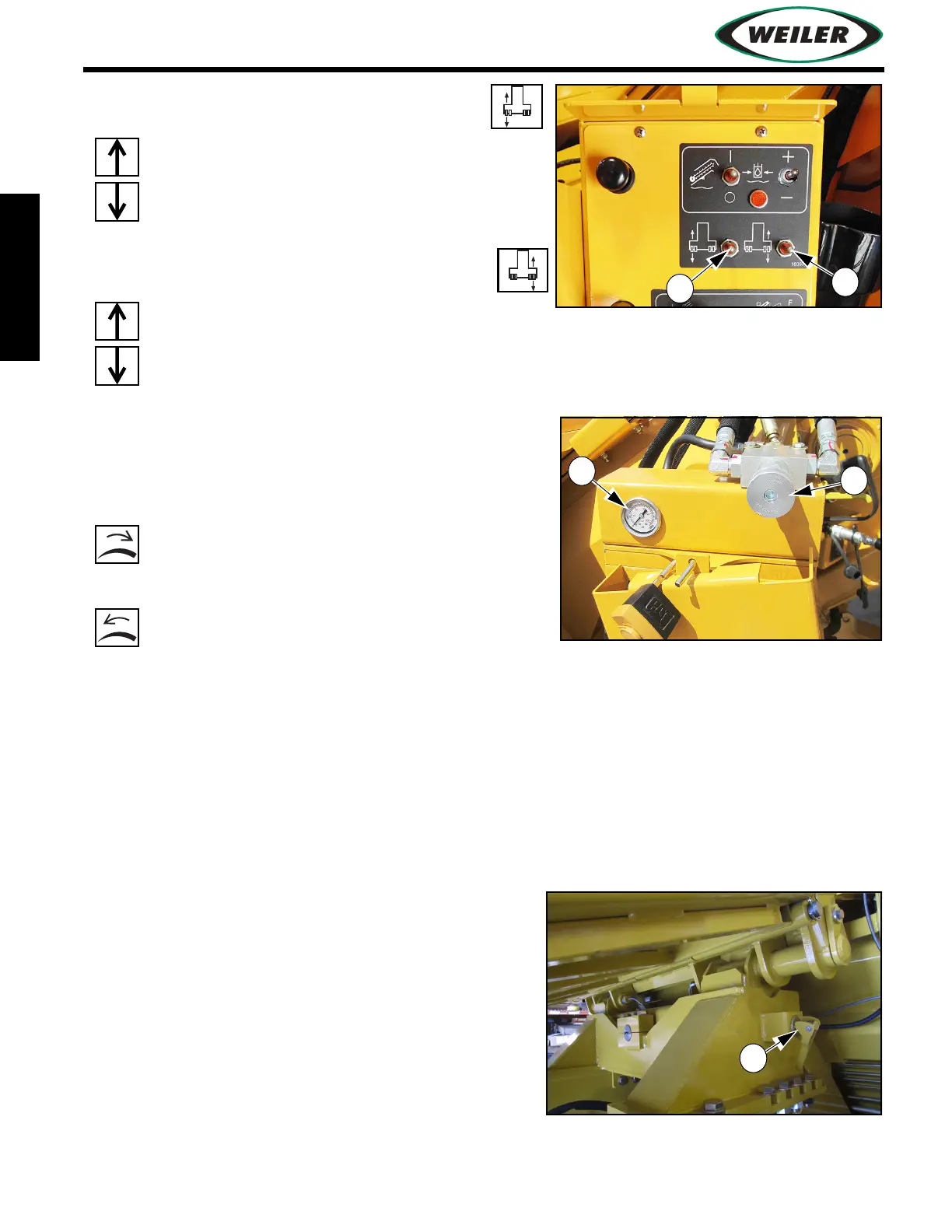

Machine Controls
2
Machine Controls
(3)
Left Caster Wheel Height Control Switch
(4) Right Caster Wheel Height Control Switch
(5) Float Pressure Gauge
Located on left windrow control station only.
(6) Float Pressure Knob
Increasing elevator/windrow head lift cylinder pressure allows windrow head to float up easier.
If asphalt is being left on the ground, decrease pressure.
Decreasing elevator/windrow head lift cylinder pressure allows windrow head to float down with
more force. If the front wheels are spinning and being lifted off the ground, increase pressure.
Refer to
"Dump Hopper Control Stations", page 2-13, for descriptions of the remaining controls on
windrow control station.
Windrow Frame Pivot
(1) Windrow/Elevator Pivot Locks
Rotate pivot lock handles perpendicular to pins as
shown to unlock windrow/elevator.
Rotate pivot lock handles in line with pins to lock
windrow/elevator pivot. Lock pins will engage when
windrow attachment is level with machine.
NOTICE: Engage pivot locks whenever machine is being
roaded or dump hopper attachment is installed.
Push up to raise left caster wheel.
Push down to lower left caster wheel.
Push up to raise right caster wheel.
Push down to lower right caster wheel.
Turn CW to increase elevator/windrow head
lift cylinder pressure - windrow head floats up
easier.
Turn CCW to decrease elevator/windrow head
lift cylinder pressure - windrow head floats
with more down force.
3
4
6
5
1
