Weiler E2850 - Machine - 50 Hour Grease

WEILER E2850 REMIXING TRANSFER VEHICLE
5-41
Maintenance
5
Maintenance Procedures

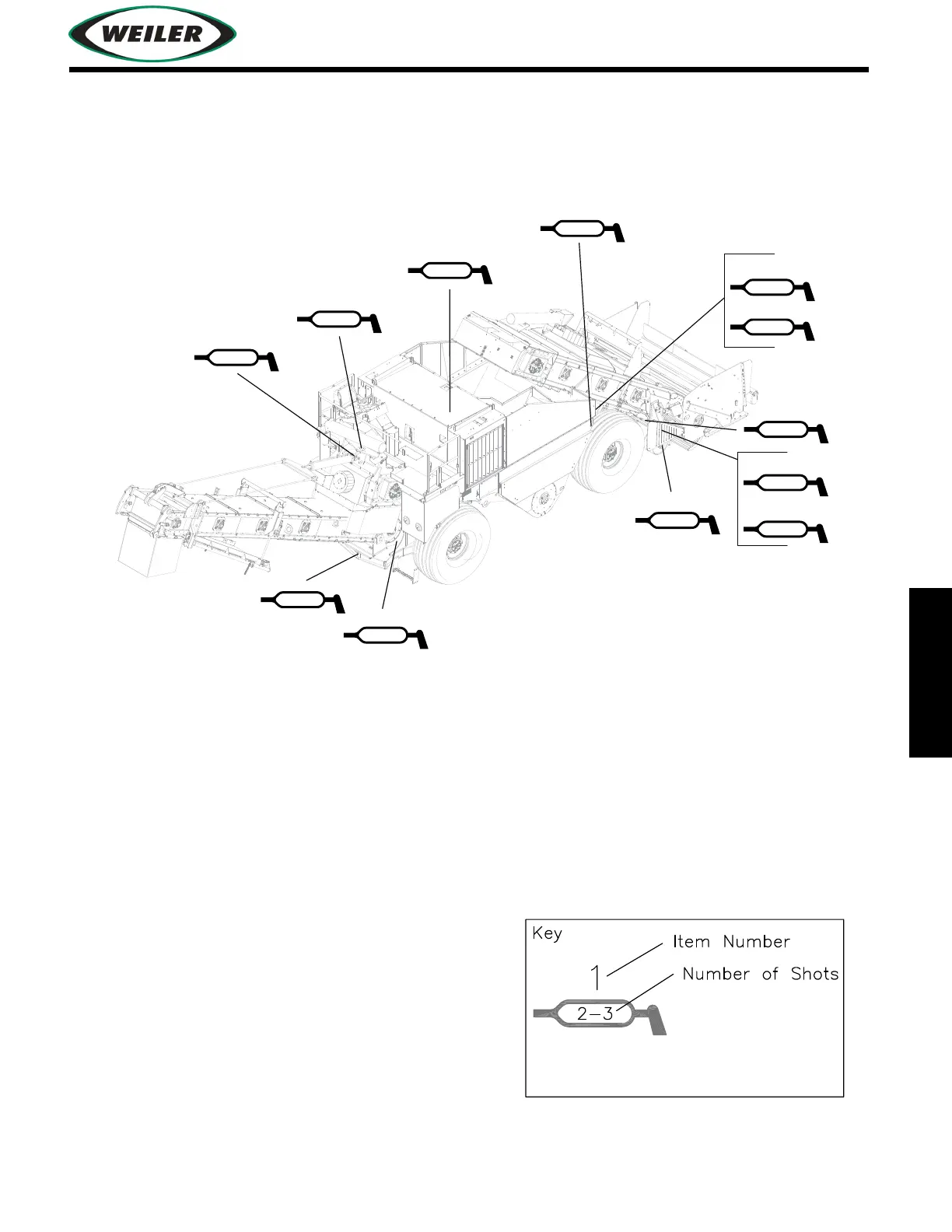

Machine - 50 Hour Grease
Under Hood
5
1*
8*
10
2
4
4
10*
2
7
2
6
2
4
2
9*
4
3*
4
* Indicates grease points are located on both
sides of machine.
2*
11
4
12
2
Item Description Item No.
Caster Sleeves (Windrow Only) . . . . . . . . . . . 1
Caster Wheel Axle . . . . . . . . . . . . . . . . . . . . . . 2
Caster Wheel Pivot . . . . . . . . . . . . . . . . . . . . . 3
Clutch Operating Shaft . . . . . . . . . . . . . . . . . . 4
Discharge Conveyor Frame Pivot Lower . . . . 5
Discharge Conveyor Frame Pivot Upper . . . . 6
Discharge Conveyor Lift Cylinders. . . . . . . . . 7
Discharge Conveyor Swing Cylinders . . . . . . 8
Elevator Frame Pivots. . . . . . . . . . . . . . . . . . . 9
Elevator Lift Cylinders . . . . . . . . . . . . . . . . . . 10
Front Axle Frame Pivot. . . . . . . . . . . . . . . . . . 11
Windrow Pivot (Windrow Only) . . . . . . . . . . . 12
