Weiler E2850 - Discharge Conveyor;Hopper Cleanout Door Controls; Hopper Cleanout Doors Control (Right Side)

WEILER E2850 REMIXING TRANSFER VEHICLE
2-19
Machine Controls
2
Machine Controls

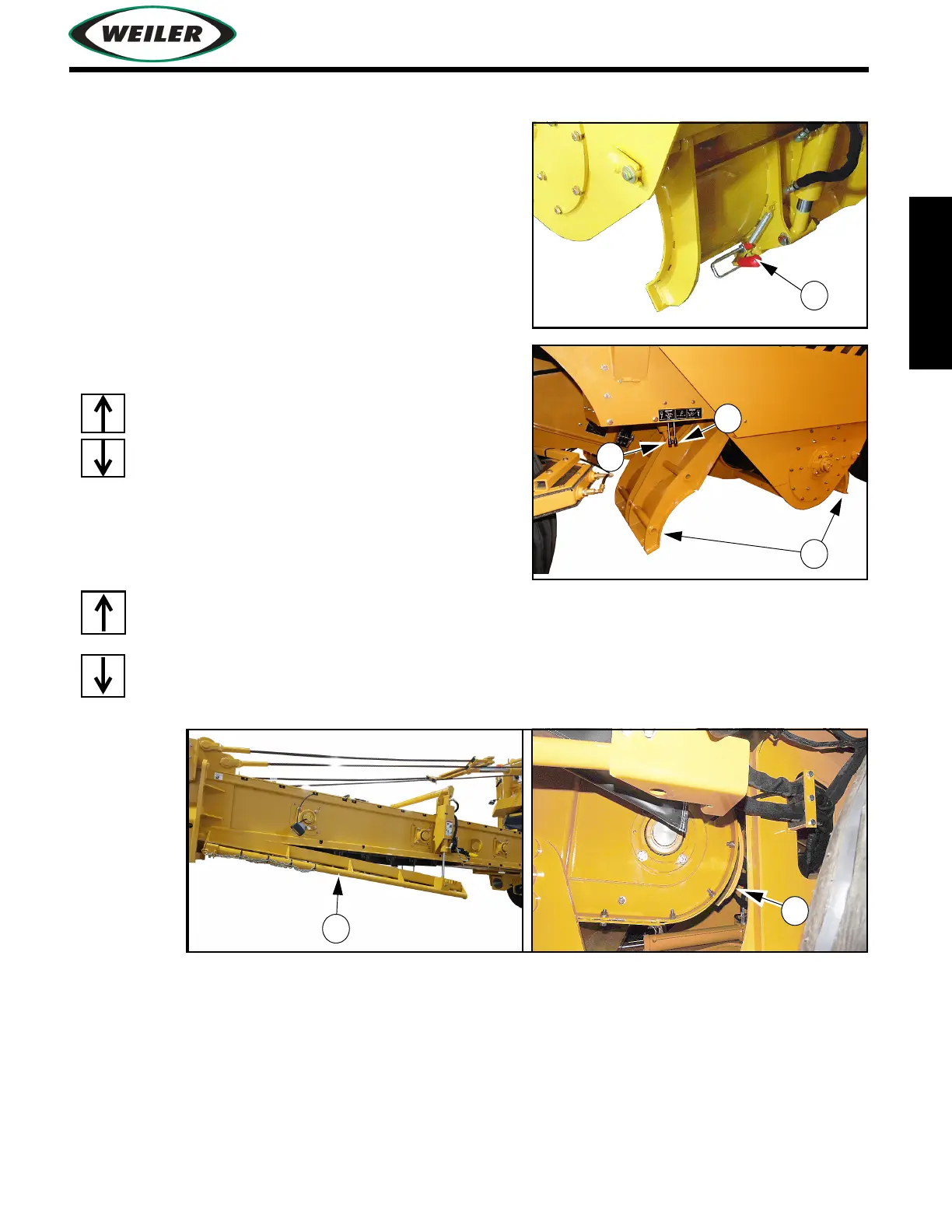

Discharge Conveyor/Hopper Cleanout Door Controls
Unlatch (A) cleanout doors before opening. Latch doors
after closing to prevent doors from drifting open during
operation.
(1) Hopper Cleanout Doors Control (Right Side)
(2) Front and Bottom Discharge Conveyor
Cleanout Doors Control
Push lever to close doors (B).
Pull lever to open doors.
Push lever to close bottom (C) and front (D)
discharge conveyor cleanout doors.
Pull lever to open bottom and front discharge
conveyor cleanout doors.
A
B
1
2
C
D
