WEILER E2850 REMIXING TRANSFER VEHICLE
5-23
Maintenance
5
Maintenance Procedures
Circuit Breakers - Reset
The resettable circuit breaker panels are located on the operator control station adjacent to ignition
switch, and on front of engine compartment cover on left side of operator platform.
If a circuit breaker requires frequent resetting, contact your Weiler dealer. Push the button to reset
each circuit breaker. The button will remain depressed if circuit is working properly. Check the
appropriate electrical circuit if button does not stay reset.

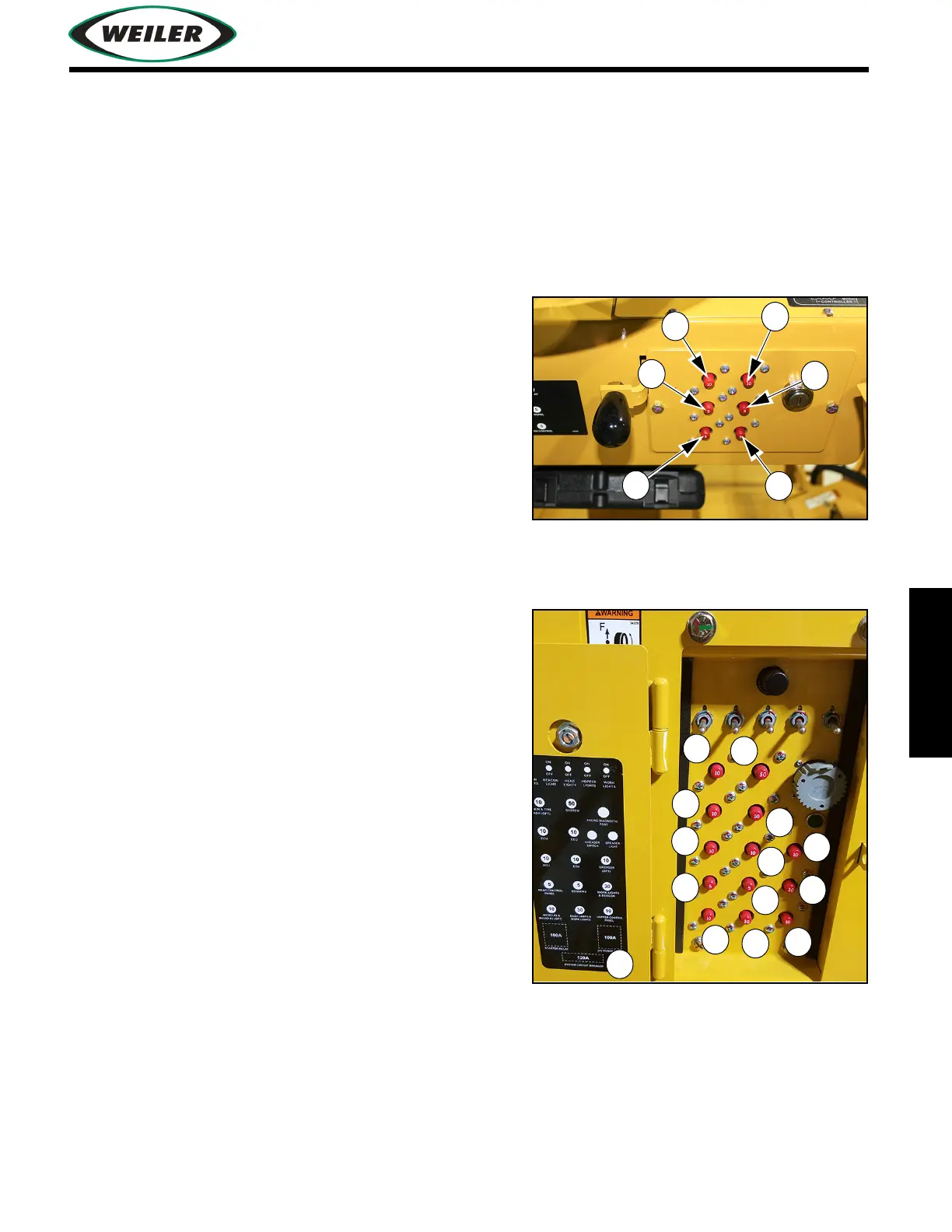

Operator Control Station Circuit Breaker Panel
(1) Microcontroller
(2) Ignition Switch
(3) Camera
(4) Display
(5) Propel
(6) Right Control Panel
Operator Platform Left Side Breaker Panel
Machine Serial Numbers up to E2850-1141
(1) Open
(2) System
(3) Engine ECM
(4) Engine ECM
(5) Engine ECM
(6) Engine ECM
(7) Greaser (Option)
(8) Rear Control Panel
(9) Senders
(10) Work Lights
(11) Beacon
(12) Dash Lamps and Work Lights
(13) Hopper Control Panel
(14) System Power
2
1
4
5
3
6
4
2
1
3
5
6
7
8
9
10
11
12
13
14
