Weiler E2850 - Distance from Paver Control Setup (Optional)

WEILER E2850 REMIXING TRANSFER VEHICLE
3-29
Operating Instructions
3
Preparing Machine

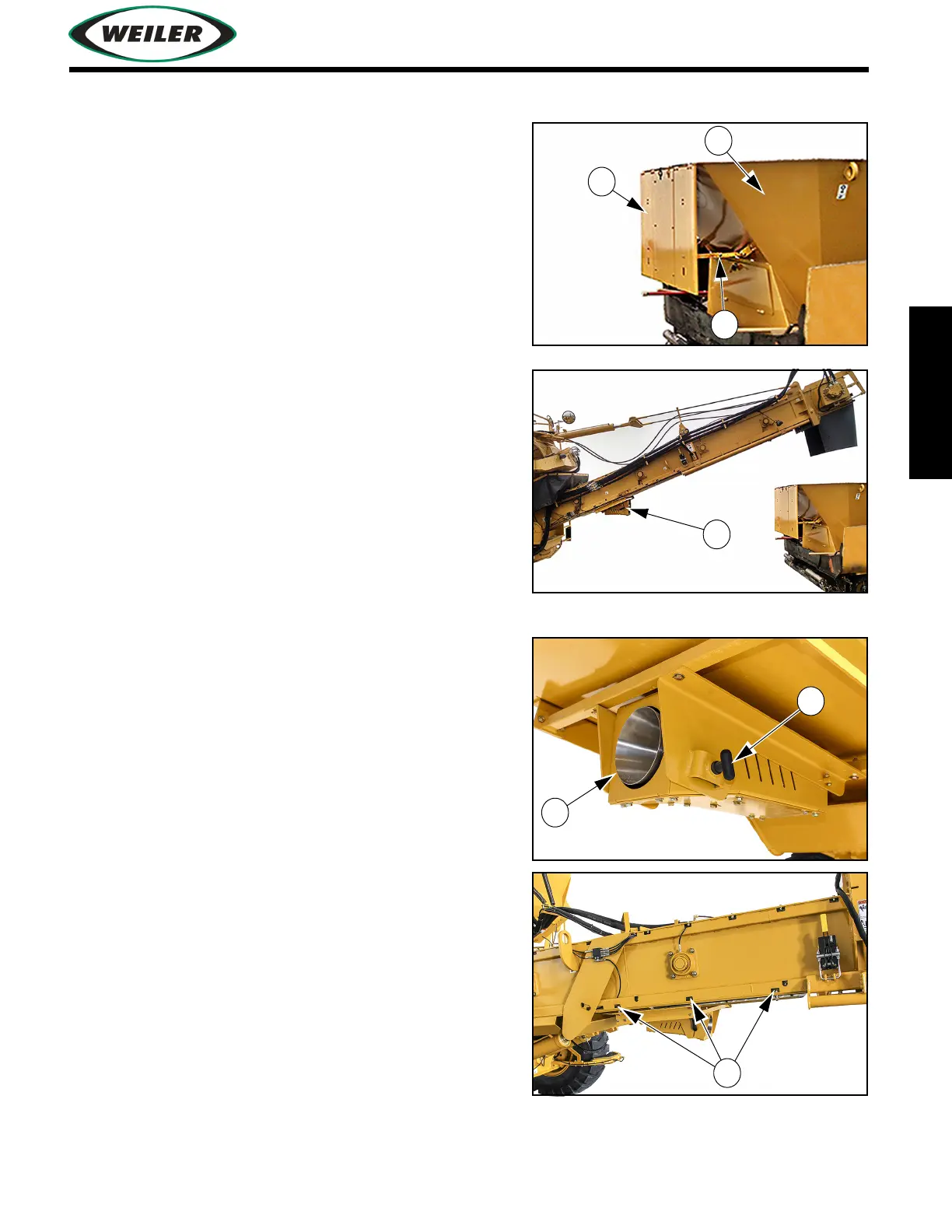

Distance From Paver Control Setup (Optional)
1. Attach Distance From Paver Control Target (1) to
hopper insert (2) on paver.
2. Verify target is perpendicular to ground surface
using adjustment bracket (3).
3. Verify Distance From Paver Control Sensor (4) is
free of debris.
4. Position transfer vehicle at desired paving position
directly in front of paver.
5. With discharge conveyor set at correct height, use
adjuster (5) to ensure Distance From Paver Control
Sensor (4) is perpendicular to and directed toward
the center of Distance From Paver Control Target
(1).
Sensor can be mounted in one of three positions (6)
on discharge conveyor.
1
3
2
4
5
4
6
