WEILER E2850 REMIXING TRANSFER VEHICLE
5-52
Maintenance
5
Maintenance Procedures

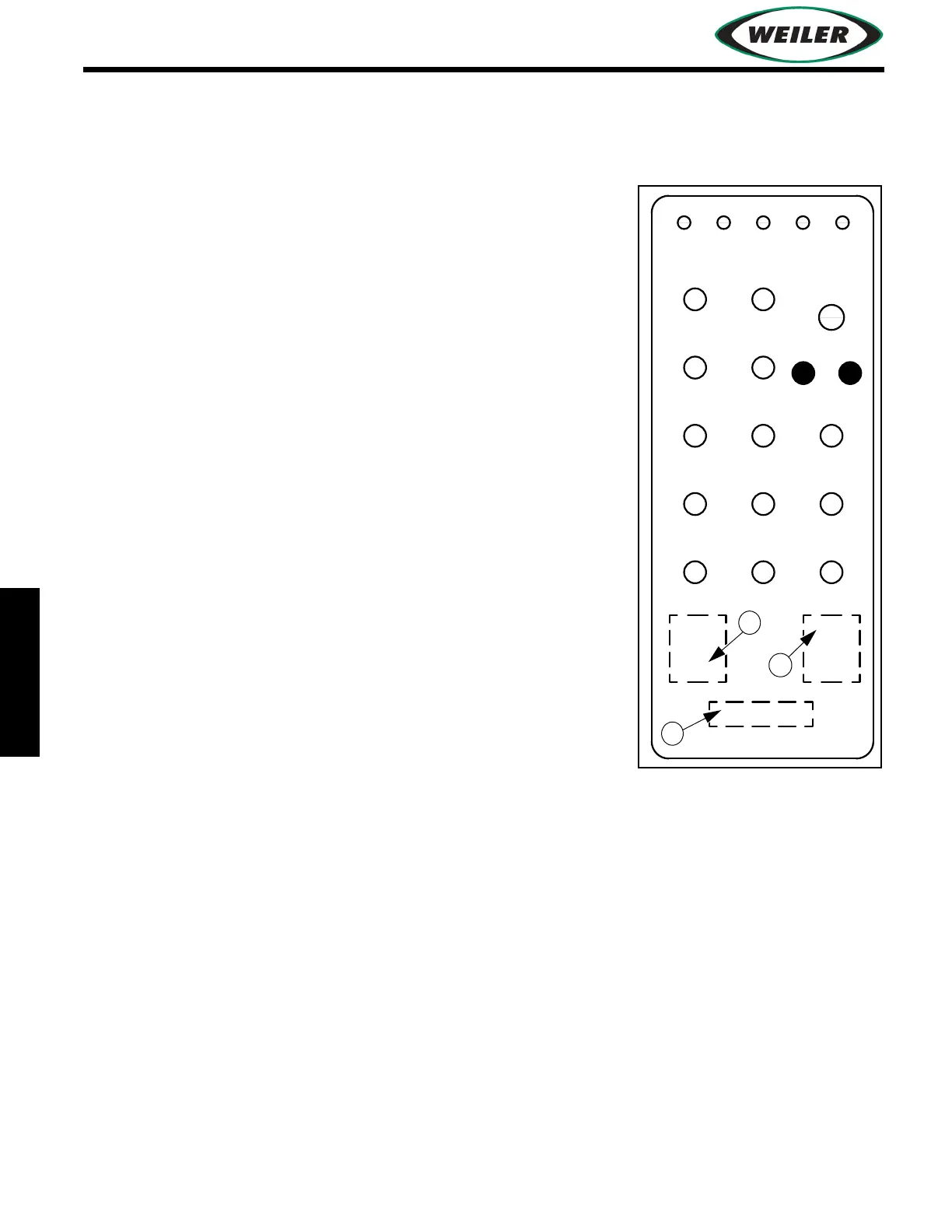

Relays - Check
Machines #1183 and up will have 130A relays for main power (two) and starter. Relays are located on
or behind engine control panel and dash panel.
(1) 100A/130A Starter Relay
(2) 100A/130A 24V Power Relay
(3) 120A System Circuit Breaker
Safety Signs - Check/Clean
To ensure that all safety signs remain in place and in good condition:
•Keep safety signs clean. Use soap and water - not mineral spirits, abrasive cleaners, or other
similar cleaners that will damage the sign.
•Replace any damaged or missing safety signs. When attaching new safety signs, the temperature
of the mounting surface must be at least 40°F (5°C). Mounting surface must be clean and dry.
•When replacing a machine component with a safety sign attached, replace the safety sign also.
Replacement safety signs can be purchased from your Weiler dealer.
SYSTEM CIRCUIT BREAKER
37555
24V POWER RELAY
120A
100A
WORK
LIGHTS
HOPPER
LIGHTS
HEAD
LIGHTS
DASH
LIGHTS
BEACON
LIGHT
10
REAR CONTROL
PANEL
MICRO #2 &
MICRO #3 (OPT)
10
5
ECU
ECU
10
CHAIN & TIRE
WASH (OPT)
10
WORK LIGHTS
& BEACON
HOPPER CONTROL
PANEL
DASH LAMPS &
WORK LIGHTS
30 10
5
SENDERS
ECU
30
ENGINE DIAGNOSTIC
PORT
ECU
10
50
SYSTEM
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
10
GREASER
(OPT)
GREASER
SWITCH
GREASER
LIGHT
STARTER RELAY
100A
10
3
2
1
