WEILER E2850 REMIXING TRANSFER VEHICLE
C-61
Schematics

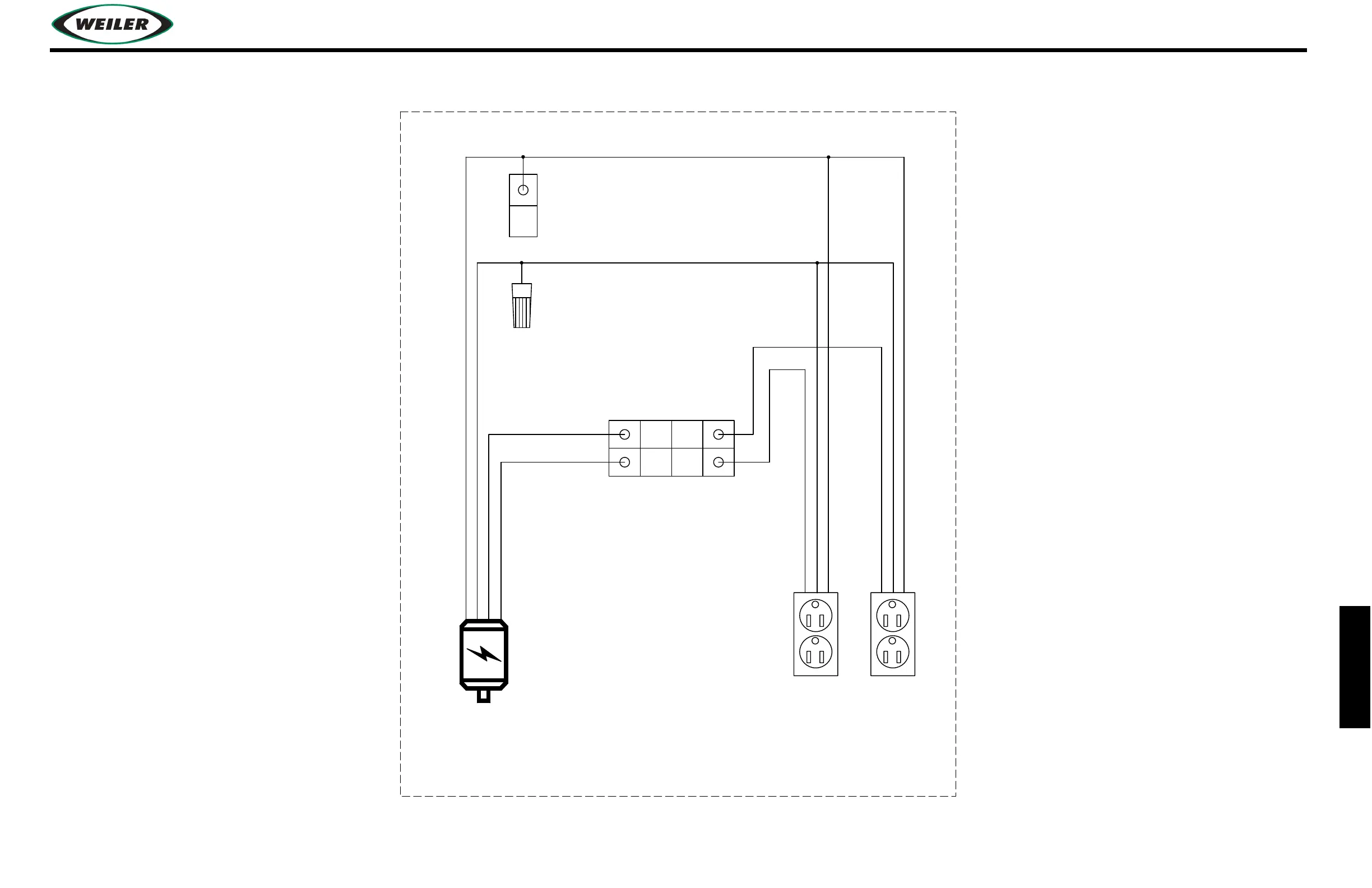

ELECTRICAL SCHEMATIC – S/N 1154–UP
21587
PLATFORM 22064
120V GFI OUTLET
FRONT ELEVATOR 22064
120V GFI OUTLET
10kw GENERATOR
w/P2 CAPACITOR
10GA GREEN WIRE, 600 VOLT, STRANDED
10GA BLACK WIRE, 600 VOLT, STRANDED
10GA WHITE WIRE, 600 VOLT, STRANDED
10GA GREEN WIRE, 600 VOLT, STRANDED
10GA WHITE WIRE, 600 VOLT, STRANDED
10GA BLACK WIRE, 600 VOLT, STRANDED
10GA-BK TO THE GEN.
240V GENERATOR
BREAKER TYPE QOU220
20A 13793
NEUTRAL
SET SCREW
9487
10GA-BK TO THE GEN.
15165
GROUND LUG
GENERATOR w/2 OUTLETS (OPT)
