WEILER E2850 REMIXING TRANSFER VEHICLE
5-15
Maintenance
5
Maintenance Procedures

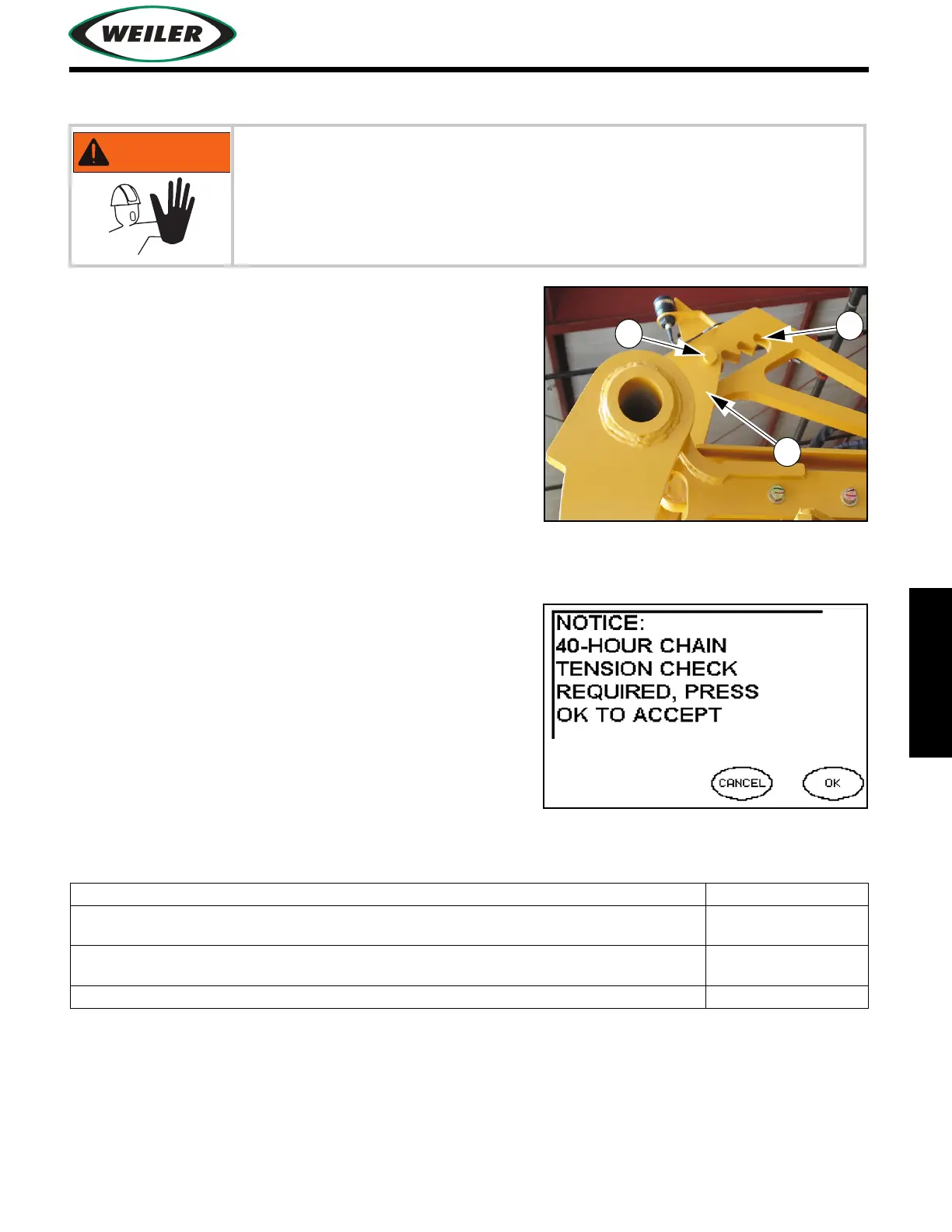

Chain Tension - Discharge Conveyor Auto-Adjust
The auto-adjust cycle automatically tensions the discharge
conveyor chain tension by actuating chain tension
cylinders on the conveyor. As the cylinders extend, torque
arm (1) near the headshaft moves pin (2) within the
ratchet (3). The pin will engage the appropriate notch.
Chain wear will cause the pin to engage the last notch. At
this point if chain sag measures out of range, chain
requires service such as removal of a link or replacement
by a Weiler dealer. Measure chain sag monthly or every
150 service hours. Refer to
"Chain Tension - Manual
Check/Adjust", page 5-17, for procedures.
40-Hour Auto-Adjust Cycle
Every 40 service hours, upon machine start-up the
operator is prompted to start the auto-adjust cycle.
In order for the auto-adjust cycle to run:
• discharge conveyor must be running
• discharge conveyor hydraulic pressure must be <
1500 psi (103.4 bar)
Pressing “Cancel” on any step will cancel the chain tension
cycle until machine is turned off and re-started. Press OK
to proceed to next step.
Follow screen prompts to complete the chain tension process:
Runover possible. Contact with moving parts can cut or crush.
Make sure no one is working on, underneath, or close to machine before
starting engine or moving machine. Ensure area is free of personnel. Keep
spectators away.
Screen Prompt Action
TURN DISCHARGE CONVEYOR ON. PRESS OK TO VERIFY THAT THERE IS NO
MATERIAL IN CONVEYOR. DO NOT TENSION DURING PAVING.
Press OK
DISCHARGE CONVEYOR HYDRAULIC CHAIN TENSIONING IN PROCESS, LEAVE
DISCHARGE CONVEYOR ON
Wait
DISCHARGE CONVEYOR CHAIN TENSION SUCCESSFUL, PRESS OK
Press OK
